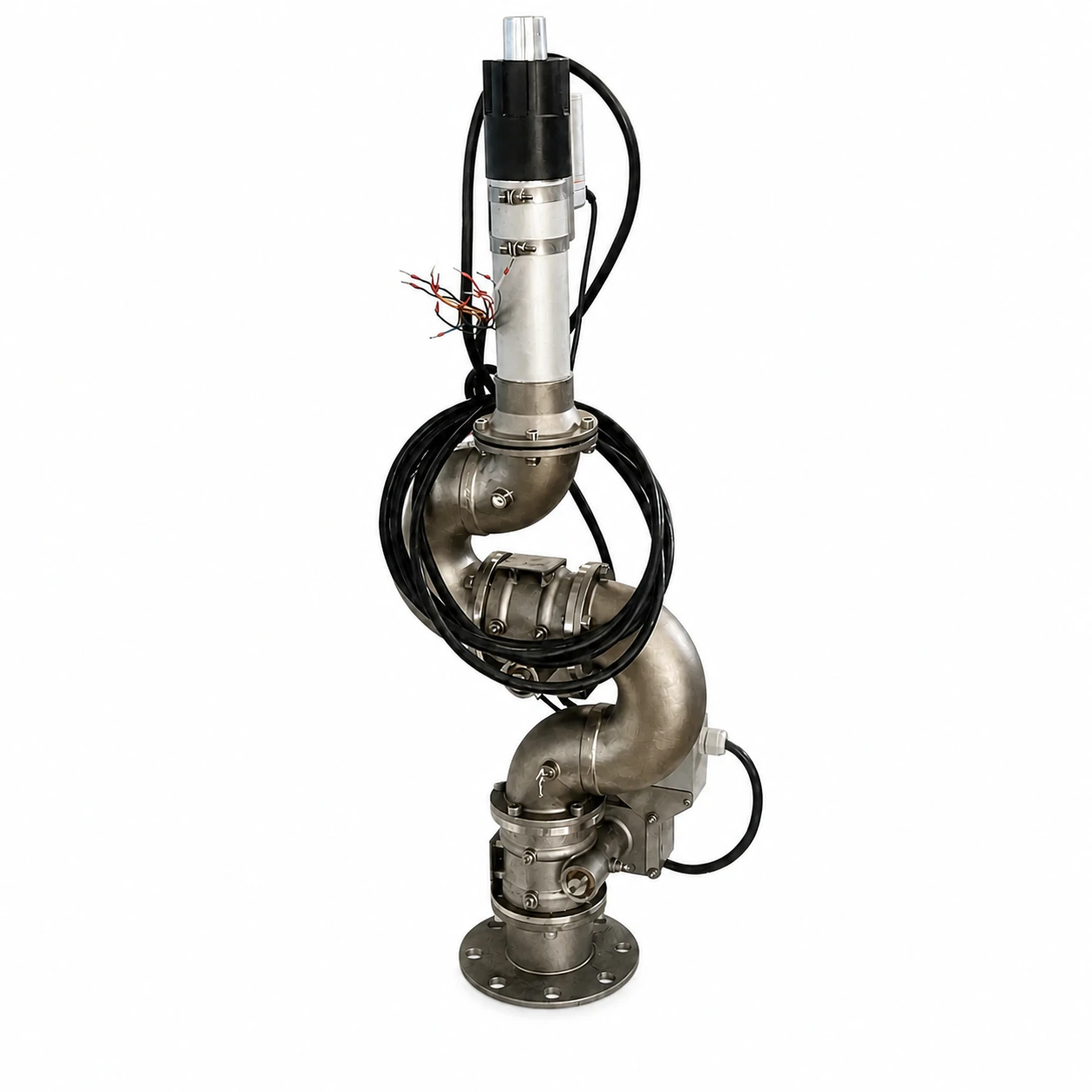

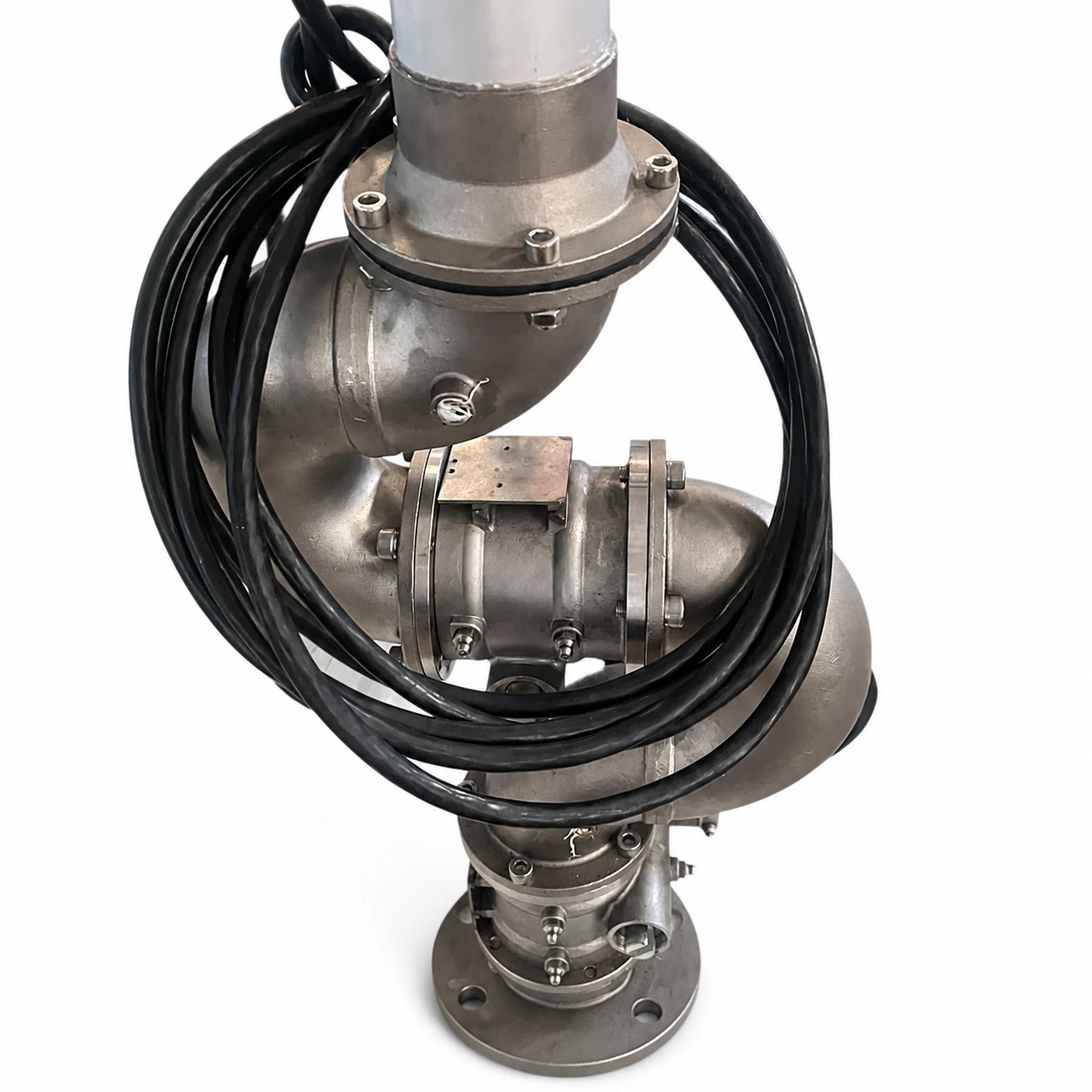

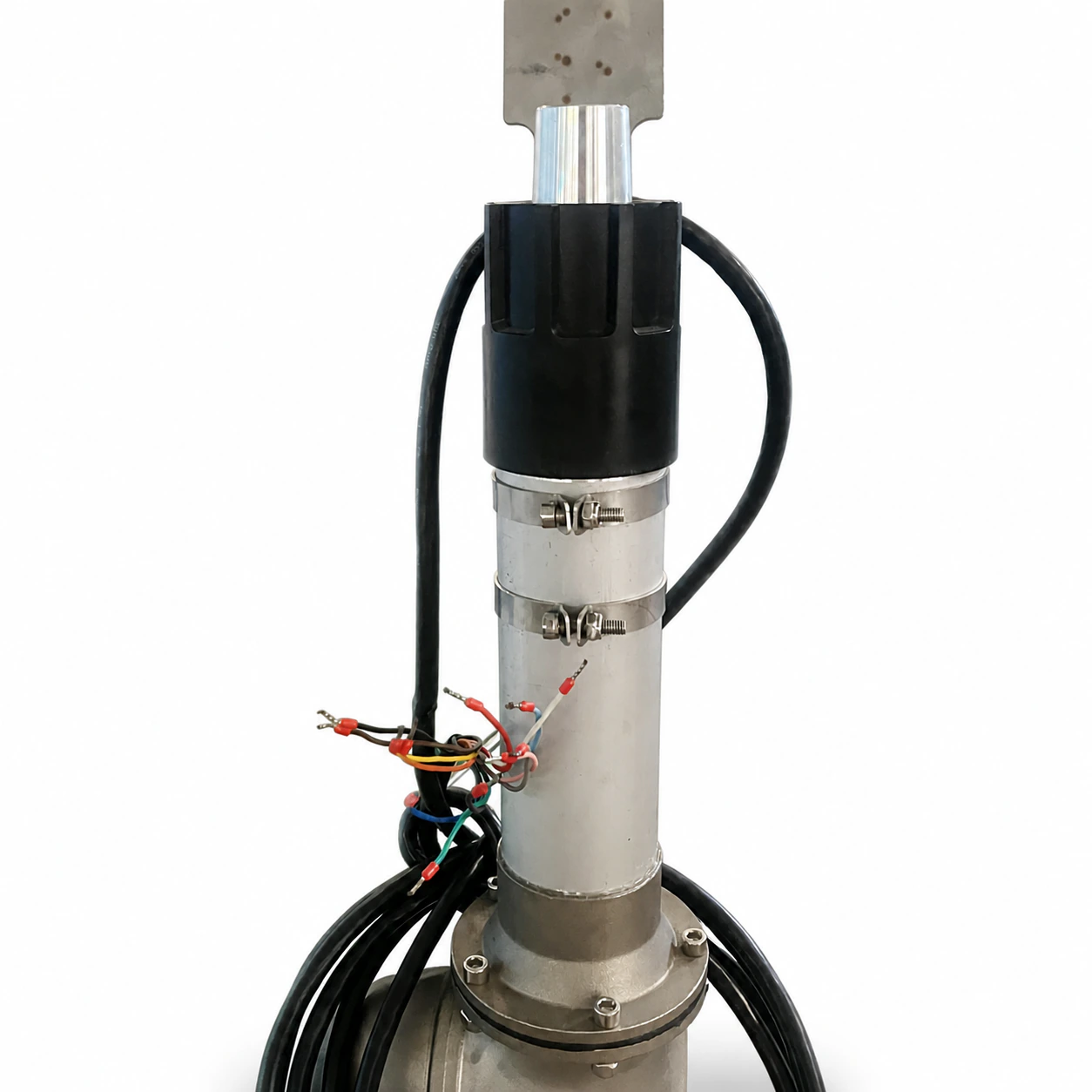

DLZ-50 Remote-Control Water Gun
Wireless remote-control intelligent water gun for dust suppression and industrial water delivery.
High-resolution white-background galleryCurrent Model Specifications
DLZ-50
Specifications and packaging data update when you switch models.
- Connection
- 58 mm inlet flange (54 mm water inlet)
- Nozzle Diameter
- 42 mm
- Working Pressure
- 2-8 bar
- Flow Rate
- 25-65 m³/h
- Throw Radius
- 20-45 m
- Main Material
- Stainless steel body with No. 45 steel gears
- Package Dimensions
- To be confirmed
- Gross Weight per Carton
- To be confirmed
- Spray Pattern
- Mist to long-range jet adjustable
- Rotation Range
- 360° horizontal and vertical rotation
- Power Supply
- 24 V DC / 220 V AC
- Operating Current
- 1.2-1.9 A
- Product Weight
- 24 kg
- Product Dimensions
- 69 × 24 × 18 cm
- Drive Type
- Precision waterproof motor and geared drive
- Control & Connection
- Wireless remote control with quick-connect waterproof plugs
Missing information is shown as “To be confirmed”; zero values and estimates are never displayed.
SELECT A MODEL AND ORDER
DLZ-50 Remote-Control Water Gun
Model / Configuration 1 options
Prices exclude international freight, duties, taxes and payment fees.
FUMAO confirms international freight first, then sends a WorldTrade payment link for the approved total.
PACKAGING & LOGISTICS
DLZ-50 Shipping Reference
Packaging information updates with the selected model. Unconfirmed data is shown as “To be confirmed”.
- Carton Dimensions
- To be confirmed
- Gross Weight per Carton
- To be confirmed
- Units per Carton
- To be confirmed
- Reference Lead Time
- 20 days
- Availability
- Made to Order
- Trade Term
- EXW China
PUMP & PIPELINE MATCHING GUIDE
Preliminary Selection for One Pump and One Sprinkler
Reference conditions: 380V / 50Hz / three-phase power, 3 m suction lift, 5 m suction pipe, 50 m discharge pipe, and sprinkler positioned 5 m above the pump.
No public standard one-pump/one-sprinkler selection data is currently available for this accessory or equipment configuration.
This is preliminary guidance only. Recalculate whenever pipe length, elevation difference, suction lift or nozzle size changes. Before purchase, verify the actual Q-H curve, efficiency, NPSH, preferred operating range, shut-off pressure and water-hammer risk.
PDF DOWNLOADS
DLZ-50 Technical Reference Files
Product performance is governed by the FUMAO English sprinkler catalog. Pump data is for preliminary selection under the stated reference conditions only.
