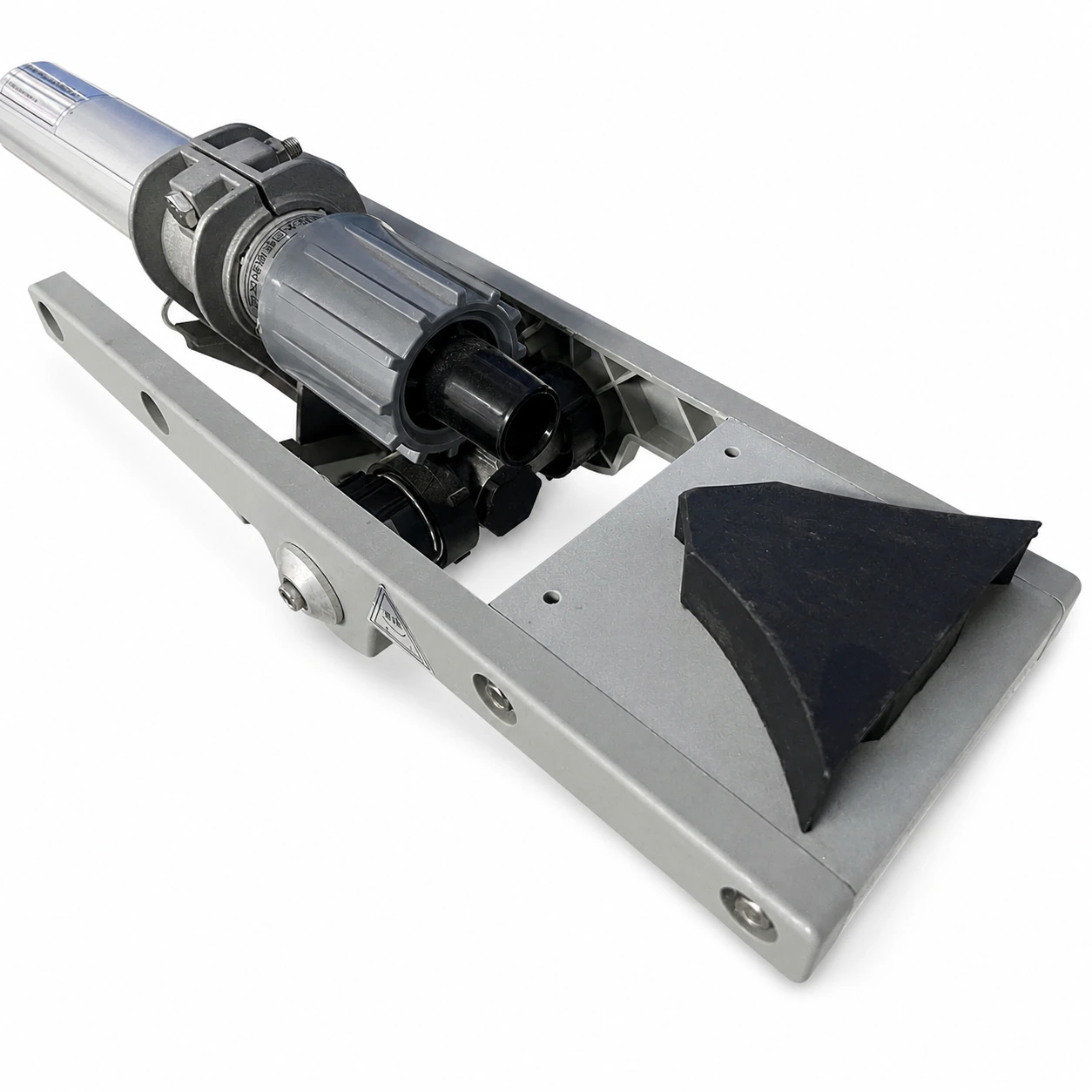

FS50 Vertical Swing-Arm Sprinkler Series
Vertical swing-arm sprinkler configurations with 24° and 43° trajectories, flange and threaded alternatives for irrigation layouts.
High-resolution white-background galleryCurrent Model Specifications
FS50-24°
Specifications and packaging data update when you switch models.
- Connection
- 2 in flange
- Nozzle Diameter
- 16/18/20/22/24 mm
- Working Pressure
- 0.2-0.7 MPa
- Flow Rate
- 14.2-58.8 m³/h
- Throw Radius
- 27-55.2 m
- Main Material
- Aluminum alloy, copper, stainless steel and nylon
- Package Dimensions
- 85 × 22.2 × 27 cm
- Gross Weight per Carton
- 8.1 kg
- Spray Pattern
- 24°
- Rotation Range
- 0-360° adjustable
Missing information is shown as “To be confirmed”; zero values and estimates are never displayed.
SELECT A MODEL AND ORDER
FS50 Vertical Swing-Arm Sprinkler Series
Model / Configuration 6 options
Prices exclude international freight, duties, taxes and payment fees.
FUMAO confirms international freight first, then sends a WorldTrade payment link for the approved total.
PACKAGING & LOGISTICS
FS50-24° Shipping Reference
Packaging information updates with the selected model. Unconfirmed data is shown as “To be confirmed”.
- Carton Dimensions
- 85 × 22.2 × 27 cm
- Gross Weight per Carton
- 8.1 kg
- Units per Carton
- 1 units
- Reference Lead Time
- 20 days
- Availability
- Made to Order
- Trade Term
- EXW China
PUMP & PIPELINE MATCHING GUIDE
Preliminary Selection for One Pump and One Sprinkler
Reference conditions: 380V / 50Hz / three-phase power, 3 m suction lift, 5 m suction pipe, 50 m discharge pipe, and sprinkler positioned 5 m above the pump.
- Hydraulic Group
- G01
- Standard Duty Point
- 20 mm / 0.5 MPa / 35.0 m³/h
- Recommended Pump Flow
- 38.5 m³/h
- Recommended Head
- 70 m
- Motor Power
- 15 kW
- Pump Inlet / Outlet
- DN100 / DN80
- Discharge Pipe
- DN80 high-pressure TPU layflat hose PN16
- Suction Pipe
- DN100 wire-reinforced PVC suction hose
- Pump Type
- Horizontal end-suction centrifugal pump
This is preliminary guidance only. Recalculate whenever pipe length, elevation difference, suction lift or nozzle size changes. Before purchase, verify the actual Q-H curve, efficiency, NPSH, preferred operating range, shut-off pressure and water-hammer risk.
PDF DOWNLOADS
FS50-24° Technical Reference Files
Product performance is governed by the FUMAO English sprinkler catalog. Pump data is for preliminary selection under the stated reference conditions only.
