PRODUCT CATEGORY

Sprinkler Irrigation Series

SUB-SERIES 01 · SPRINKLER HEADS

Sprinkler Heads Series

SPRINKLER HEAD RANGE

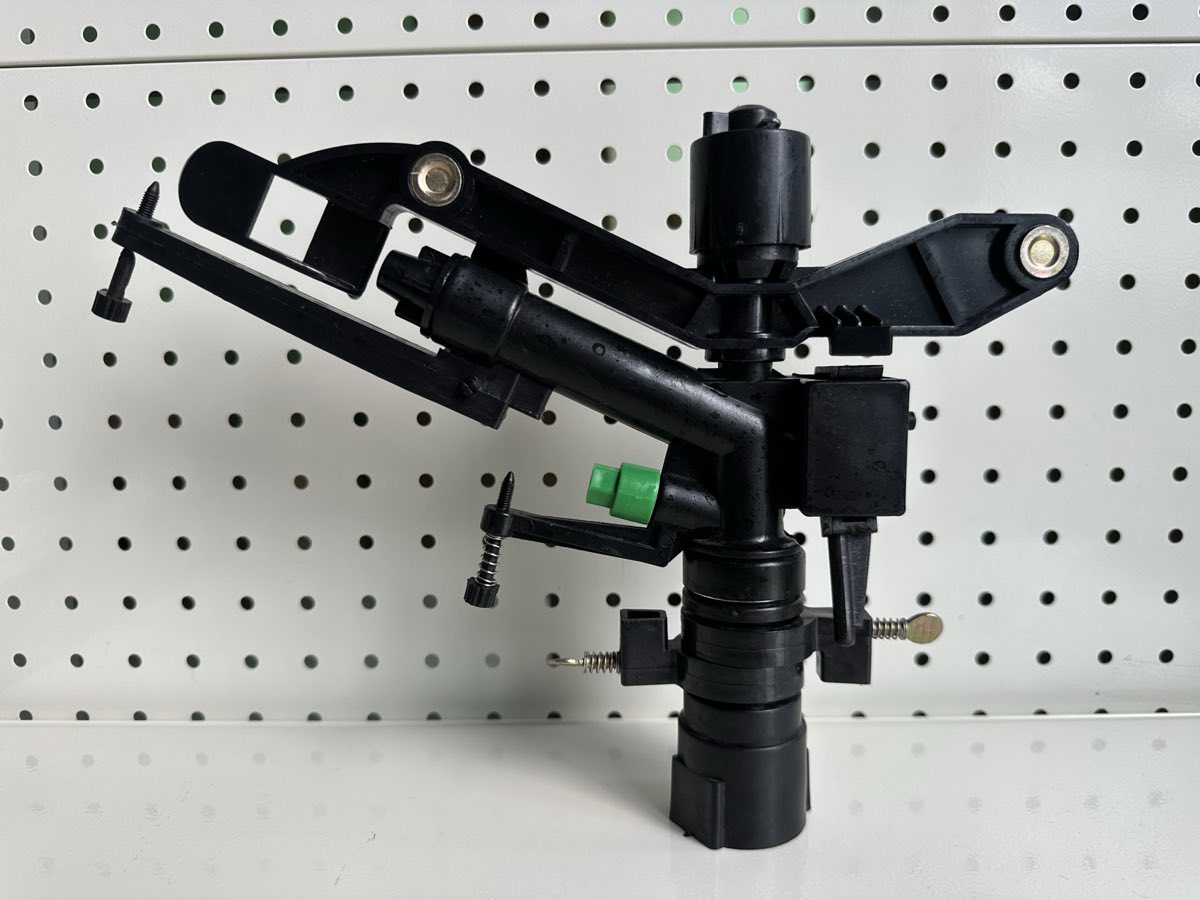

Directional Impact Sprinkler01

定向喷头

Directional Impact Sprinkler

Spray diameter
15–25 m
Working pressure
2.5–4.5 kg
Flow rate
4–6 m³/h
Material
POM
Connection
32 mm female thread
Product details

Designed for field-edge irrigation, this high-flow directional sprinkler keeps water inside the intended area while allowing flexible range and angle adjustment.

Core featureHigh flow output with adjustable spray range and direction; designed for field boundaries.
ApplicationField-edge irrigation and directional water delivery away from non-crop areas.

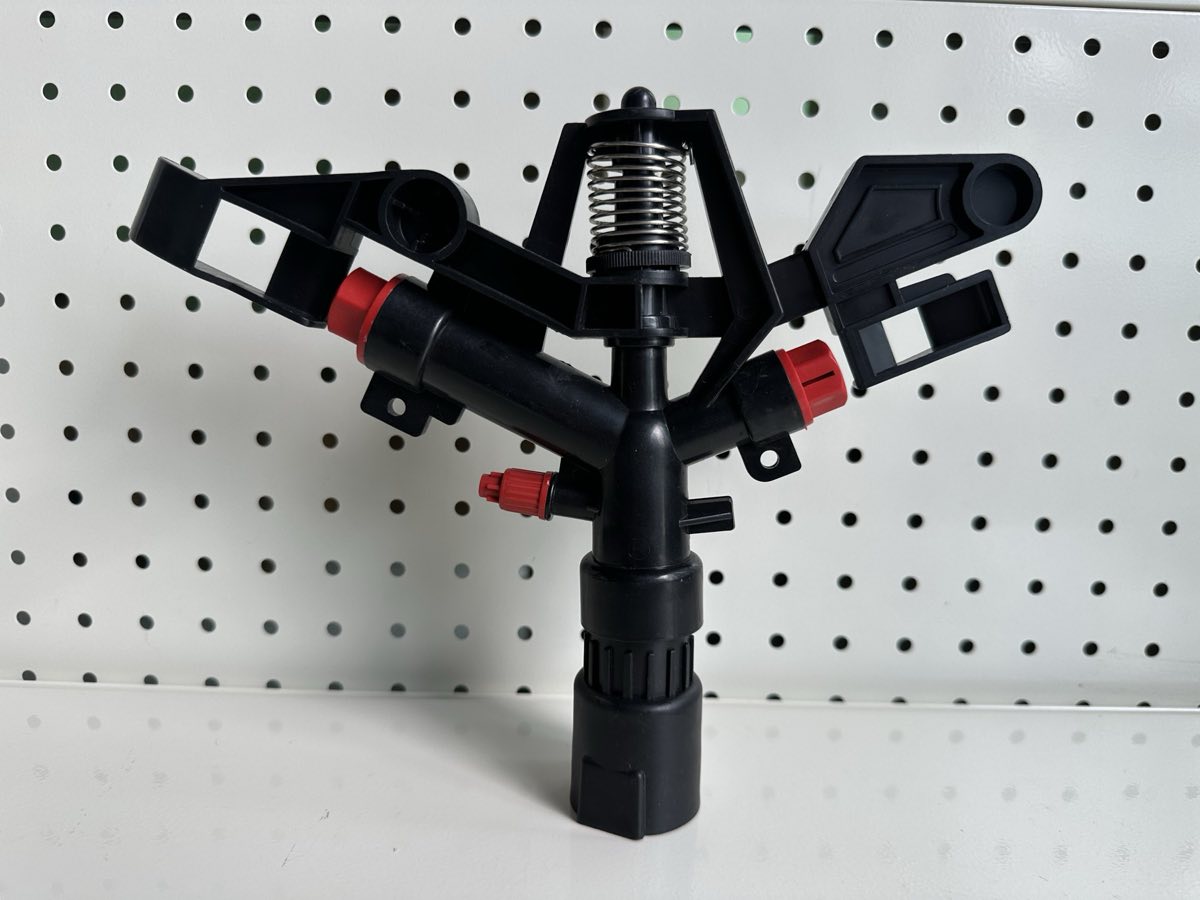

Red & Black Four-Nozzle Impact Sprinkler02

红黑四嘴喷头

Red & Black Four-Nozzle Impact Sprinkler

Spray diameter
15–20 m
Working pressure
2.5–4.5 kg
Flow rate
4–6 m³/h
Material
POM
Connection
32 mm female thread
Product details

A broad-coverage ABS impact sprinkler for dependable field irrigation. Four outlets provide stable water distribution across large planting areas.

Core featureFour-nozzle impact design from the interchangeable 3/4/6-nozzle family.
ApplicationWheat, corn and other field crops without ultra-fine atomization requirements.

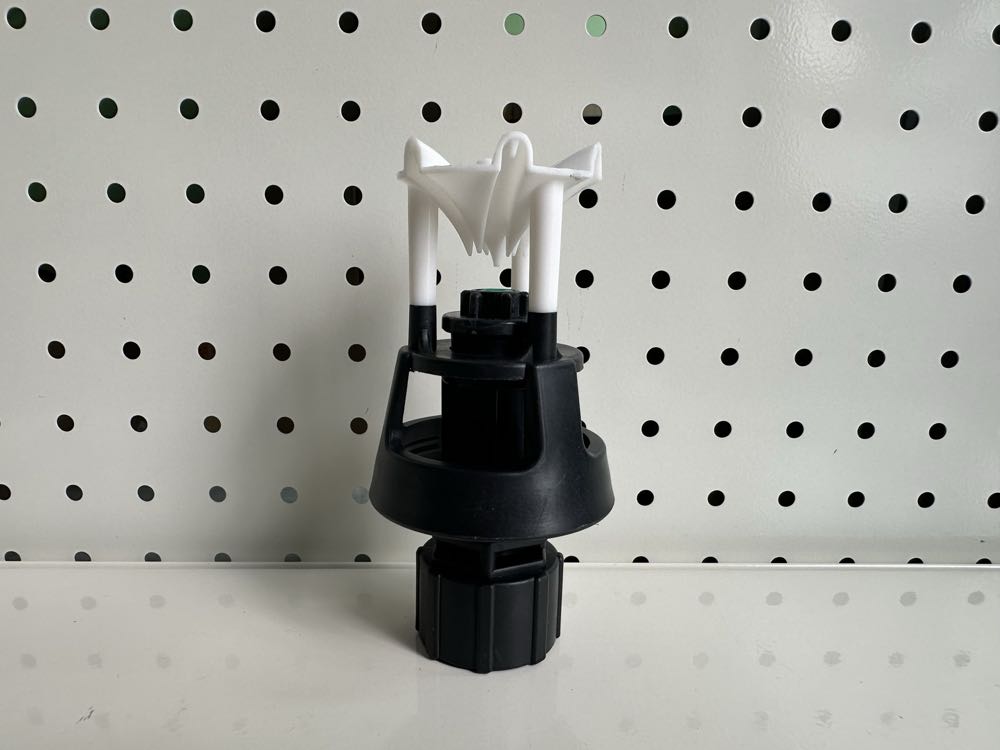

ABS Anti-Sand Sprinkler03

ABS防沙喷头

ABS Anti-Sand Sprinkler

Spray diameter
10–12 m
Working pressure
2–2.5 kg
Flow rate
1 m³/h
Material
POM / ABS core
Connection
32 mm female thread
Product details

A compact anti-sand sprinkler that delivers reliable coverage in challenging field conditions while reducing the effect of dust and sediment.

Core featureAnti-sand structure developed for dusty and sediment-prone environments.
ApplicationGarlic, medicinal herbs and vegetable production.

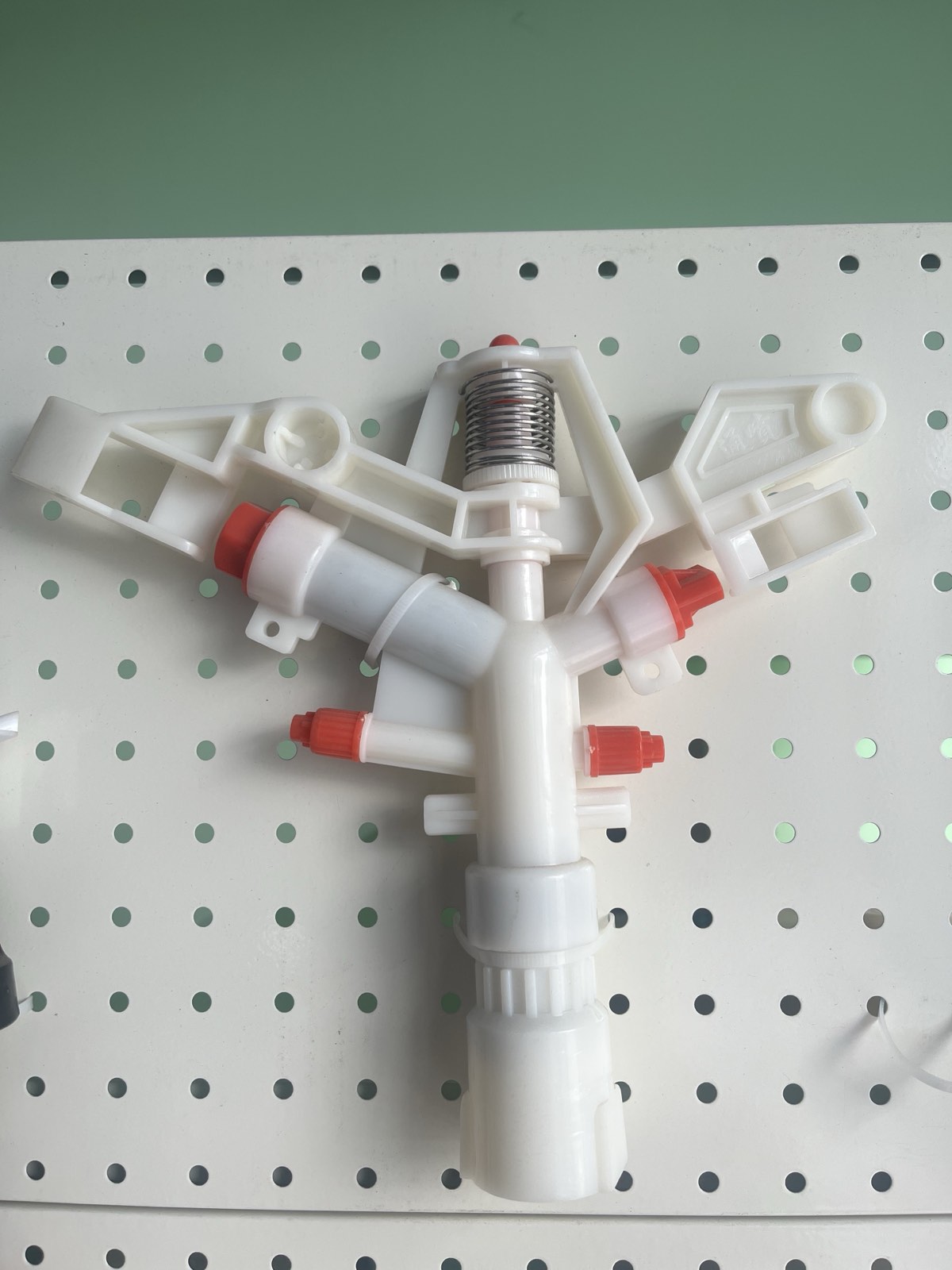

White Six-Nozzle Impact Sprinkler04

白六嘴喷头

White Six-Nozzle Impact Sprinkler

Spray diameter
18–20 m
Working pressure
1.5 kg
Flow rate
2 m³/h
Material
Virgin ABS
Connection
32 mm female thread
Product details

The six-nozzle configuration extends the impact sprinkler family for broad, stable coverage across conventional field irrigation systems.

Core featureSix-nozzle model from the interchangeable 3/4/6-nozzle impact sprinkler family.
ApplicationBroad field irrigation and large crop areas.

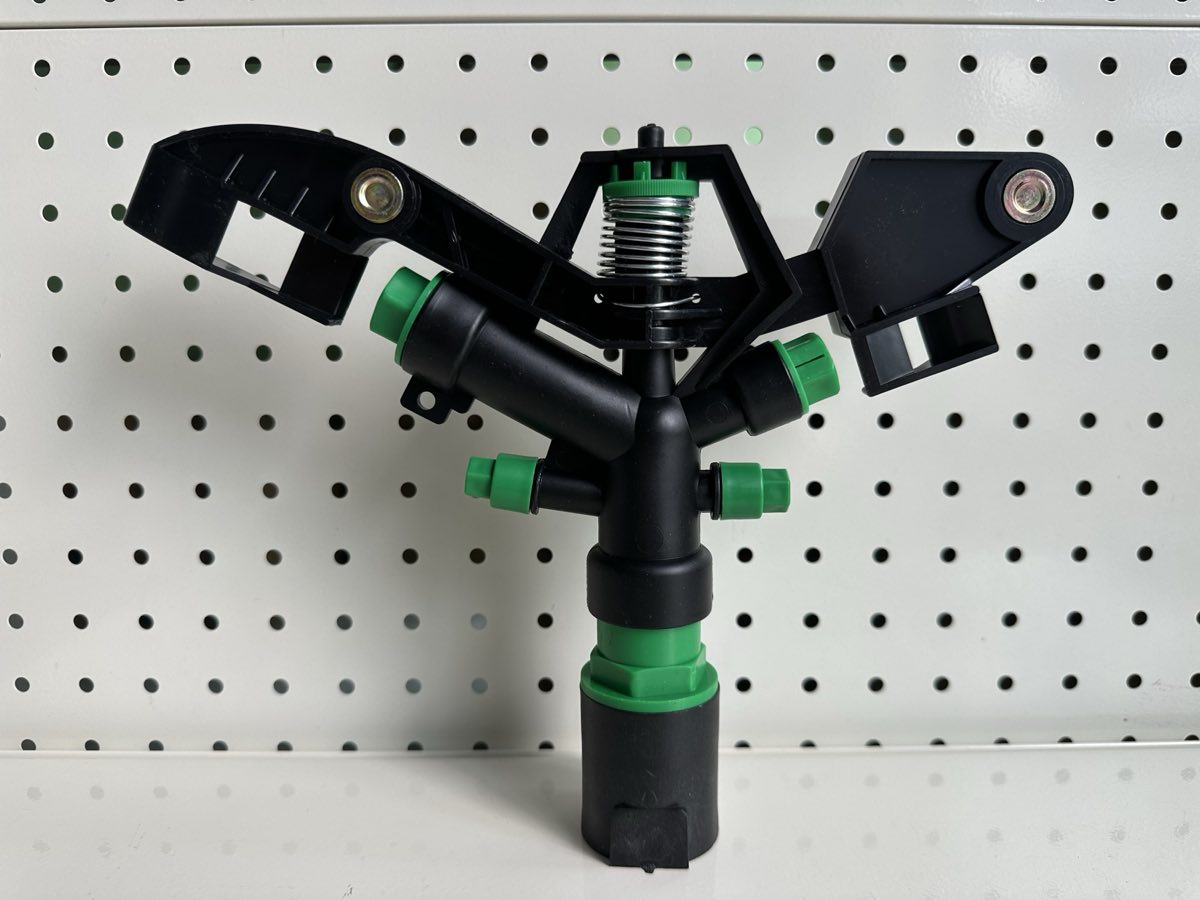

Black & Green Four-Nozzle Impact Sprinkler05

黑绿四嘴喷头

Black & Green Four-Nozzle Impact Sprinkler

Spray diameter
15–20 m
Working pressure
2.5–4.5 kg
Flow rate
4–6 m³/h
Material
POM
Connection
32 mm female thread
Product details

Four-nozzle ABS impact sprinkler engineered for consistent, wide-area irrigation with a practical structure for everyday field use.

Core featureFour-nozzle impact design from the interchangeable 3/4/6-nozzle family.
ApplicationWheat, corn and other large field crops requiring broad coverage.

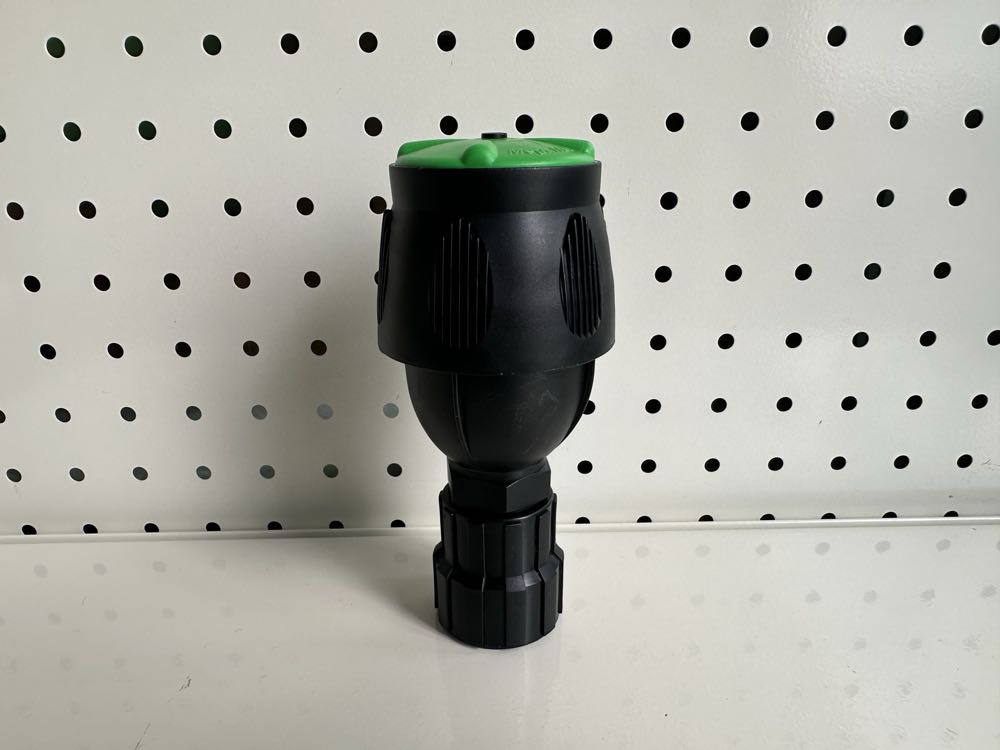

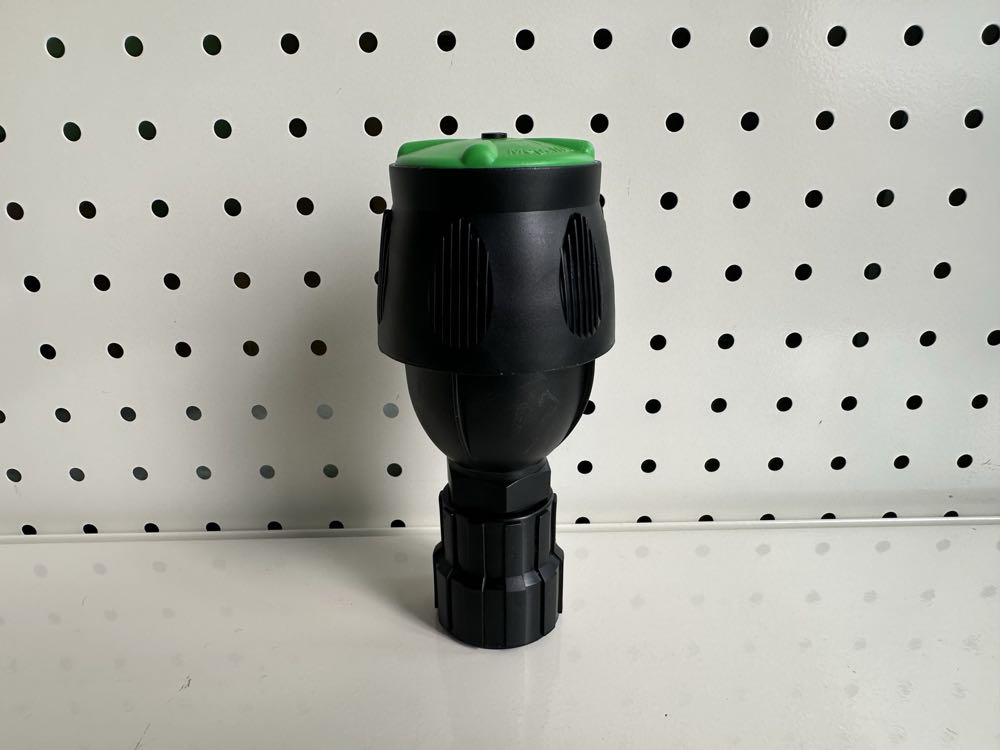

Meg Sprinkler06

麦格喷头

Meg Sprinkler

Spray diameter
18 m
Working pressure
2–4 kg
Flow rate
1.1 m³/h
Material
PP + POM
Connection
20 / 25 mm male thread
Product details

A versatile ABS sprinkler designed for routine crop irrigation, providing practical coverage for vegetable and medicinal-herb fields.

Core featureGeneral-purpose structure compatible with common irrigation layouts.
ApplicationMedicinal herbs and vegetable production.

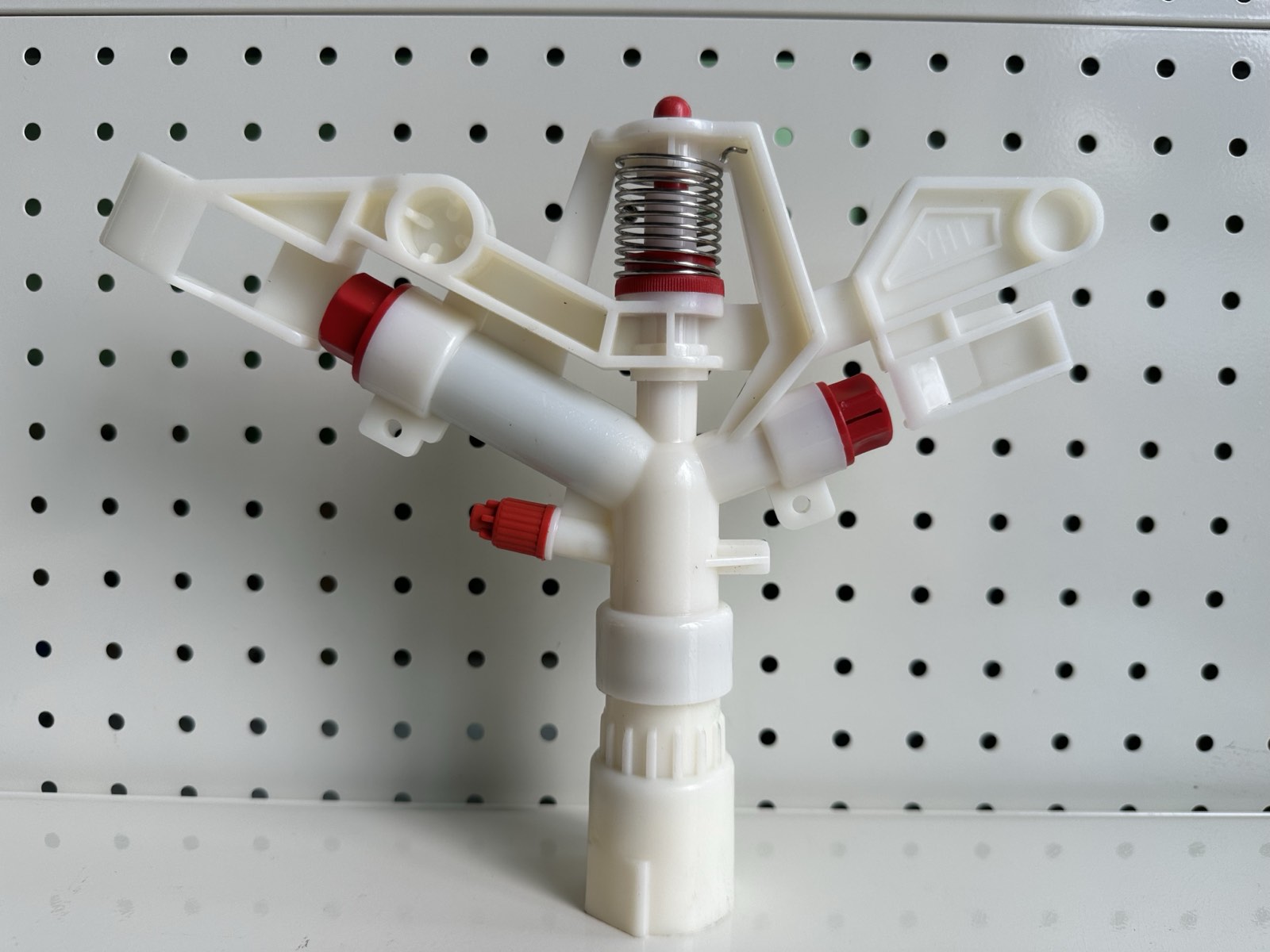

White Four-Nozzle Impact Sprinkler07

白四嘴喷头

White Four-Nozzle Impact Sprinkler

Spray diameter
18–20 m
Working pressure
1.5 kg
Flow rate
2 m³/h
Material
Virgin ABS
Connection
32 mm female thread
Product details

White four-nozzle ABS impact sprinkler for broad and stable coverage in conventional field irrigation systems.

Core featureFour-nozzle impact design from the interchangeable 3/4/6-nozzle family.
ApplicationWheat, corn and other field crops without ultra-fine atomization requirements.

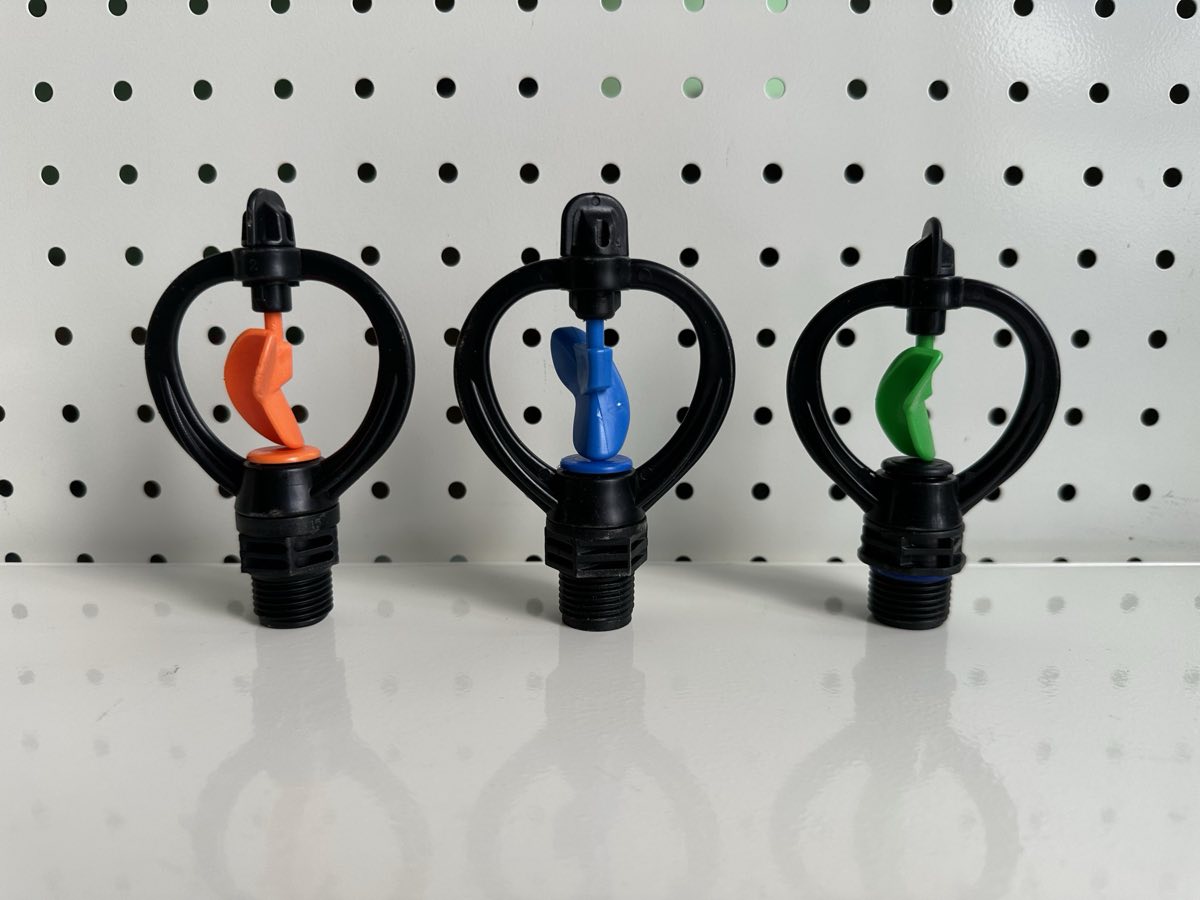

Butterfly Micro Sprinkler08

蝴蝶喷头

Butterfly Micro Sprinkler

Spray diameter
6–8 m
Working pressure
1.5–2 kg
Flow rate
0.35 m³/h
Material
PP ring + POM blade
Connection
32 mm female thread
Product details

A compact butterfly micro sprinkler with fine atomization and uniform coverage for crops requiring gentle, precise irrigation.

Core featureFine atomization with even and gentle water distribution.
ApplicationPrecision irrigation for vegetables and medicinal herbs.

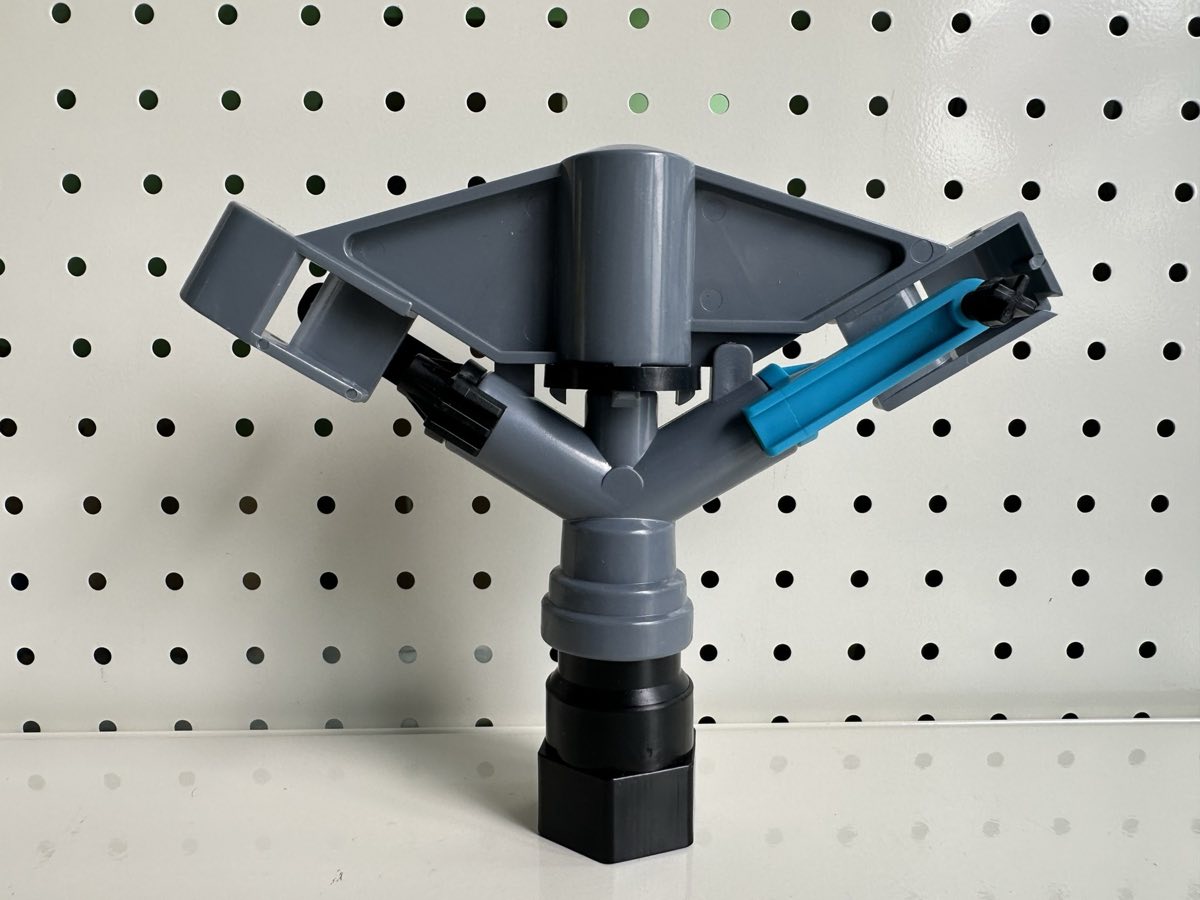

Small Cannon Sprinkler09

小钢炮喷头

Small Cannon Sprinkler

Spray diameter
20 m
Working pressure
1.5–3 kg
Flow rate
1.5 m³/h
Material
Virgin ABS
Connection
32 mm female thread
Product details

A twin-outlet small cannon sprinkler with adjustable coverage, built for large field areas that need flexible spray-range control.

Core featureTwin outlets and an adjustable water splitter for flexible spray diameter.
ApplicationLarge-scale field irrigation.

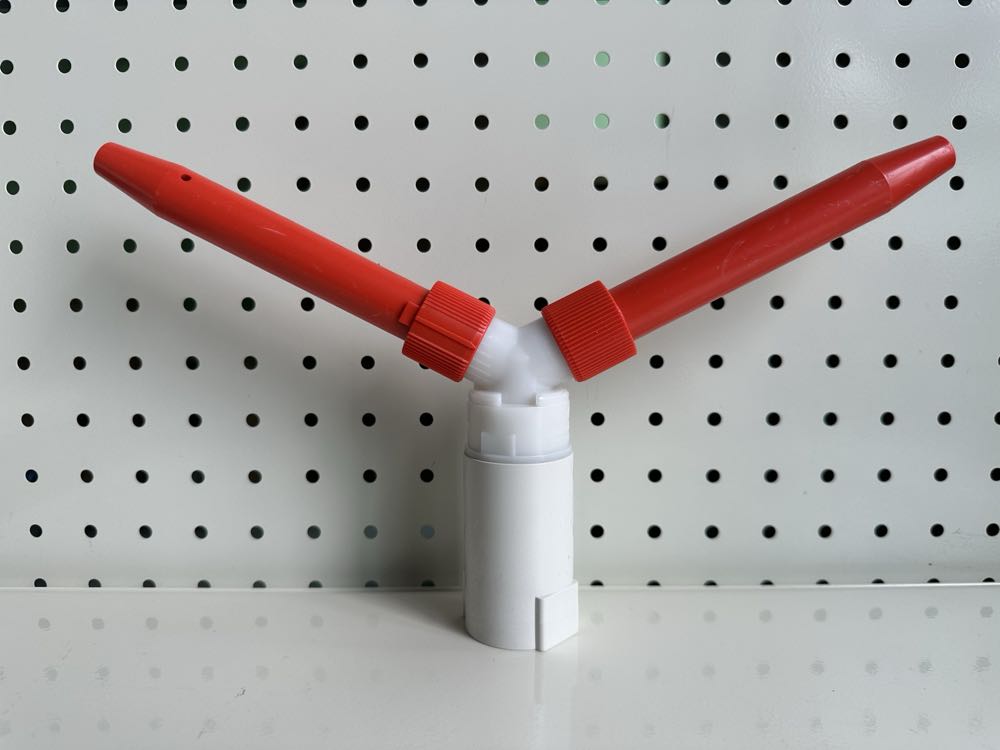

Red & White Up-Angle Sprinkler10

红白羊角（仰角）喷头

Red & White Up-Angle Sprinkler

Spray diameter
15–16 m
Working pressure
2 kg
Flow rate
2.2 m³/h
Material
POM
Connection
32 mm female thread
Product details

An ABS up-angle sprinkler designed for stable long-range water delivery in conventional field irrigation.

Core featureUp-angle spray design with a stable water trajectory and dependable range.
ApplicationWheat, corn and other field crops.

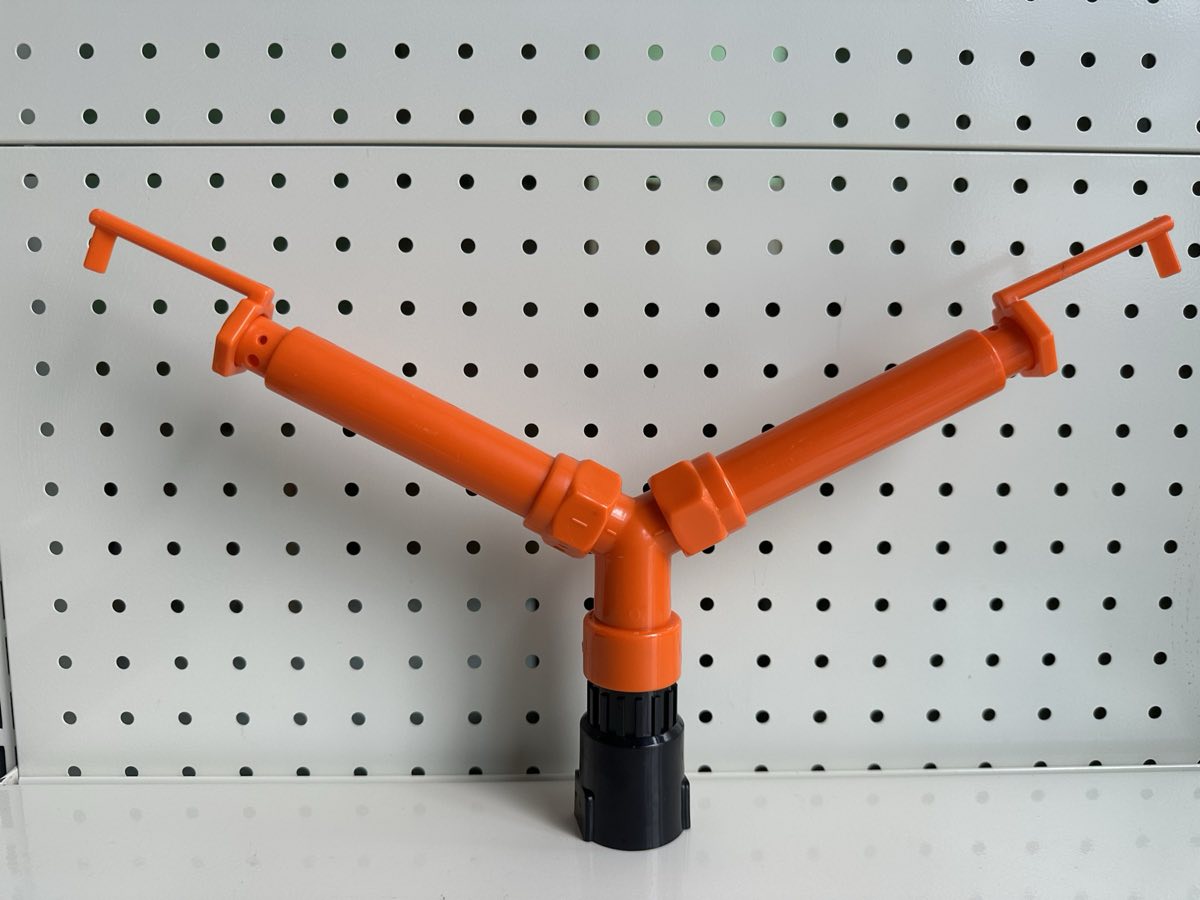

Orange Up-Angle Sprinkler11

橙色羊角（仰角）喷头

Orange Up-Angle Sprinkler

Spray diameter
12–15 m
Working pressure
2 kg
Flow rate
1.8–2 m³/h
Material
Virgin ABS
Connection
32 mm female thread
Product details

Orange ABS up-angle sprinkler offering stable trajectory and practical coverage for routine large-field irrigation.

Core featureUp-angle spray design with a stable water trajectory and dependable range.
ApplicationWheat, corn and other field crops.

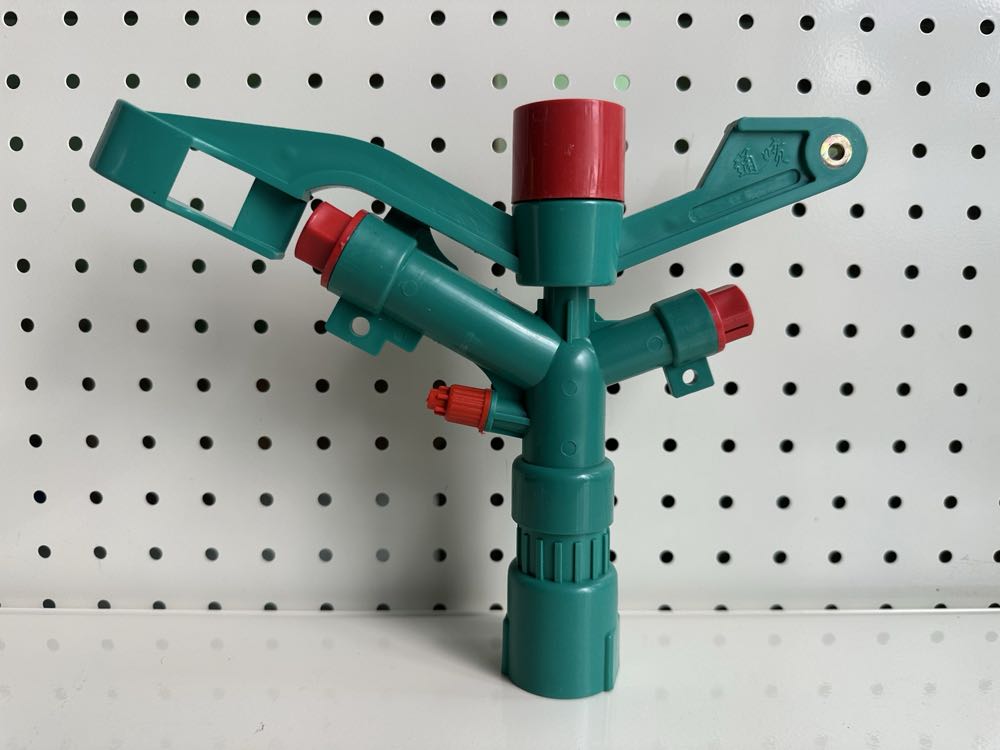

Green Three-Nozzle Impact Sprinkler12

绿三嘴喷头

Green Three-Nozzle Impact Sprinkler

Spray diameter
15–25 m
Working pressure
2.5–4.5 kg
Flow rate
4–6 m³/h
Material
POM
Connection
32 mm female thread
Product details

The three-nozzle configuration provides high-flow, broad coverage for large-scale field irrigation.

Core featureThree-nozzle model from the interchangeable 3/4/6-nozzle impact sprinkler family.
ApplicationLarge field irrigation and broad crop coverage.

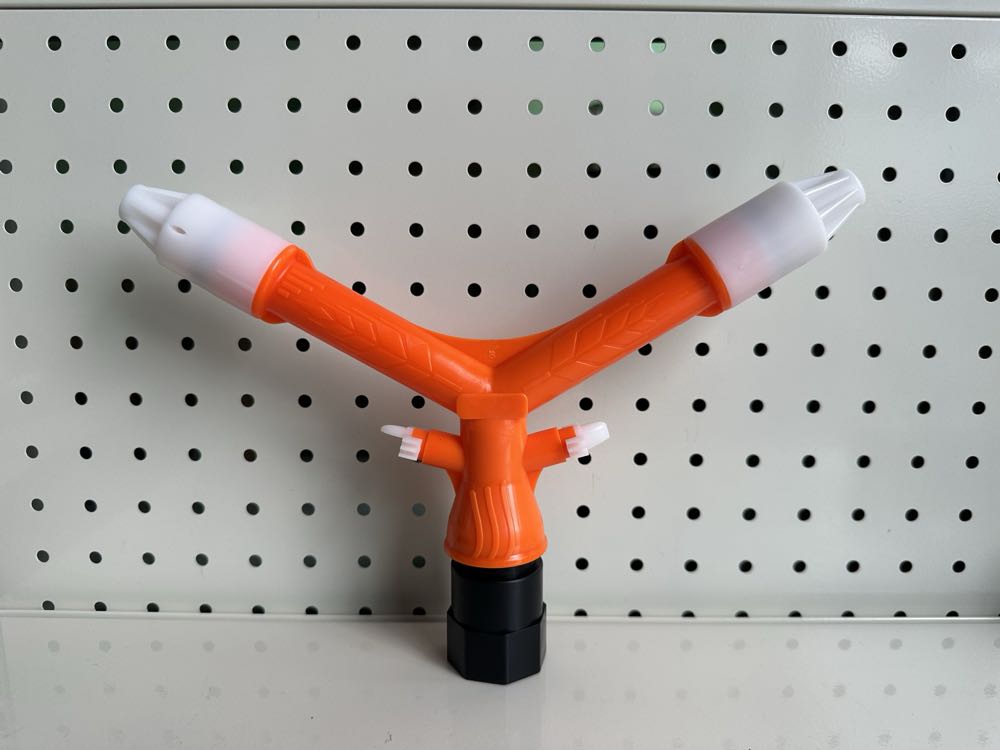

Orange & White Up-Angle Sprinkler13

橙白羊角（仰角）喷头

Orange & White Up-Angle Sprinkler

Spray diameter
15–16 m
Working pressure
2 kg
Flow rate
2 m³/h
Material
POM
Connection
32 mm female thread
Product details

Orange and white ABS up-angle sprinkler offering stable trajectory and practical coverage for routine large-field irrigation.

Core featureUp-angle spray design with a stable water trajectory and dependable range.
ApplicationWheat, corn and other field crops.
01

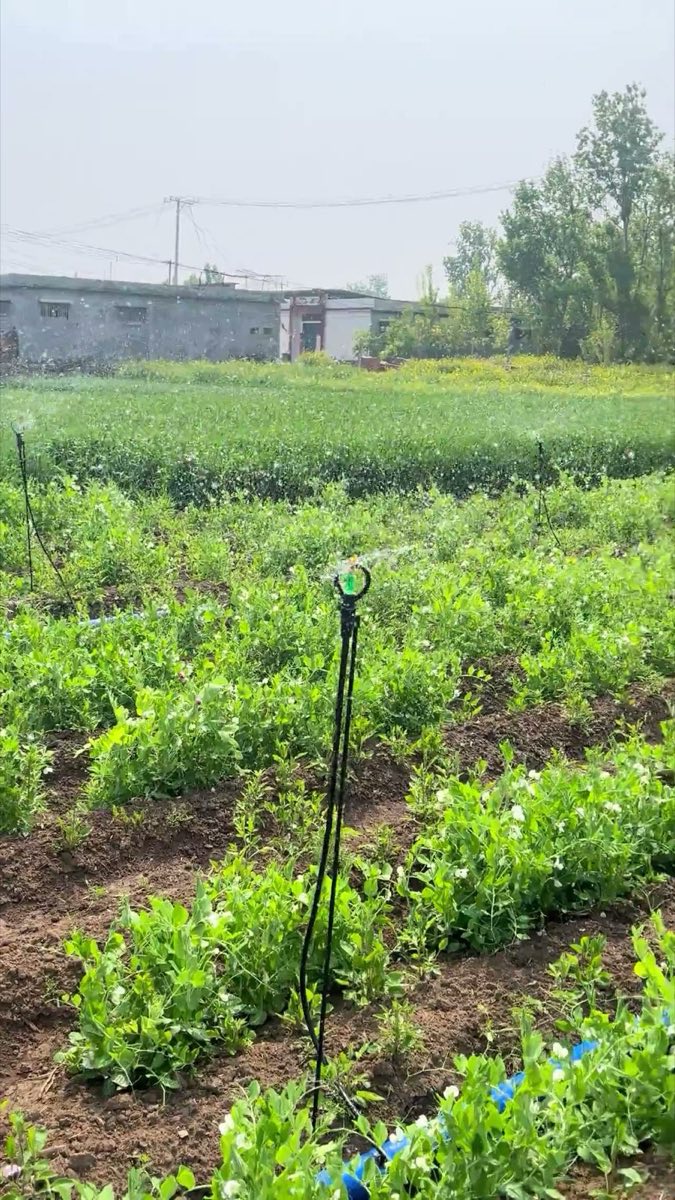

Butterfly Micro Sprinkler
02

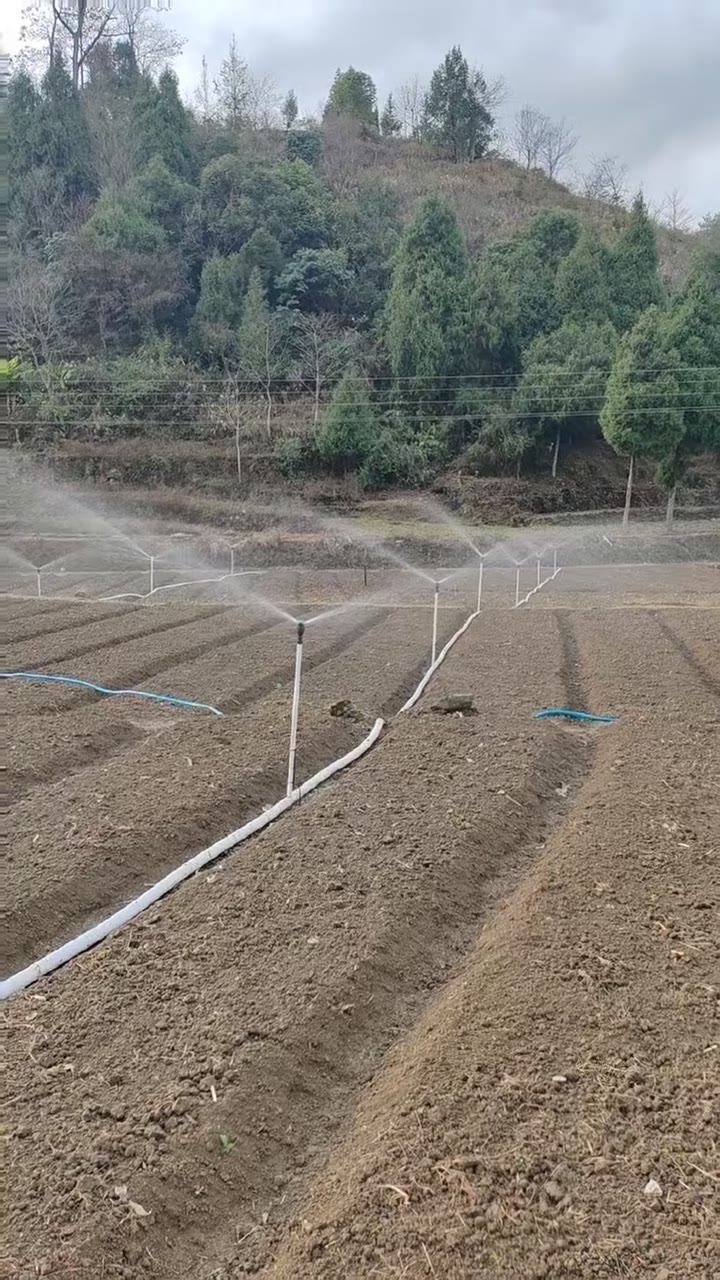

Meg Sprinkler
03

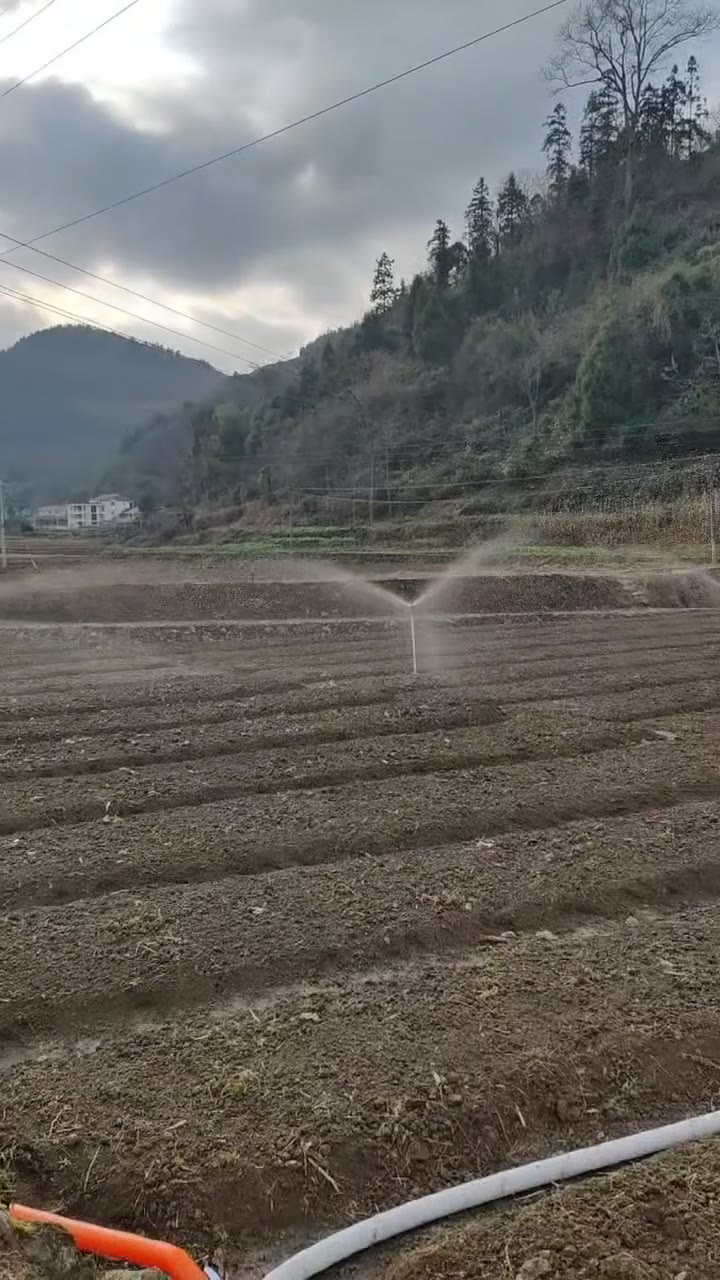

White Six-Nozzle Impact Sprinkler
04

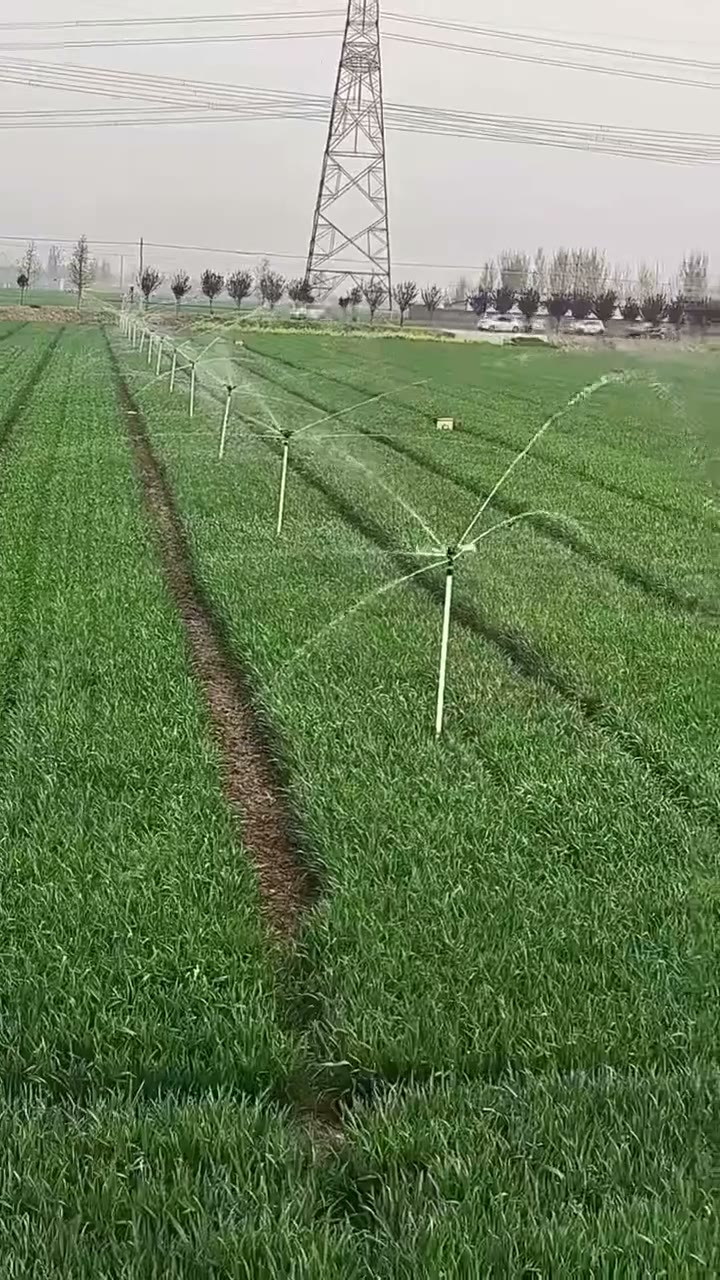

Impact Sprinkler
05

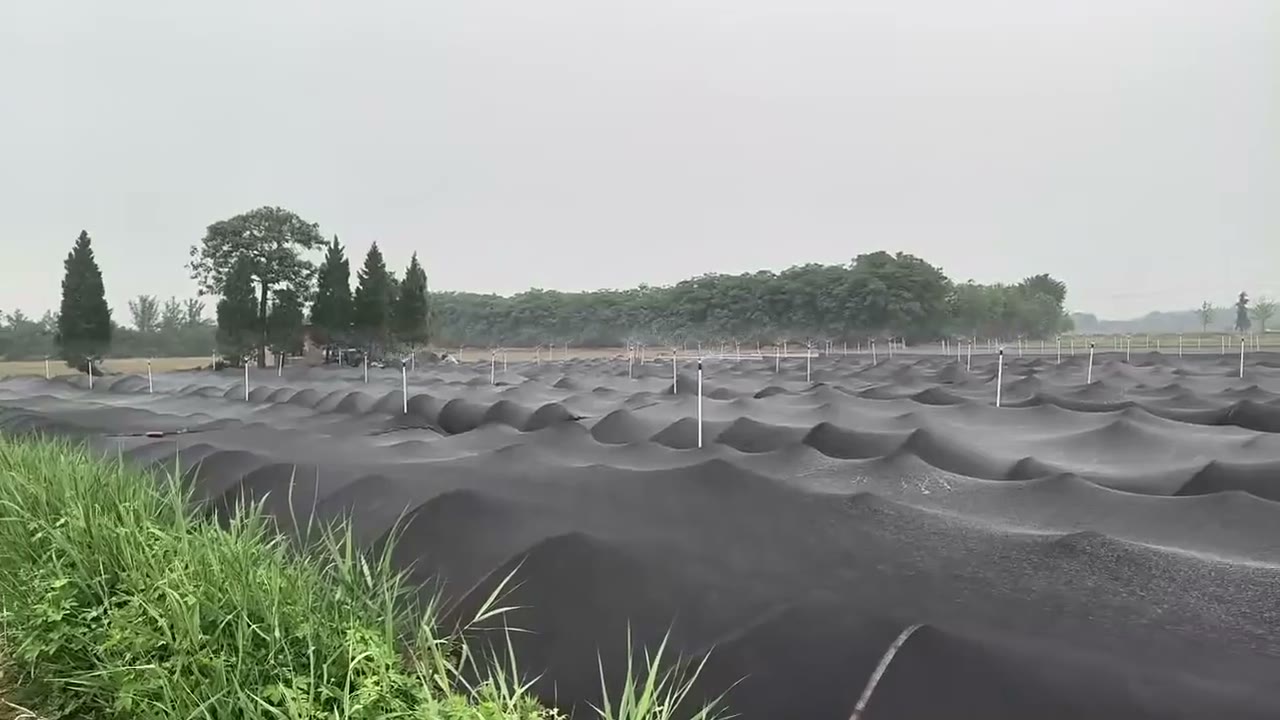

ABS Anti-Sand Sprinkler
06

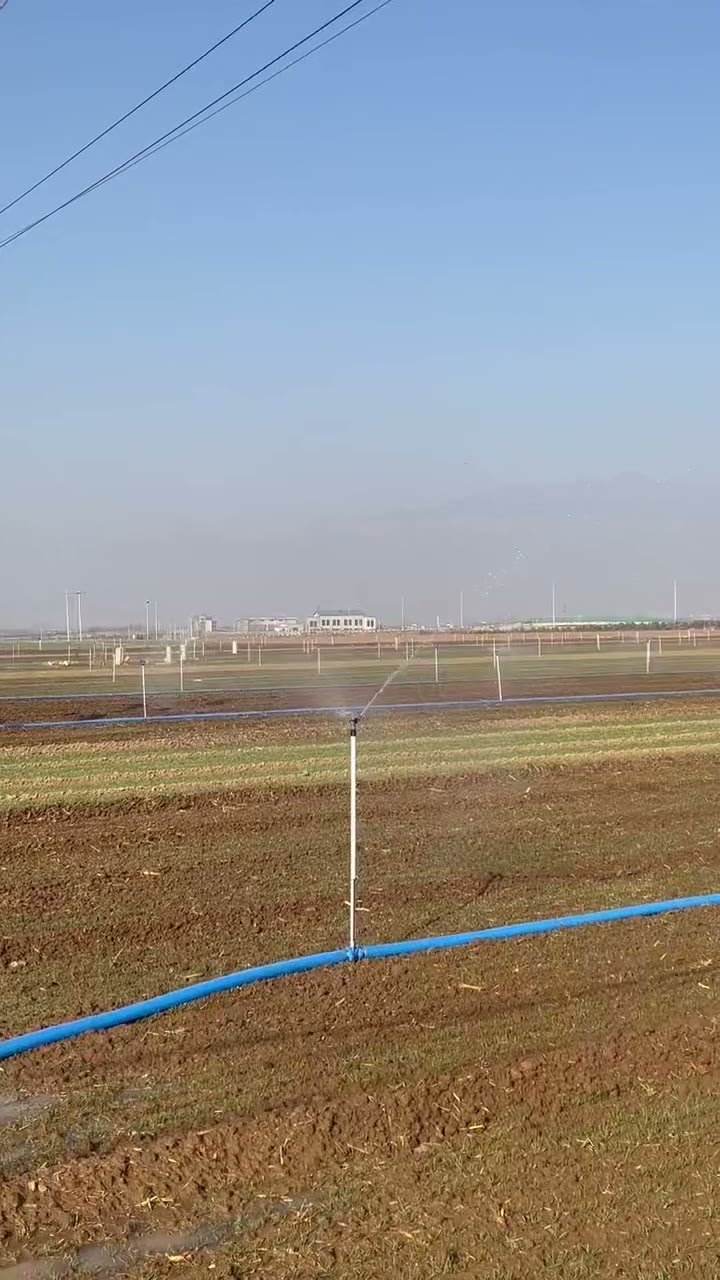

Small Cannon Sprinkler
07

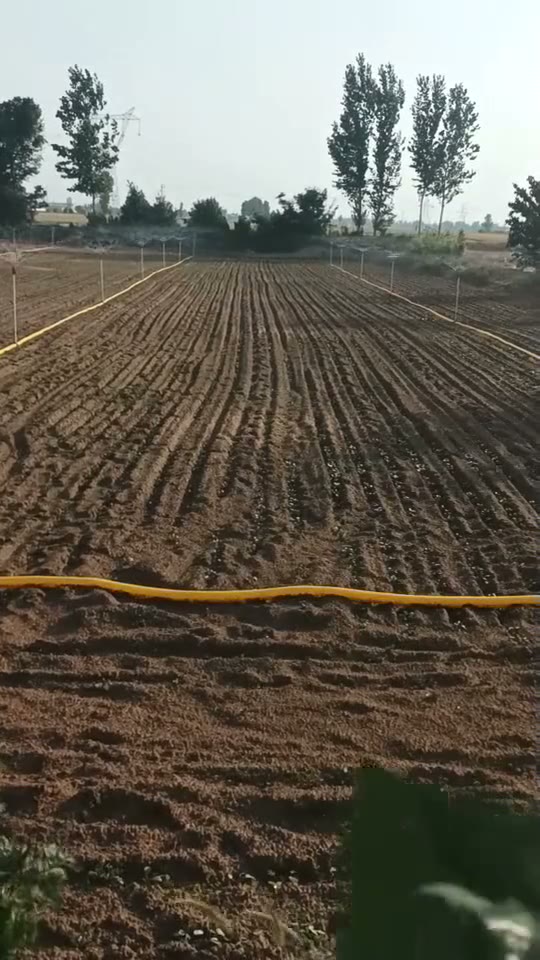

Orange Up-Angle SprinklerApprox. 12 m spray diameter
08

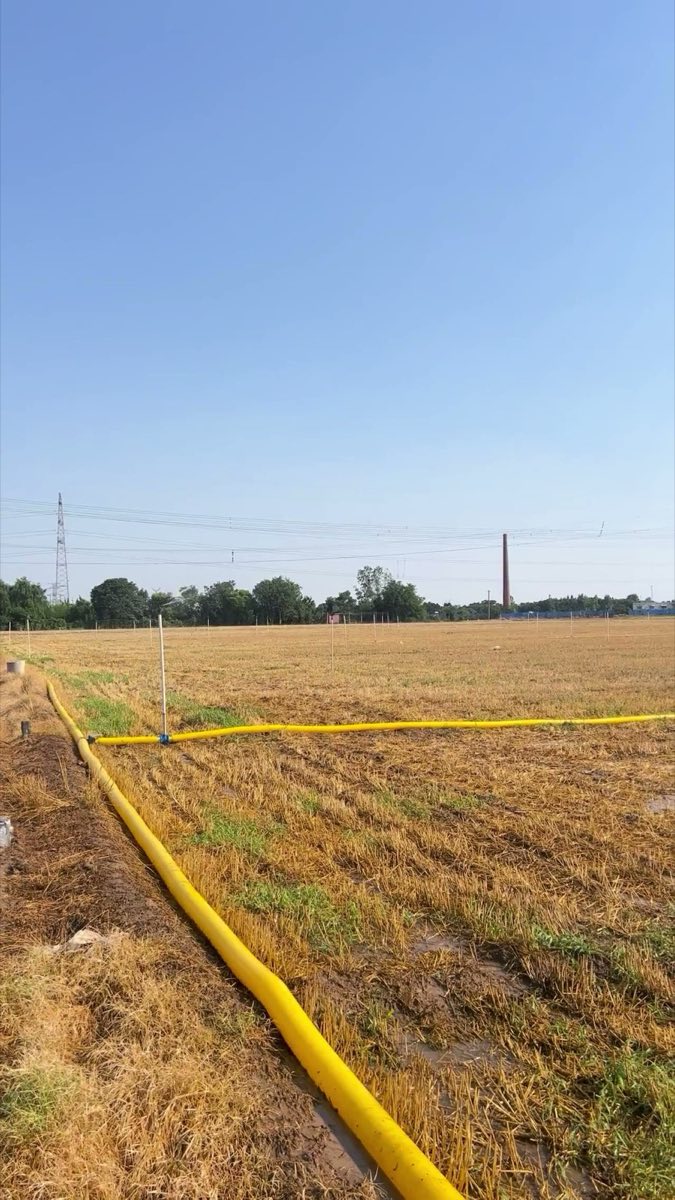

Directional Impact Sprinkler
09
Red & White Up-Angle Sprinkler
10

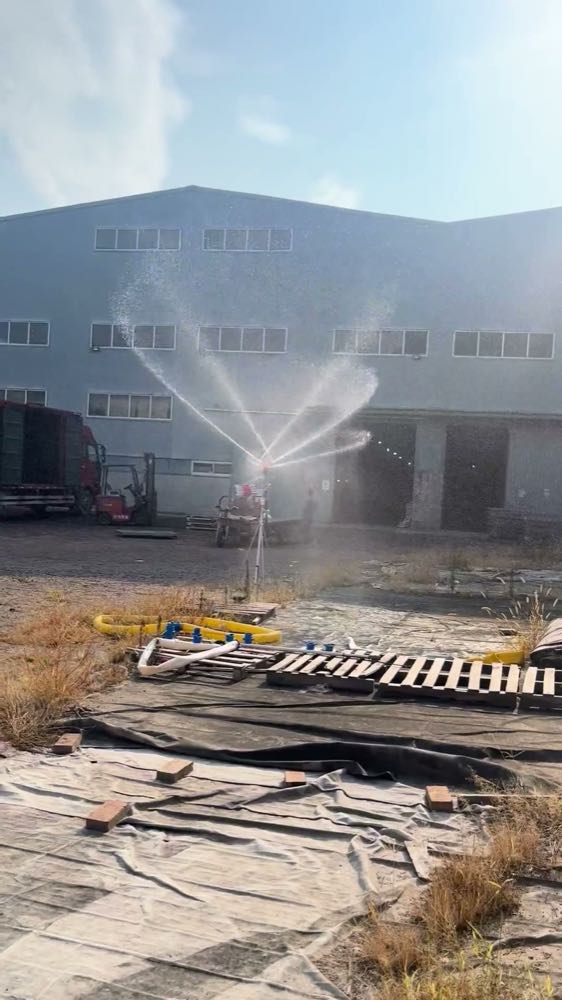

Orange & White Up-Angle Sprinkler

SUB-SERIES 02 · SPRINKLER RISERS

Sprinkler Riser Series

All three riser types have a 32 mm outer diameter. Height and material can be customized to customer requirements.

01

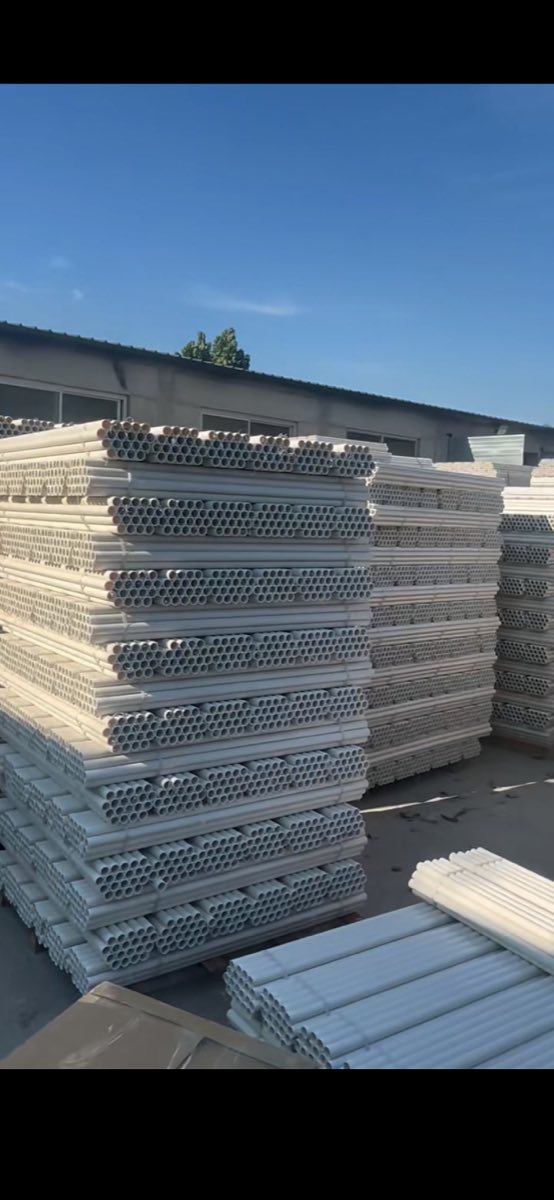

PVC sprinkler risers in the factory yard
02
01

PVC Sprinkler Riser

Lightweight PVC riser for standard field sprinkler installations.

Outer diameter
32 mm
Material
PVC
Height
Customizable

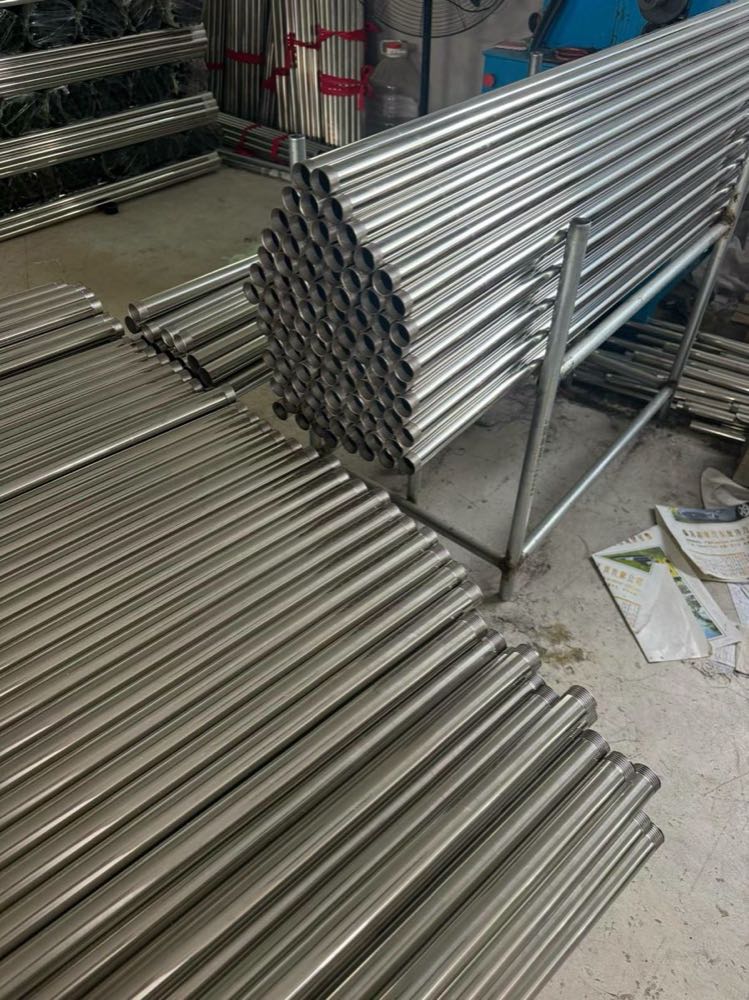

Stainless steel sprinkler risers
01

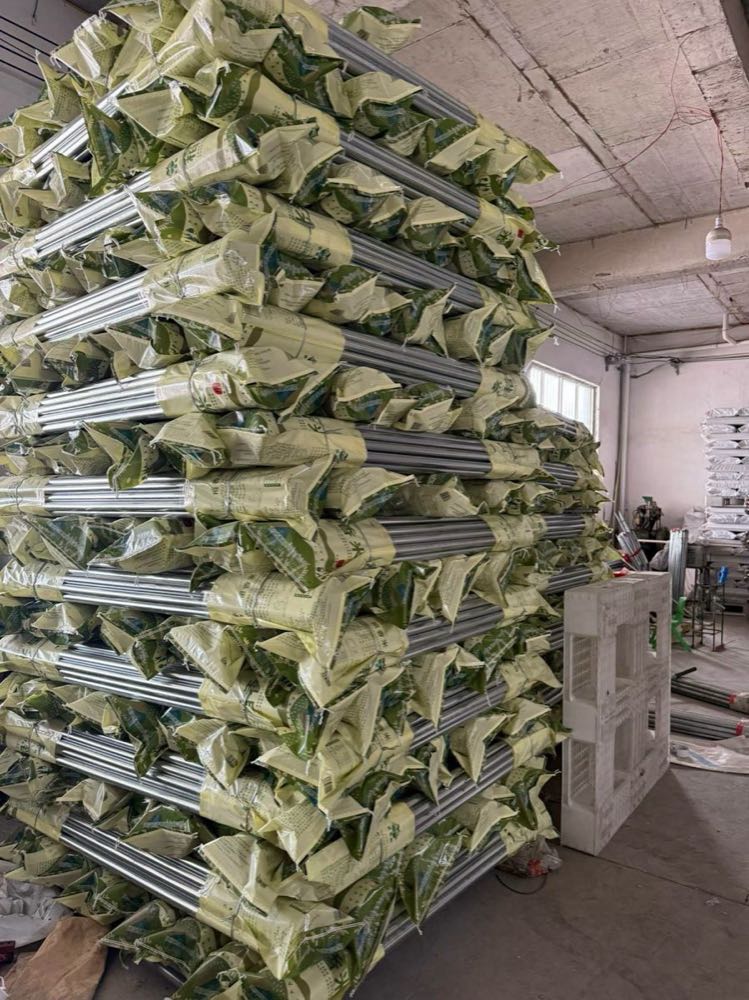

Packaged stainless steel sprinkler risers
02
02

Stainless Steel Sprinkler Riser

Corrosion-resistant stainless steel riser for durable outdoor use.

Outer diameter
32 mm
Material
Stainless steel
Height
Customizable

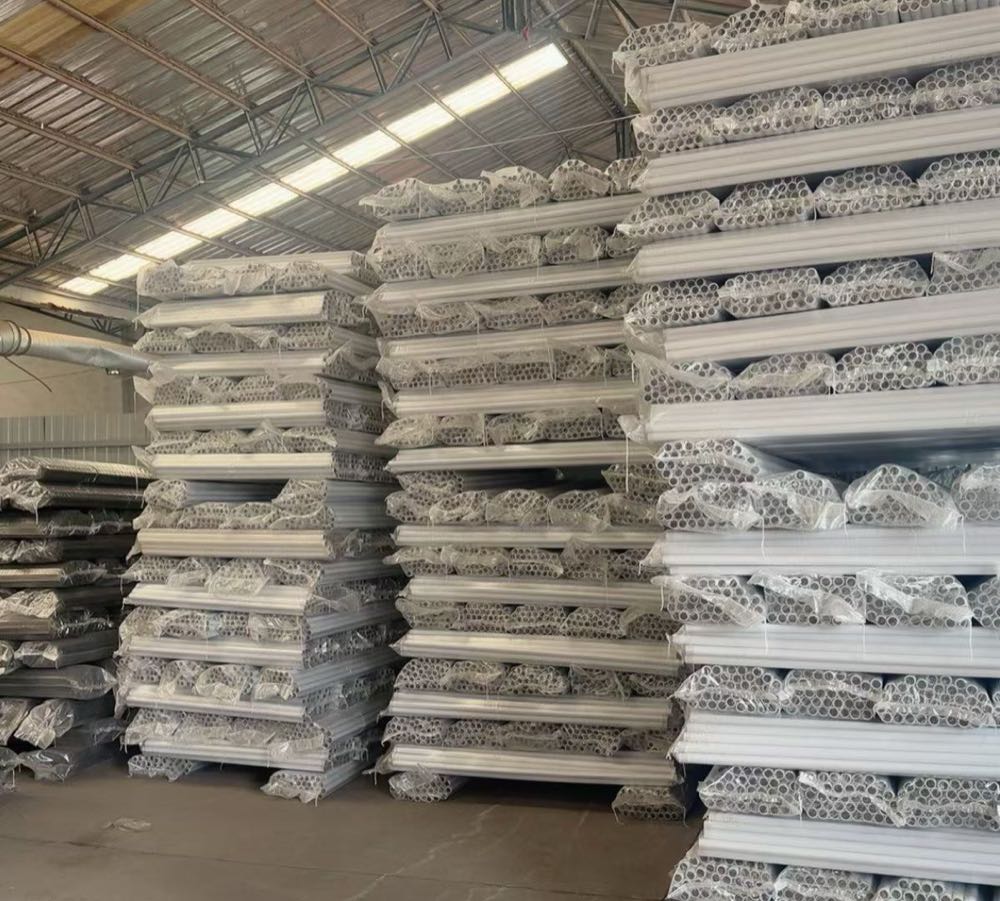

PVC-coated stainless steel sprinkler riser warehouse stock
01

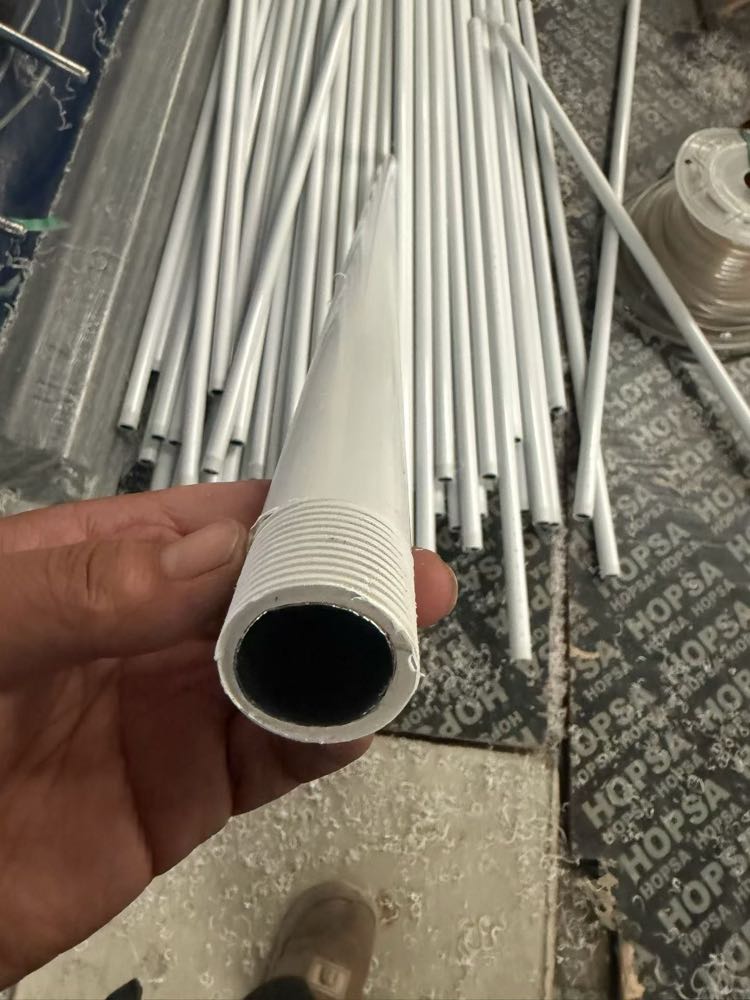

PVC-coated stainless steel sprinkler riser cross section
02
03

PVC-Coated Stainless Steel Sprinkler Riser

A stainless steel inner core with a protective PVC outer layer.

Outer diameter
32 mm
Material
PVC outer layer + stainless steel inner core
Height
Customizable

SUB-SERIES 03 · GROUND STAKES

Sprinkler Ground Stake Series

Three support structures are available for different field layouts. Specified dimensions can be customized for project requirements.

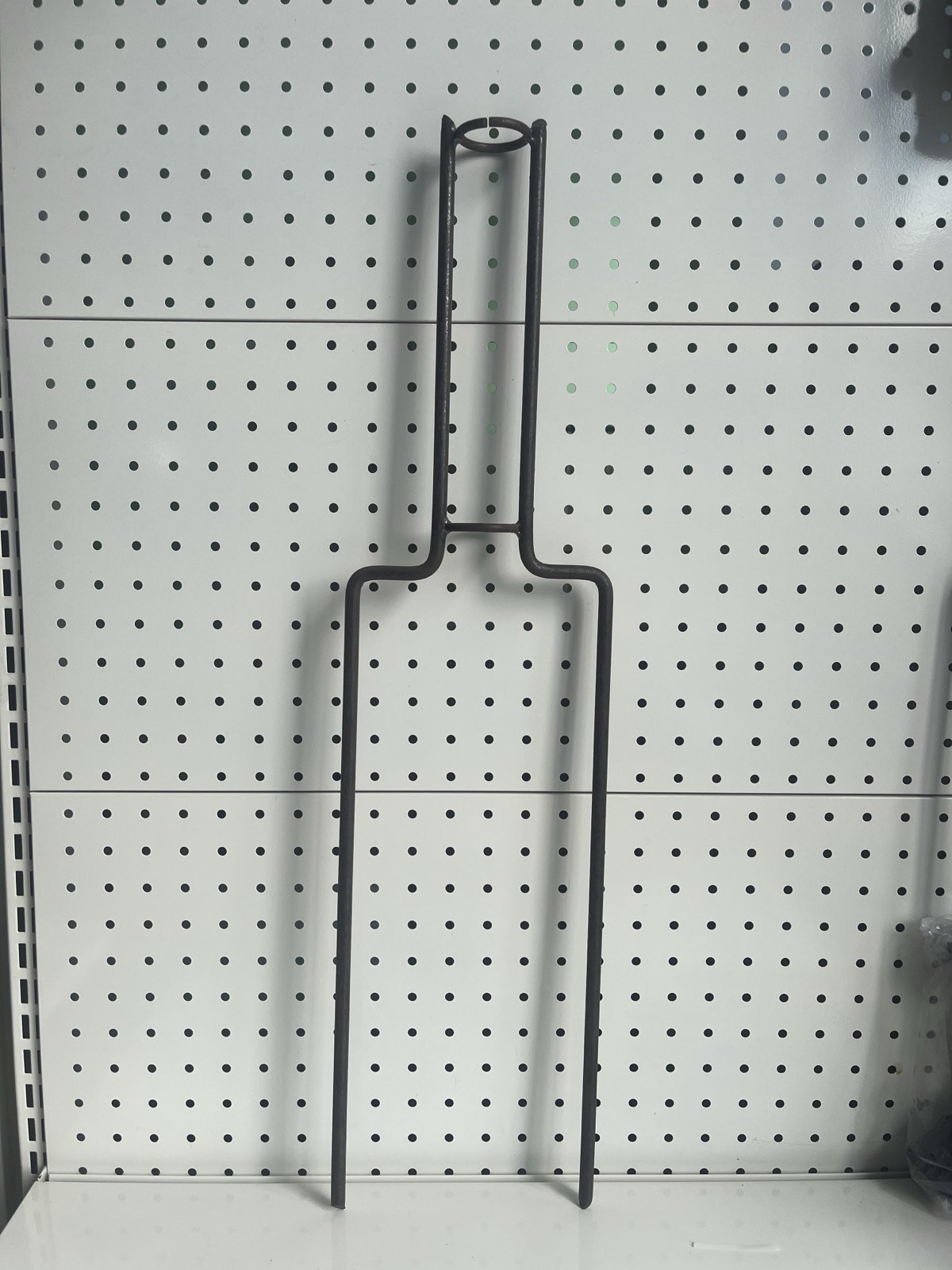

Double-leg sprinkler ground stake
01
01

Double-Leg Ground Stake

Stable double-leg round-steel support for field sprinkler risers.

Approx. height
700 mm
Rod diameter
9.5 mm
Material
Round steel
Customization
Length & diameter

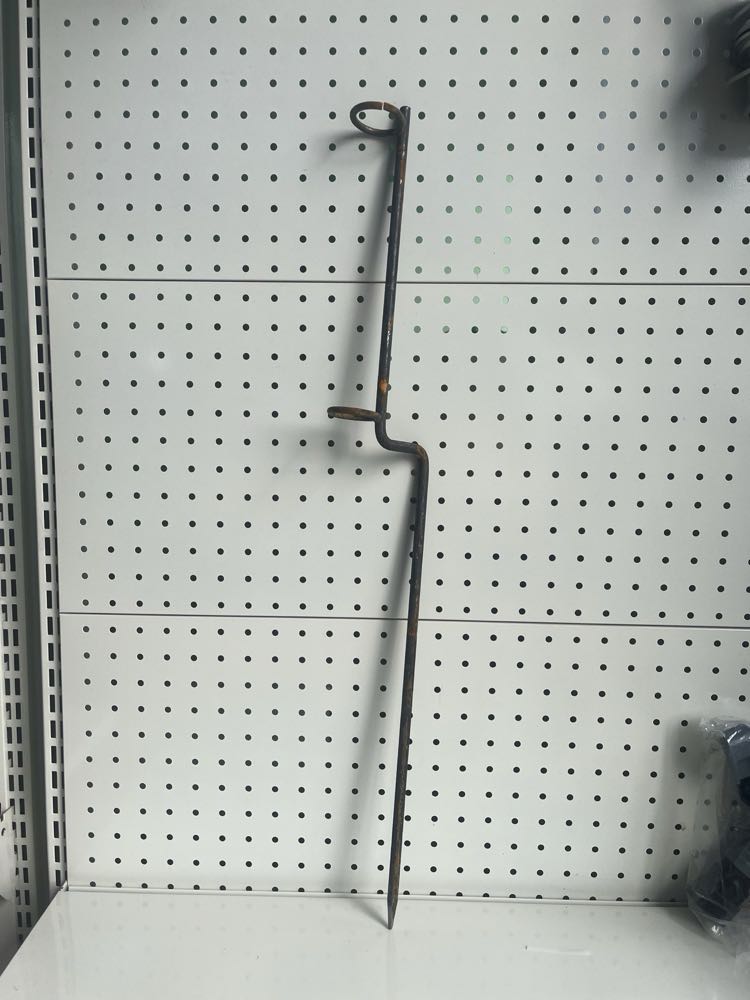

Foot-pedal sprinkler ground stake
01
02

Foot-Pedal Ground Stake

Single-leg round-steel stake with a foot step for fast field installation.

Approx. height
700 mm
Rod diameter
9.5 mm
Material
Round steel
Customization
Length & diameter

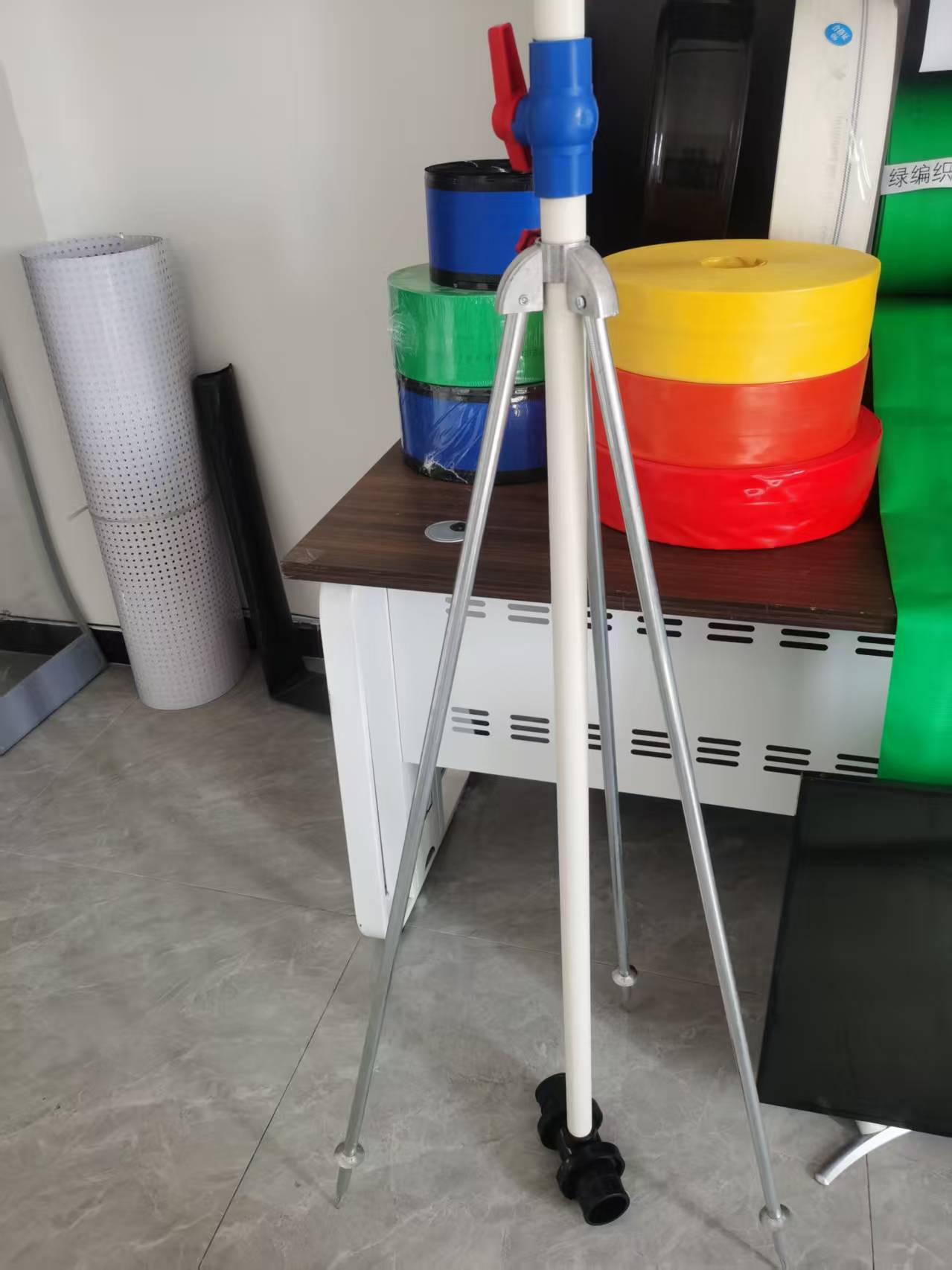

Triangular aluminum-alloy sprinkler ground stake
01
03

Triangular Ground Stake

Three-leg aluminum-alloy support for a stable elevated sprinkler installation.

Height options
1,200 / 1,500 mm
Material
Aluminum alloy
Structure
Three-leg support

SUB-SERIES 04 · RISER BASES

Sprinkler Riser Base Series

Three connection methods cover direct hose mounting, detachable ABS tees and integrated PP tees. Compatible hose sizes are Ø63 mm and Ø75 mm.

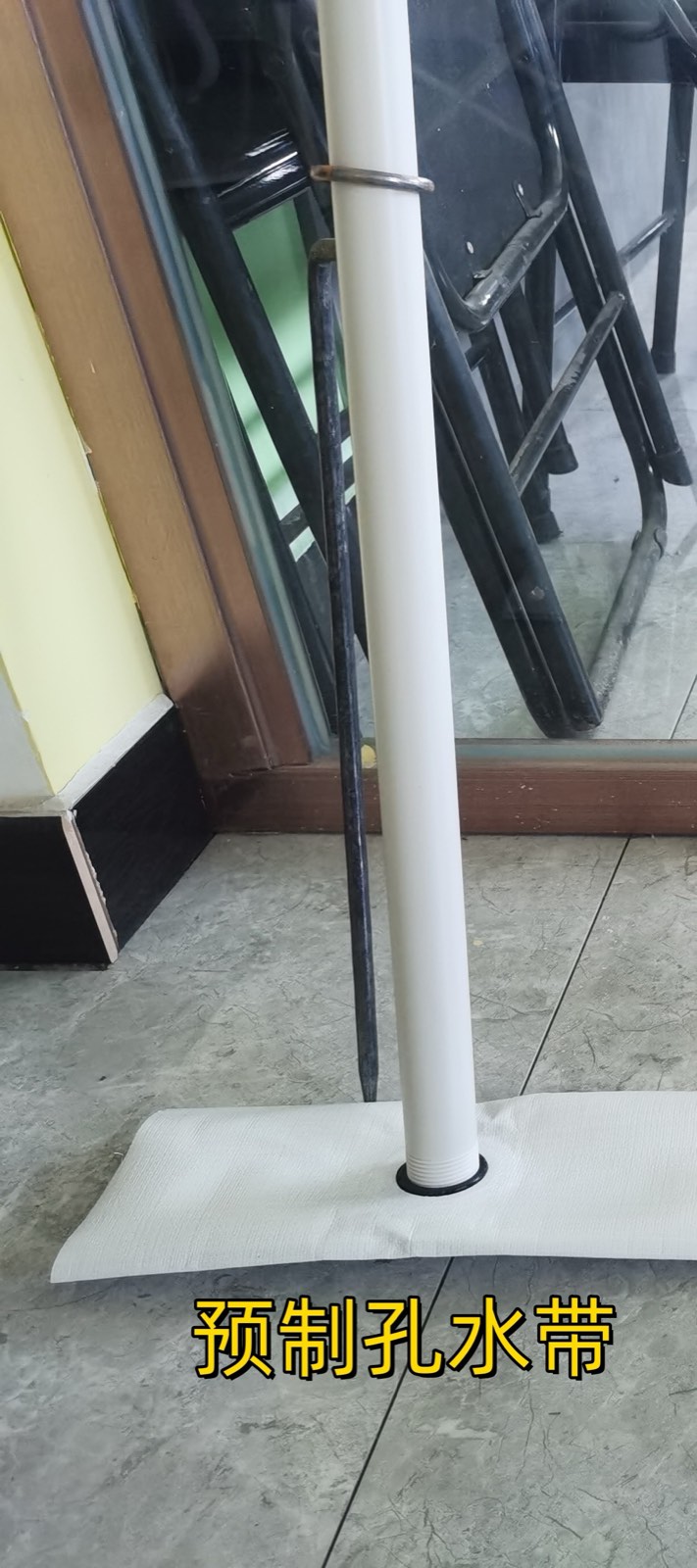

Direct hose-mounted sprinkler riser base
01

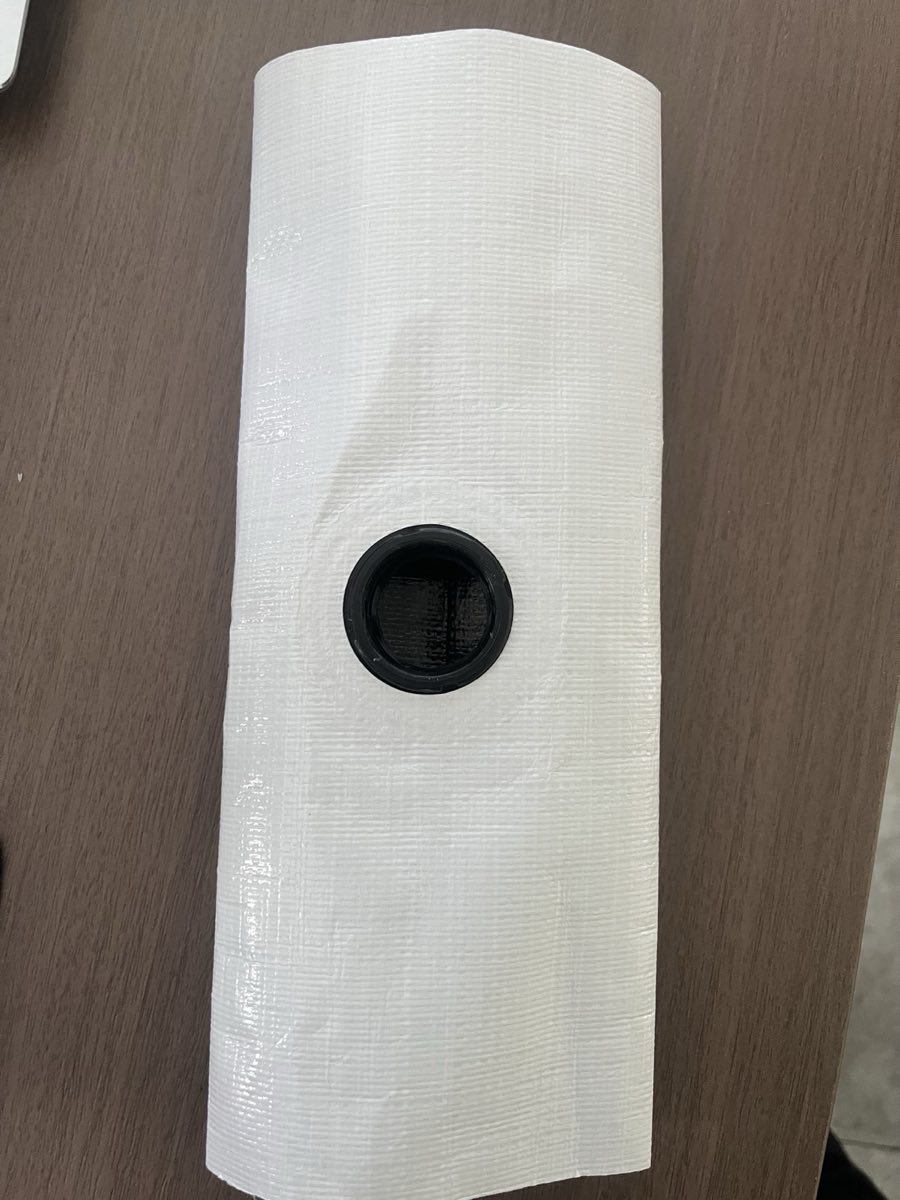

Direct riser base mounted in pre-perforated layflat hose
02
01

Direct Hose-Mounted Riser Base

A compact riser base mounted directly through pre-perforated layflat hose.

Riser hole
32 mm
Compatible hose
Ø63 / Ø75 mm
Connection
Direct hose mount

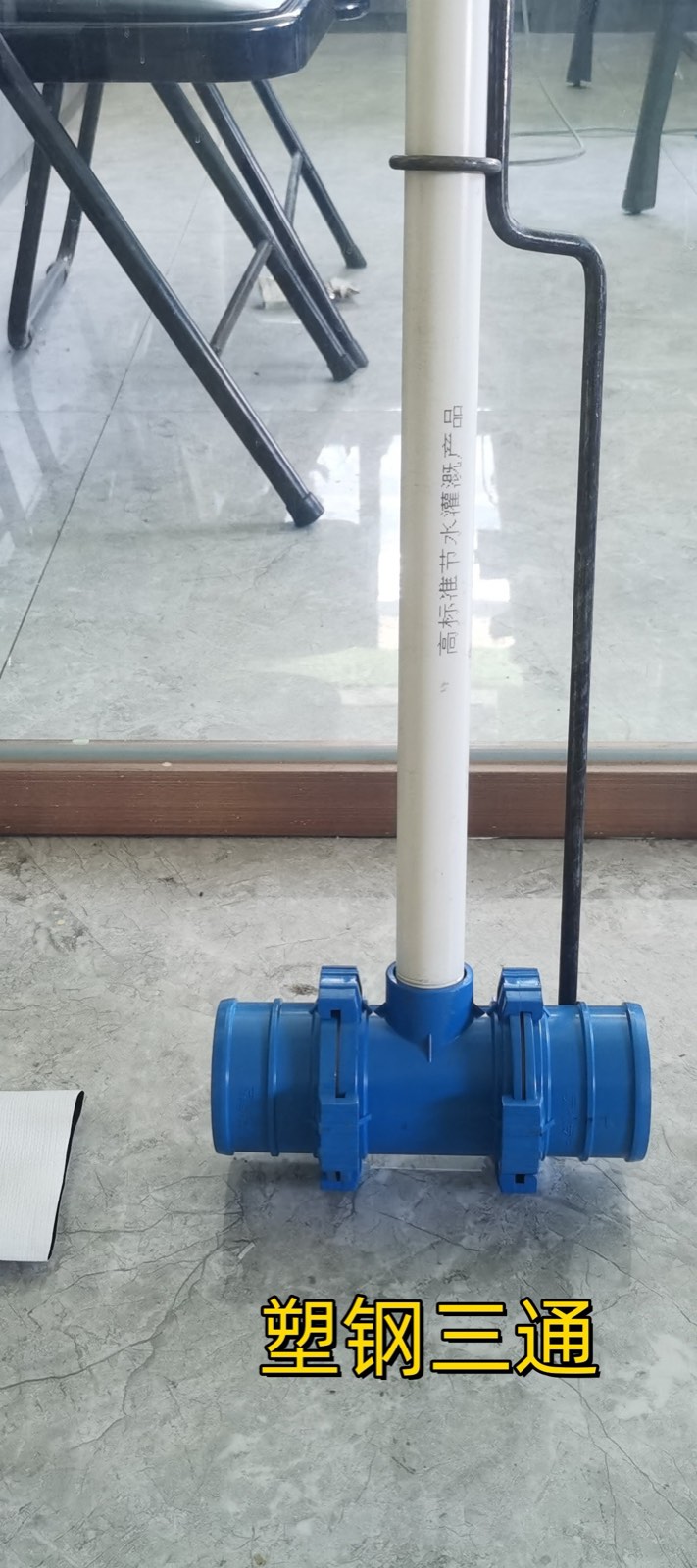

Detachable ABS tee sprinkler riser base
01

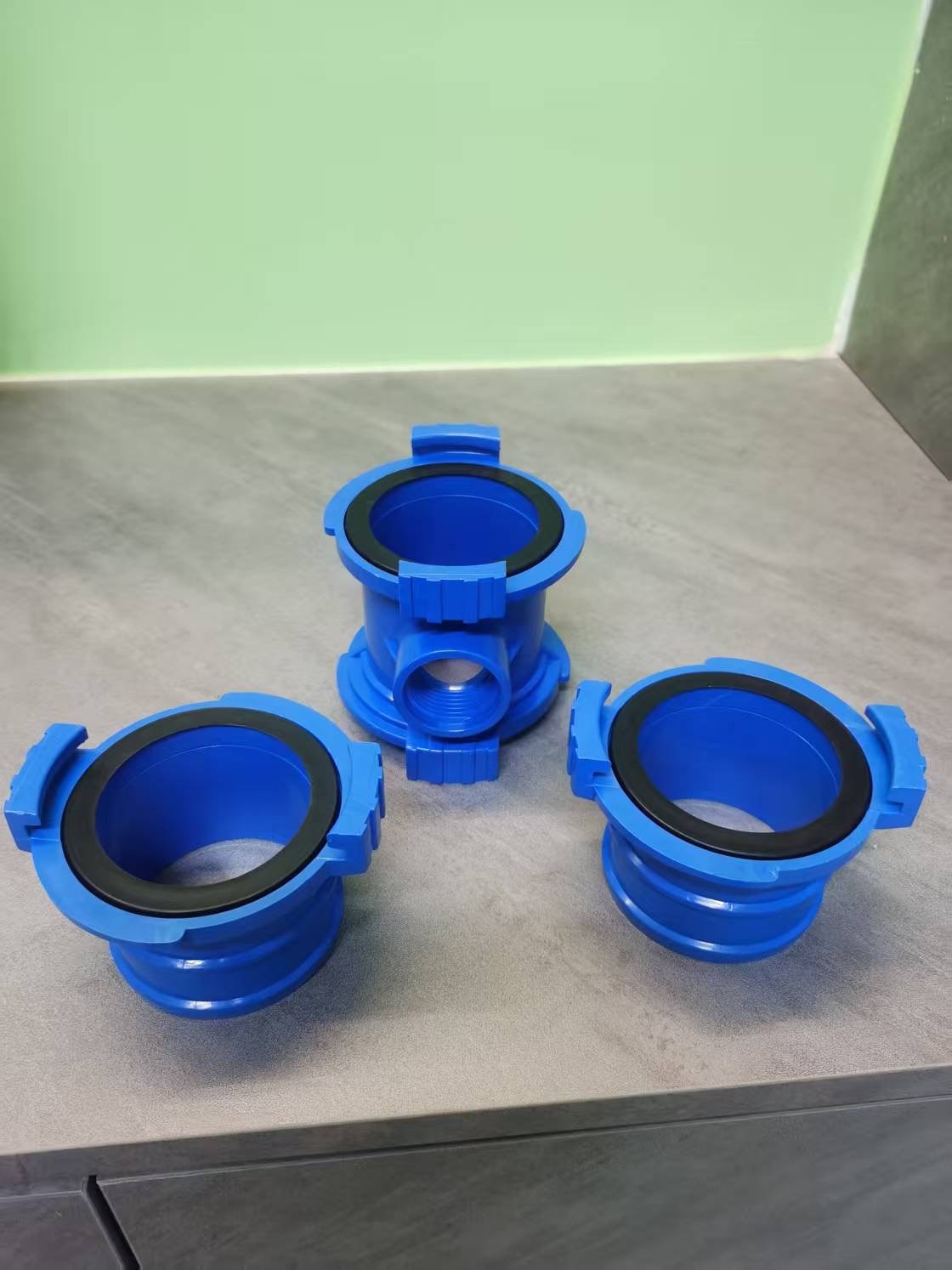

Detachable ABS tee riser base set
02

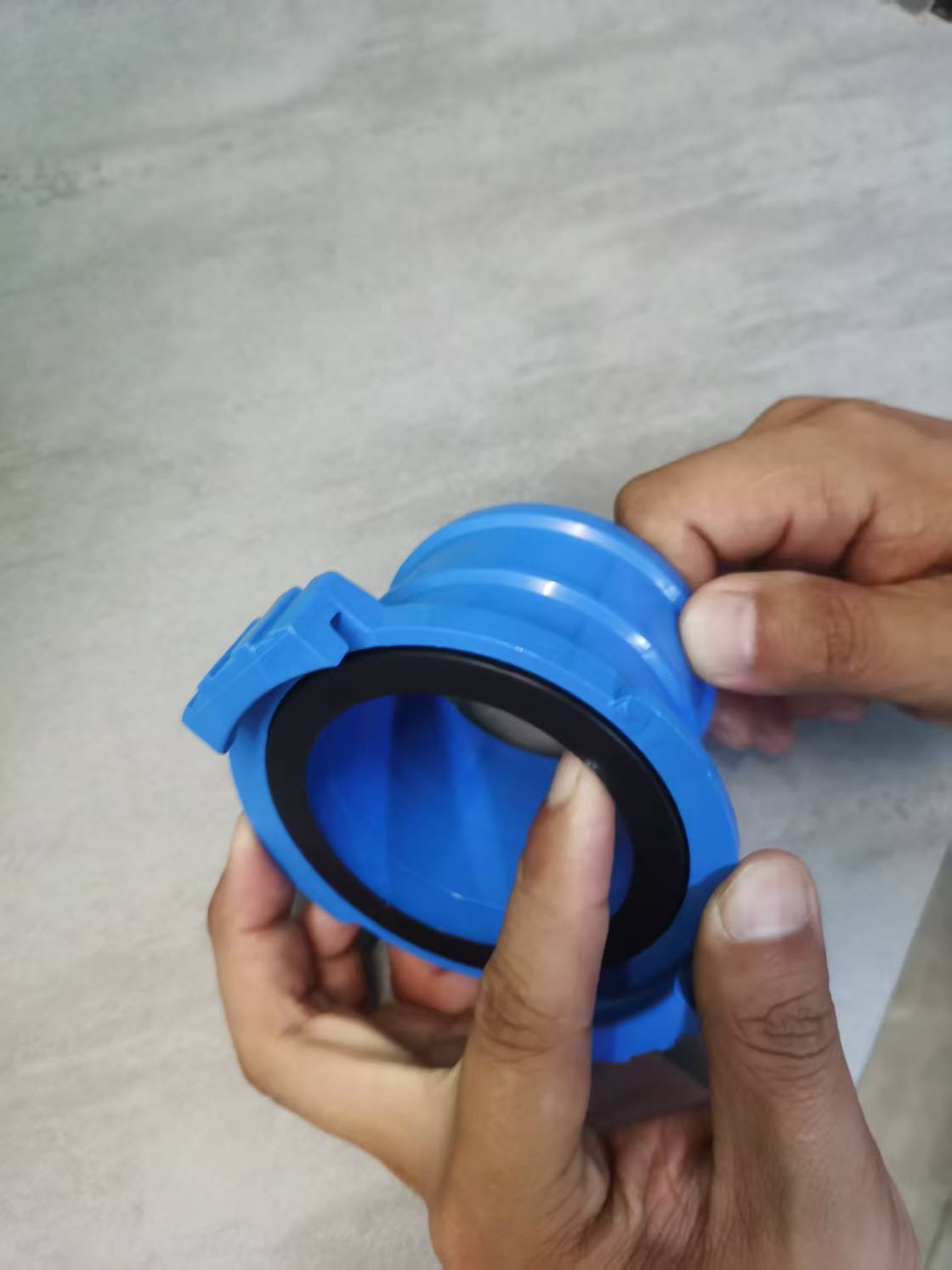

Retained gasket detail of detachable ABS tee
03

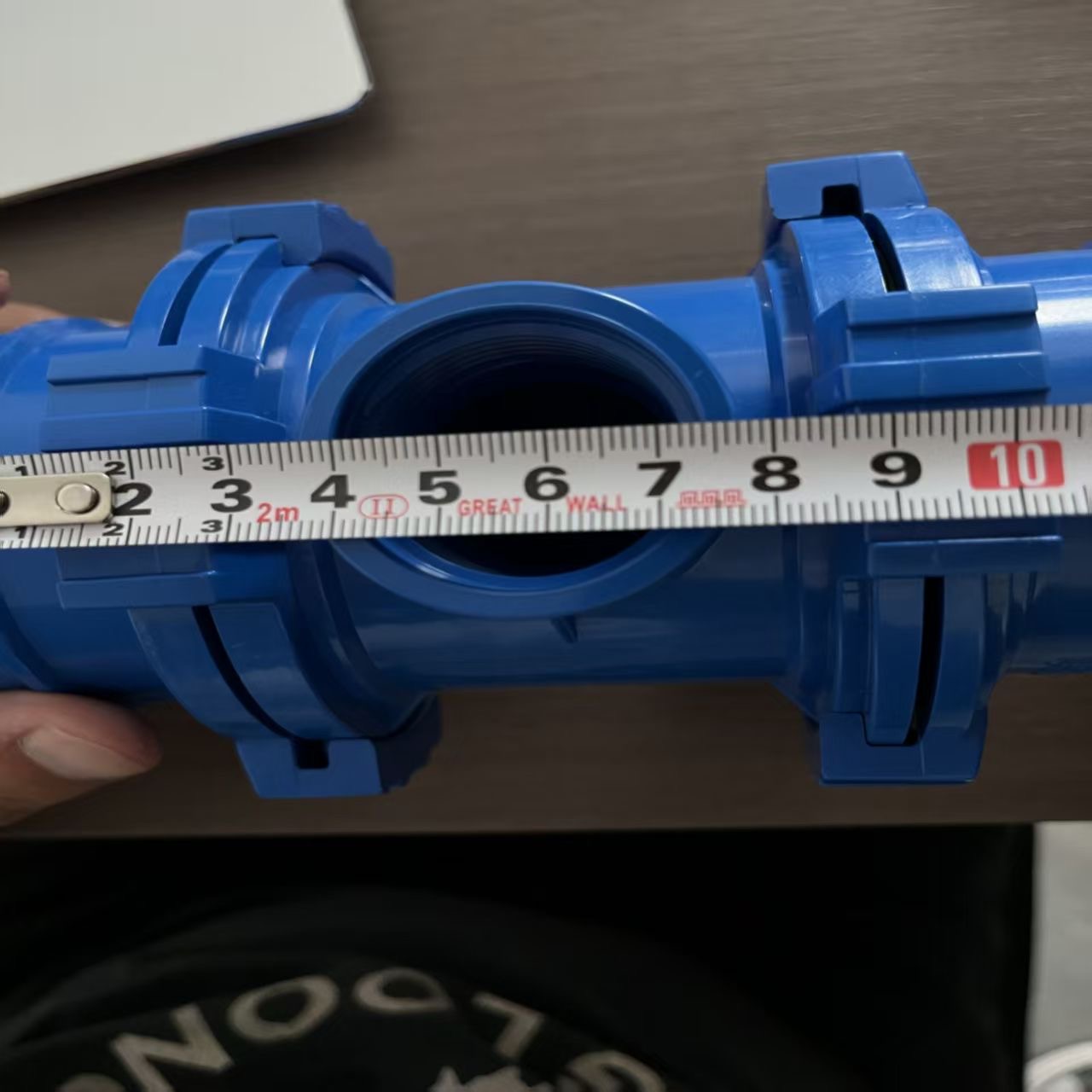

Detachable ABS tee size measurement
04
02

Detachable ABS Tee Riser Base

Pressure-resistant detachable ABS tee with a retained gasket that stays securely in place.

Material
ABS
Size options
Ø63 / Ø75 mm
Features
Detachable · retained gasket

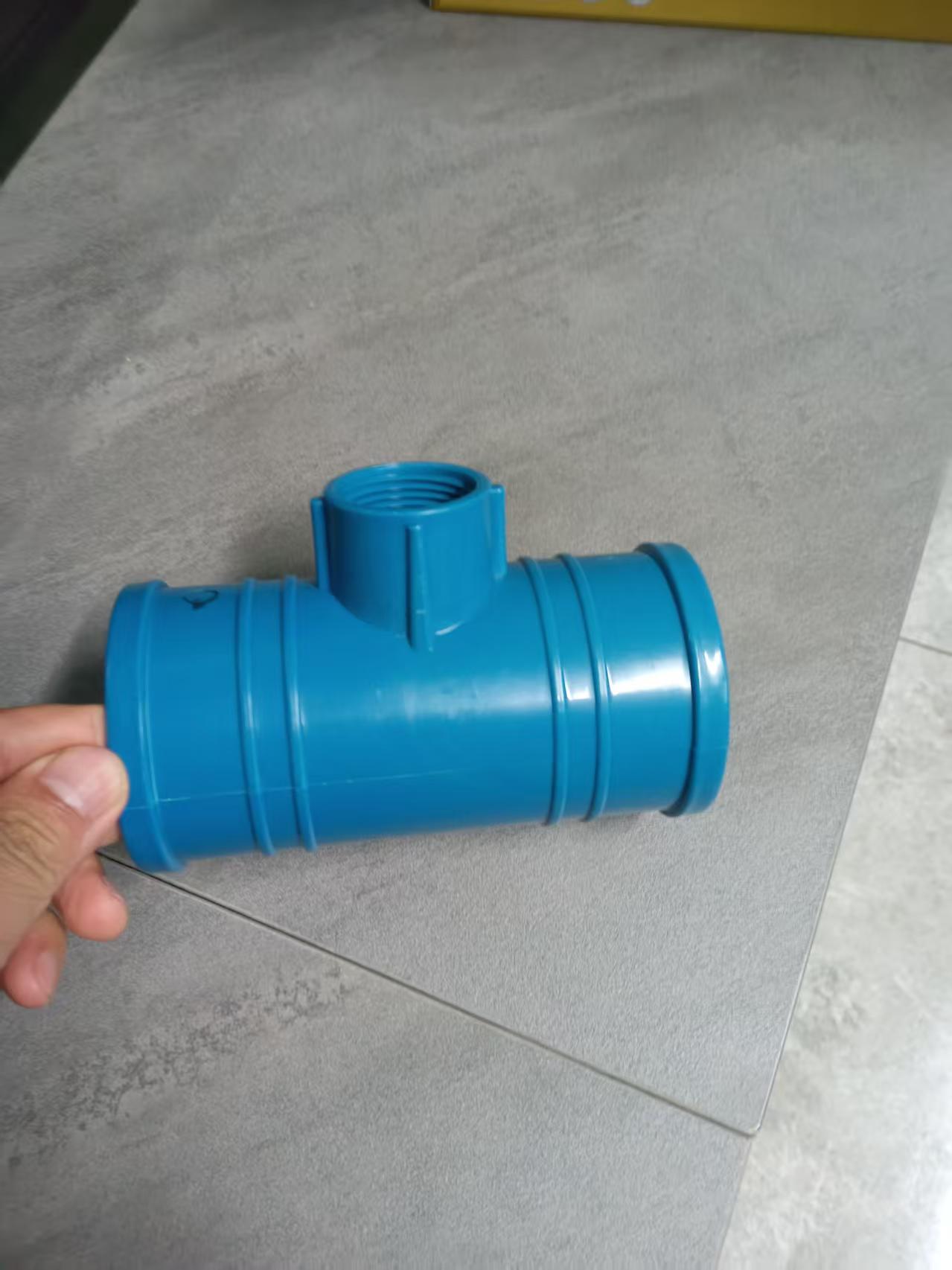

Integrated PP tee sprinkler riser base
01

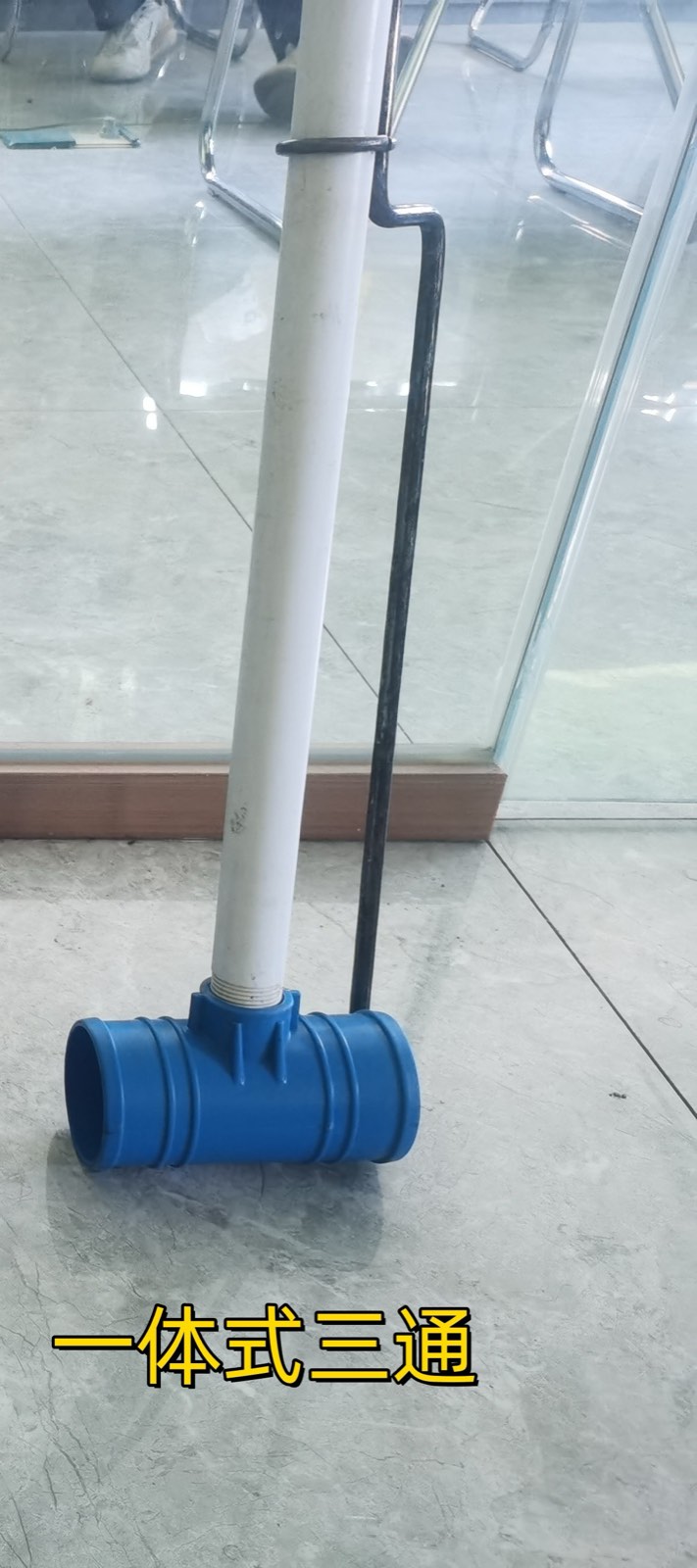

Integrated PP tee riser base connection overview
02
03

Integrated PP Tee Riser Base

One-piece PP tee for a simple and dependable sprinkler riser connection.

Material
PP
Size options
Ø63 / Ø75 mm
Structure
Integrated one-piece tee

SUB-SERIES 05 · RISER ACCESSORIES

Sprinkler Riser Accessories

PP connectors and valves for Ø32 mm riser assemblies, plus iron hose clamps in multiple sizes.

CONNECTIONS, VALVES & CLAMPS

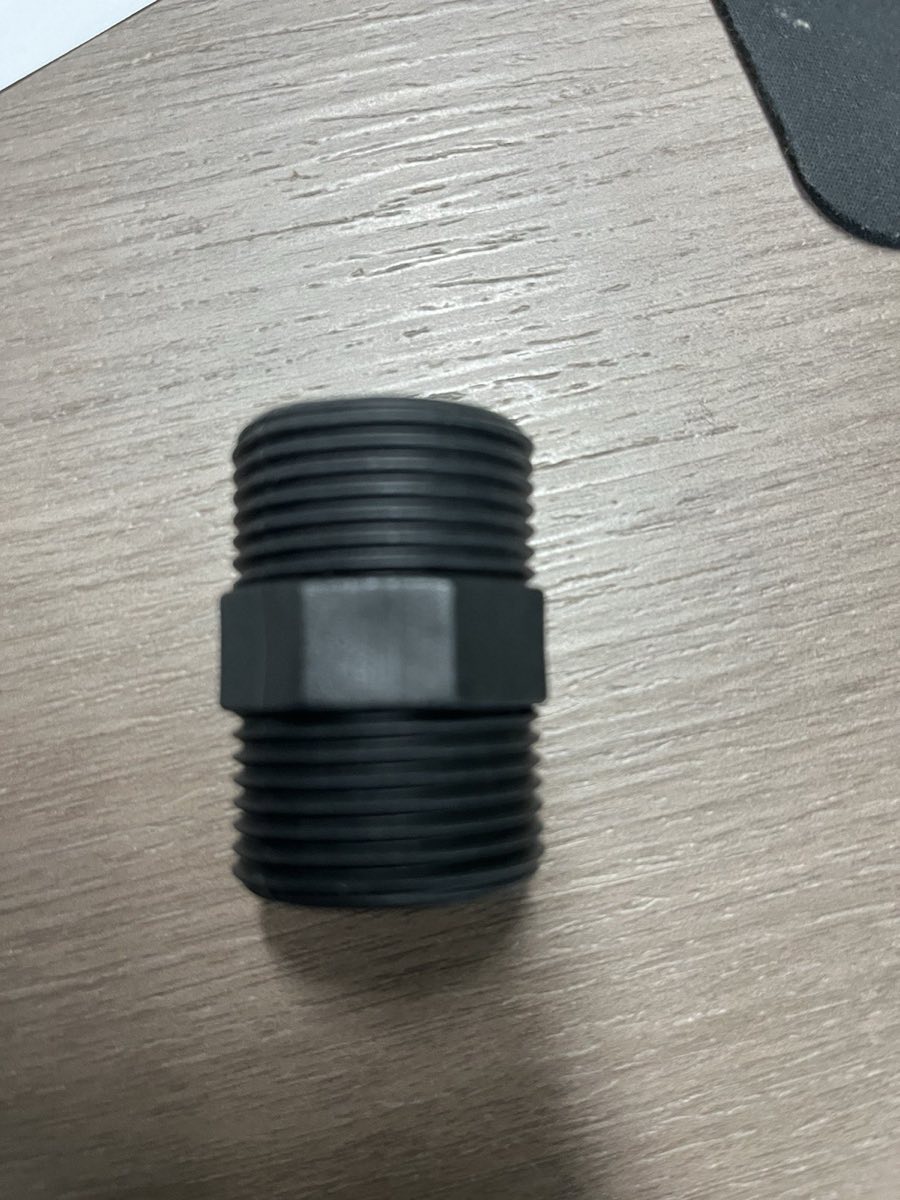

Male threaded PP sprinkler riser connector
01
01

Male Threaded Connector

A compact PP male-threaded connector for joining sprinkler riser components.

Function
Connection
Material
PP
Size
Ø32 mm

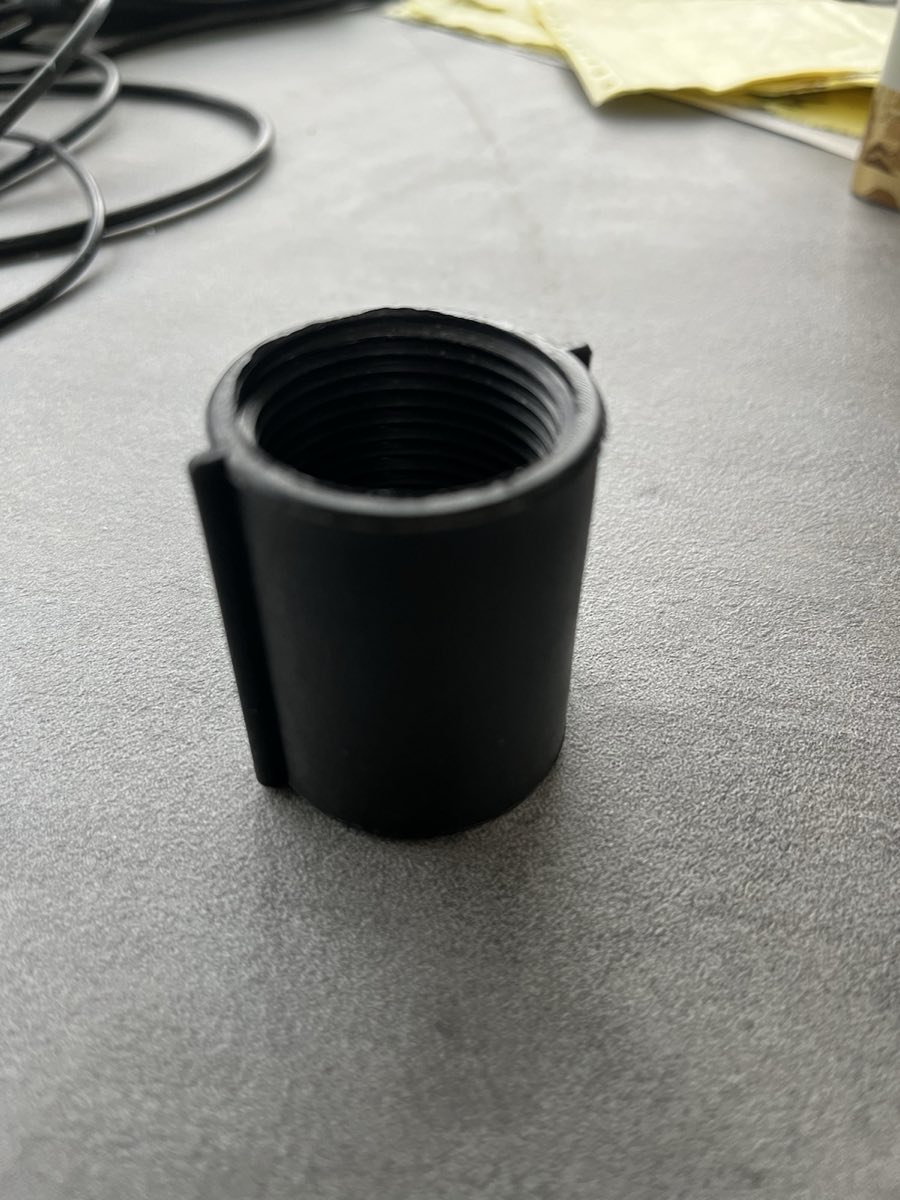

Female threaded PP sprinkler riser connector
02
02

Female Threaded Connector

A PP female-threaded coupling used to connect and extend sprinkler riser assemblies.

Function
Connection
Material
PP
Size
Ø32 mm

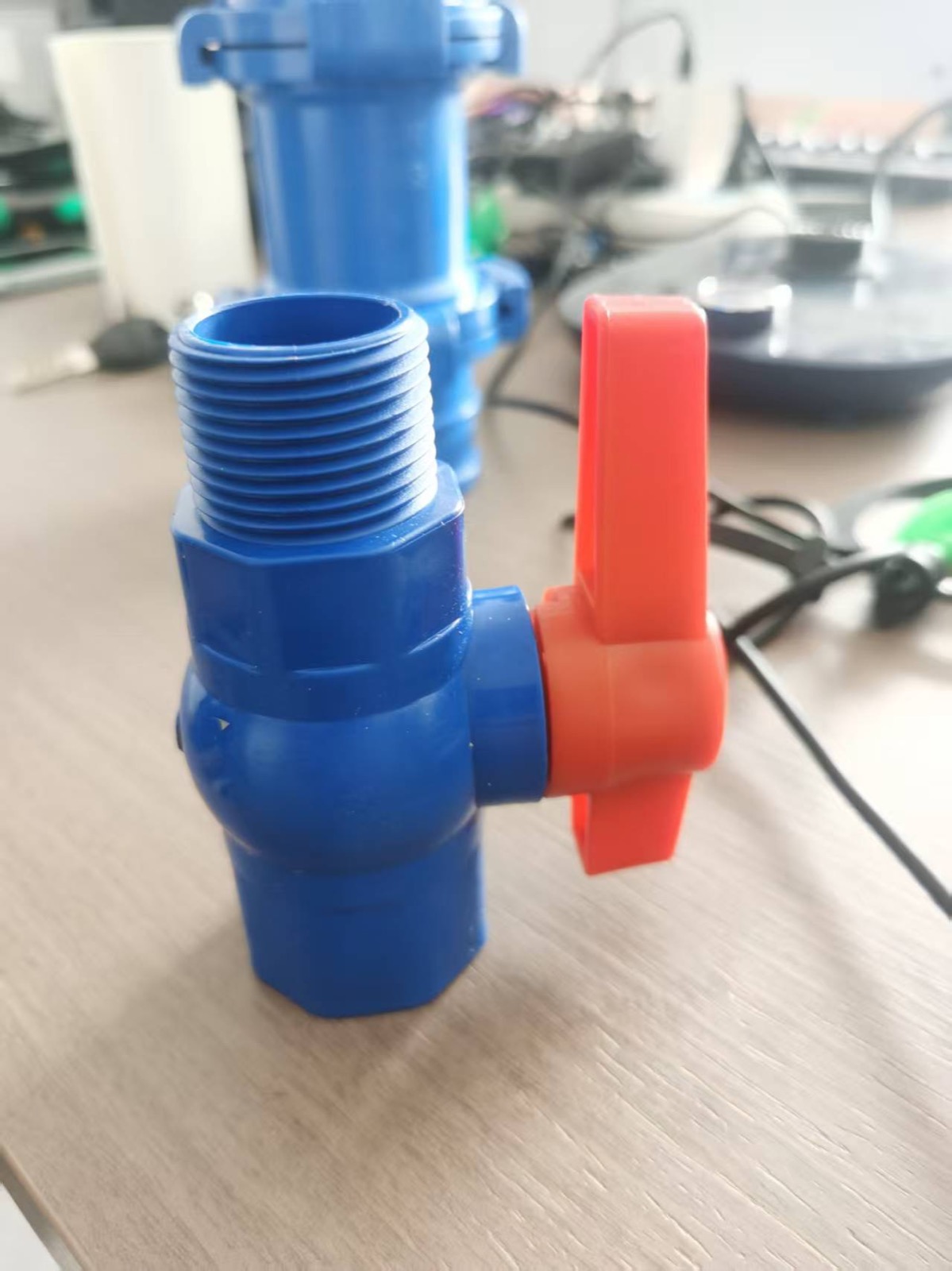

Male and female threaded PP sprinkler riser ball valve
03
03

Male/Female Threaded Ball Valve

A PP ball valve combining male and female threads for both connection and flow shutoff.

Function
Connection · shutoff
Material
PP
Thread size
32 mm male / female

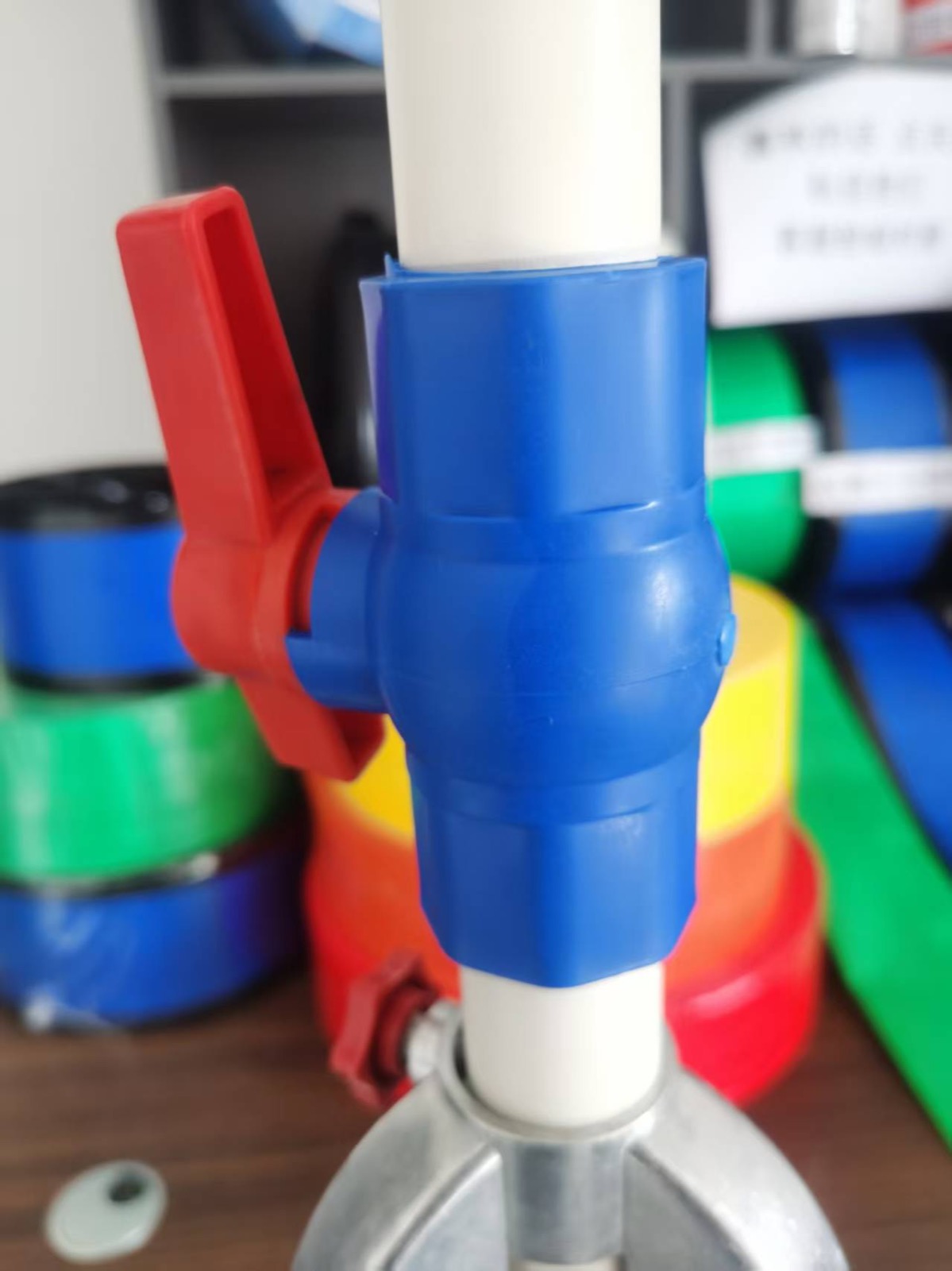

Female threaded PP sprinkler riser ball valve
04
04

Female Threaded Ball Valve

A PP female-threaded ball valve for riser connection, height extension and flow shutoff.

Function
Extension · shutoff
Material
PP
Thread size
32 mm female

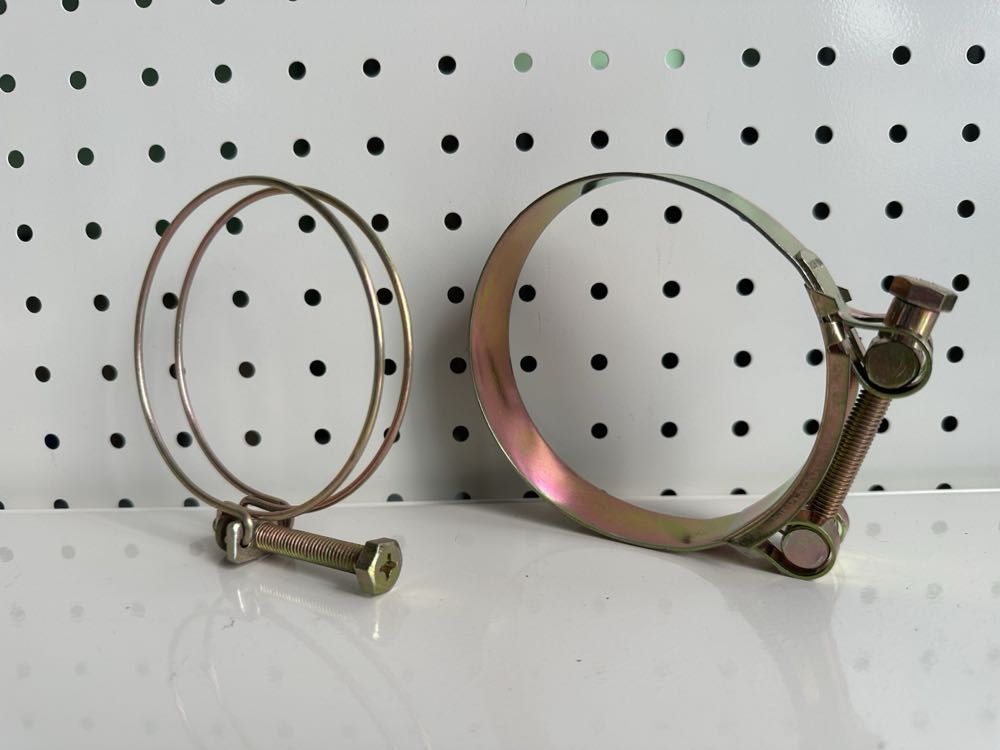

Iron irrigation hose clamps in multiple sizes
05
05

Hose Clamp

An iron hose clamp for securing irrigation hose and sprinkler connections.

Function
Connection fastening
Material
Iron
Size
Multiple sizes available
