Micro-spray Tape

MICRO-SPRAY TAPE

Two structures. One reliable irrigation solution.

Our micro-spray tape is available in green woven and double-edge pressed versions. Both are designed for quick installation, large spray coverage and dependable irrigation across orchards, cash crops and vegetable fields.

GREEN WOVEN SERIES

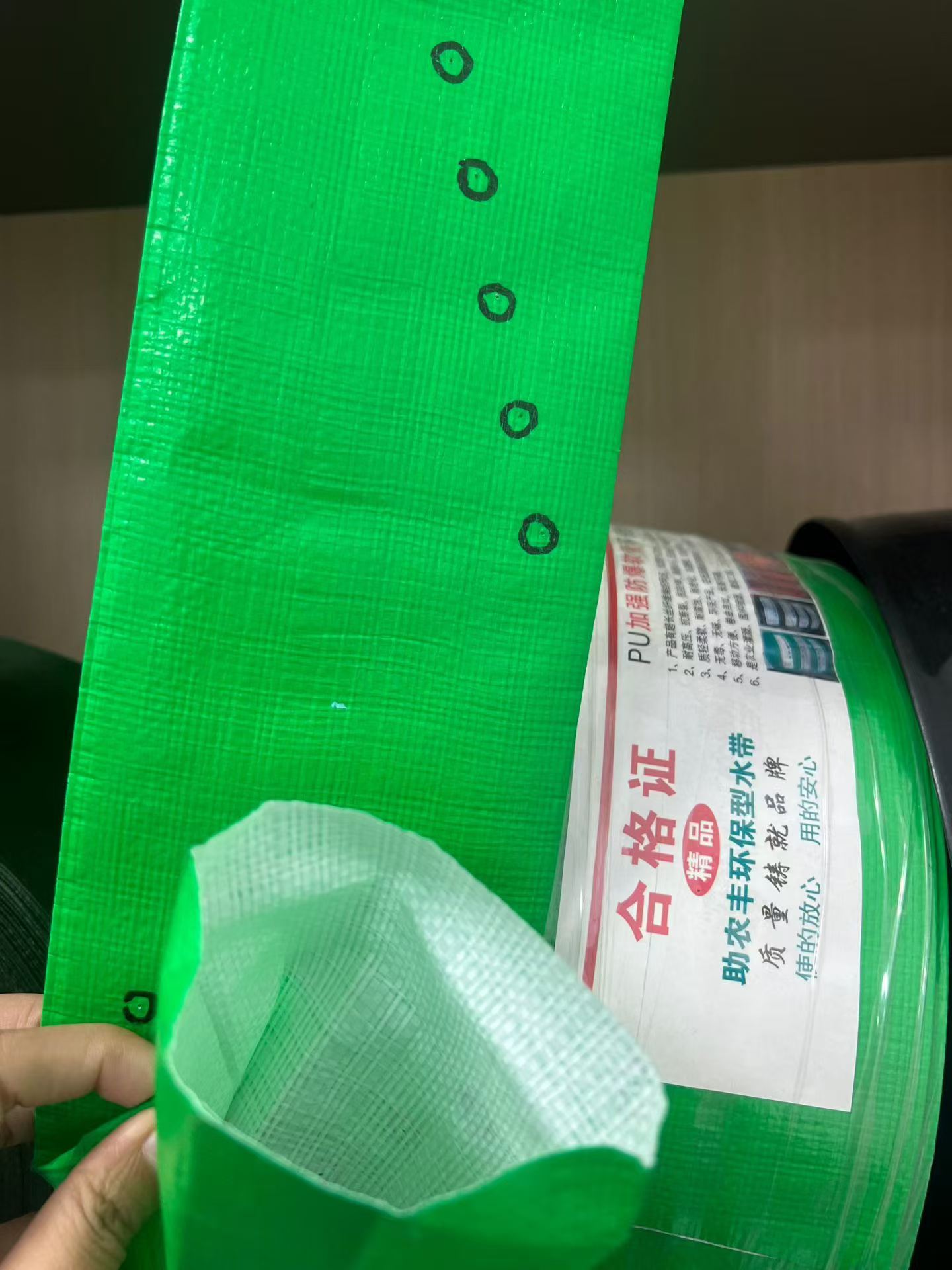

Green Woven Micro-spray Tape

Close-up of green woven PE micro-spray tape showing the reinforced woven structure — PRODUCT DETAIL

SPRAY DISPLAY VIDEO

Manufactured from high-quality PE woven material for excellent tensile resistance and dependable field use. Its lightweight roll format makes installation fast while delivering broad, even spray coverage.

PE woven material
High tensile resistance
Wide spray coverage

DOUBLE-EDGE PRESSED SERIES

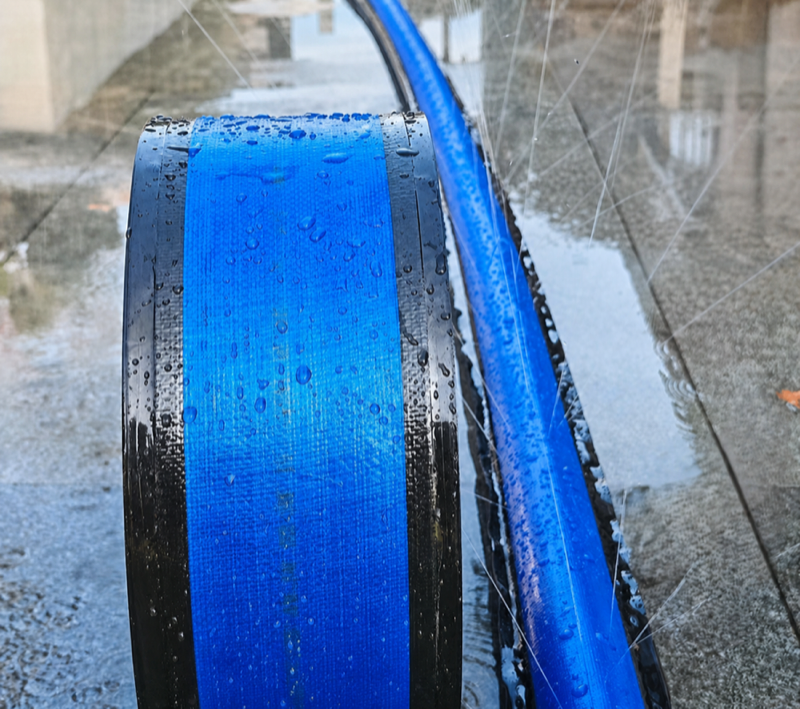

Double-edge Pressed Micro-spray Tape

SPRAY DISPLAY VIDEO

Special pressed structures along both edges help prevent rolling, side turning and twisting during operation. The tape remains stable in the field, supporting more uniform water distribution from near to far.

Anti-roll edge structure
Stable operation
Uniform water distribution

CONFIGURATION OPTIONS

Flexible nozzle patterns and made-to-order dimensions

01Nozzle configurations

3-hole, 5-hole, 7-hole and 9-hole options.

02Hole patterns

S-shaped holes and diagonal straight holes are available.

03Customization

Thickness, hole spacing and dimensions can be produced to order.

04OEM service

OEM branding and specification customization are supported.

TECHNICAL DATA

Standard Specifications

These base specifications apply to the green woven and double-edge pressed series. Final dimensions and hole layouts can be customized.

Size	Roll Length	Folded Width	Wall Thickness	Holes / Group	Hole Spacing	Group Spacing	Flow Rate	Spray Width	Working Pressure	Roll Diameter	Roll Weight
25 mm / 1 in	100 m	4.5 cm	0.25 mm	3	1.5 cm	16.5 cm	3 m³/h	2–3 m	0.4 MPa	30 cm	1.98 kg
25 mm / 1 in	100 m	4.5 cm	0.25 mm	5	2 cm	16.5 cm	4 m³/h	2–3 m	0.4 MPa	30 cm	1.98 kg
32 mm / 1.2 in	100 m	5 cm	0.25 mm	5	2.3 cm	17 cm	5 m³/h	3–3.5 m	0.4 MPa	30 cm	2.3 kg
32 mm / 1.2 in	100 m	5 cm	0.25 mm	7	2 cm	15 cm	7 m³/h	3–3.5 m	0.4 MPa	30 cm	2.3 kg
40 mm / 1.5 in	100 m	6.3 cm	0.25 mm	5	2.2 cm	16 cm	7 m³/h	3–4 m	0.4 MPa	30 cm	2.7 kg
40 mm / 1.5 in	100 m	6.3 cm	0.25 mm	7	2.4 cm	16 cm	8 m³/h	3–4 m	0.4 MPa	30 cm	2.7 kg
50 mm / 2 in	100 m	8.2 cm	0.25 mm	7	2.2 cm	16 cm	9 m³/h	4–5 m	0.4 MPa	30 cm	3.3 kg
50 mm / 2 in	100 m	8.2 cm	0.25 mm	S-hole	5.8 cm	Continuous	8 m³/h	4–5 m	0.4 MPa	30 cm	3.3 kg
65 mm / 2.5 in	100 m	10.2 cm	0.25 mm	9	2 cm	16 cm	12 m³/h	5–6 m	0.4 MPa	30 cm	4 kg
65 mm / 2.5 in	100 m	10.2 cm	0.25 mm	11	2 cm	16 cm	13 m³/h	5–6 m	0.4 MPa	30 cm	4 kg
65 mm / 2.5 in	100 m	10.2 cm	0.25 mm	S-hole	6.3 cm	Continuous	12 m³/h	5–6 m	0.4 MPa	30 cm	4 kg
75 mm / 3 in	100 m	12.2 cm	0.25 mm	9	2.5 cm	15 cm	14 m³/h	6–8 m	0.4 MPa	30 cm	4.8 kg
75 mm / 3 in	100 m	12.2 cm	0.25 mm	11	2 cm	15 cm	15 m³/h	6–8 m	0.4 MPa	30 cm	4.8 kg
75 mm / 3 in	100 m	12.2 cm	0.25 mm	S-hole	5.6 cm	Continuous	14 m³/h	6–8 m	0.4 MPa	30 cm	4.8 kg

COMMON FITTINGS

Connection options for every field layout

A practical range of connectors, elbows, tees and valves for micro-spray tape installation and branch-line control.

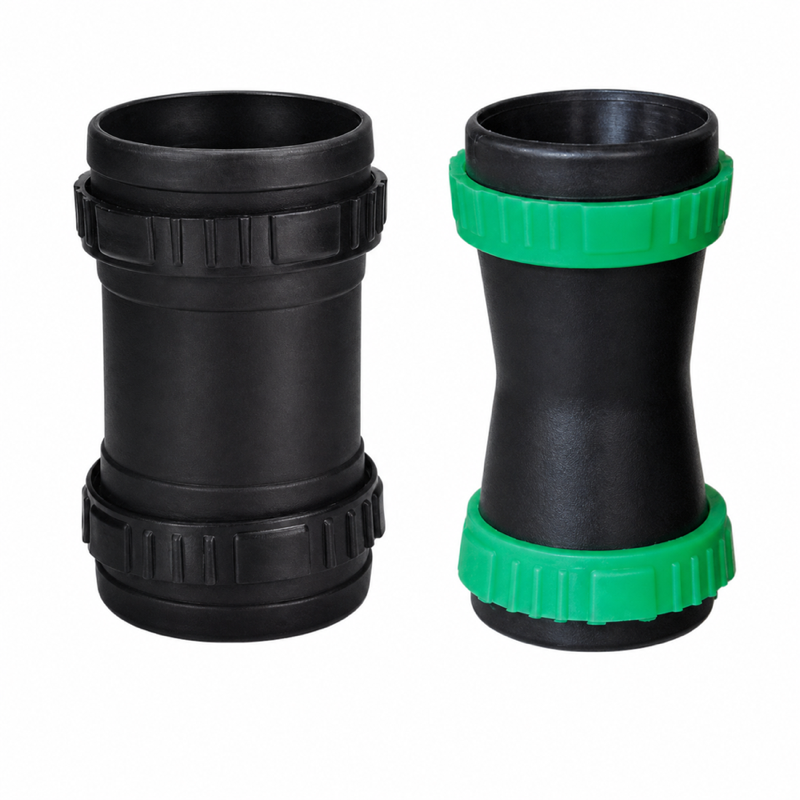

Pull-ring Straight Connector

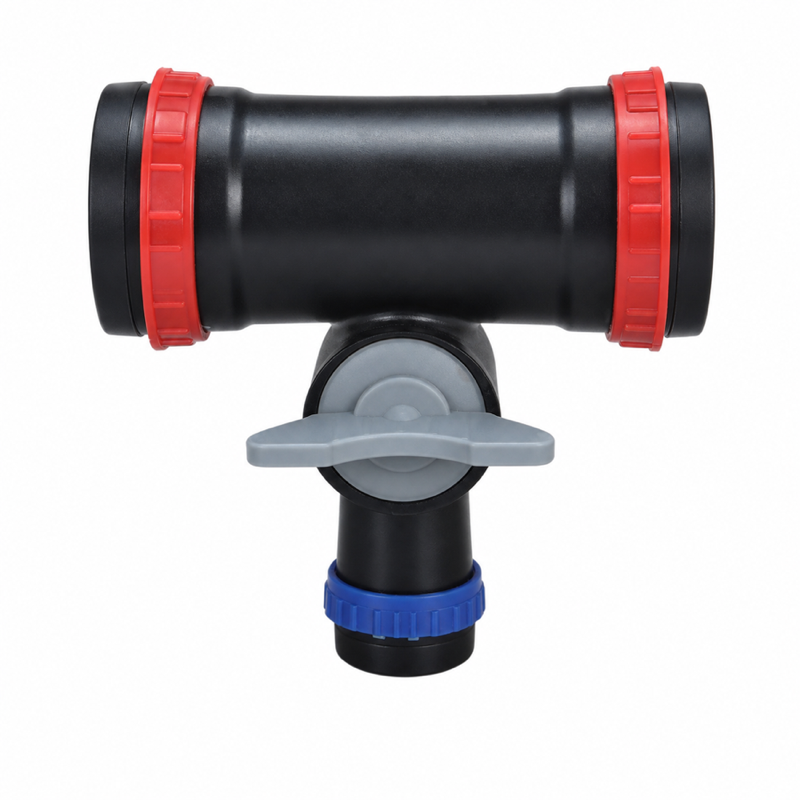

Pull-ring Three-way Valve

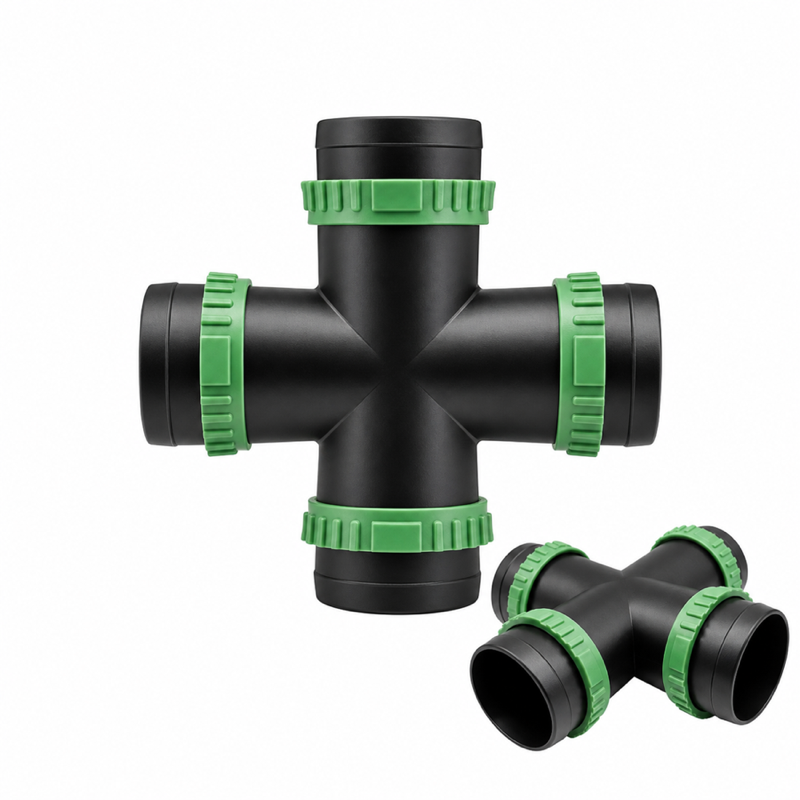

Pull-ring Four-way Connector

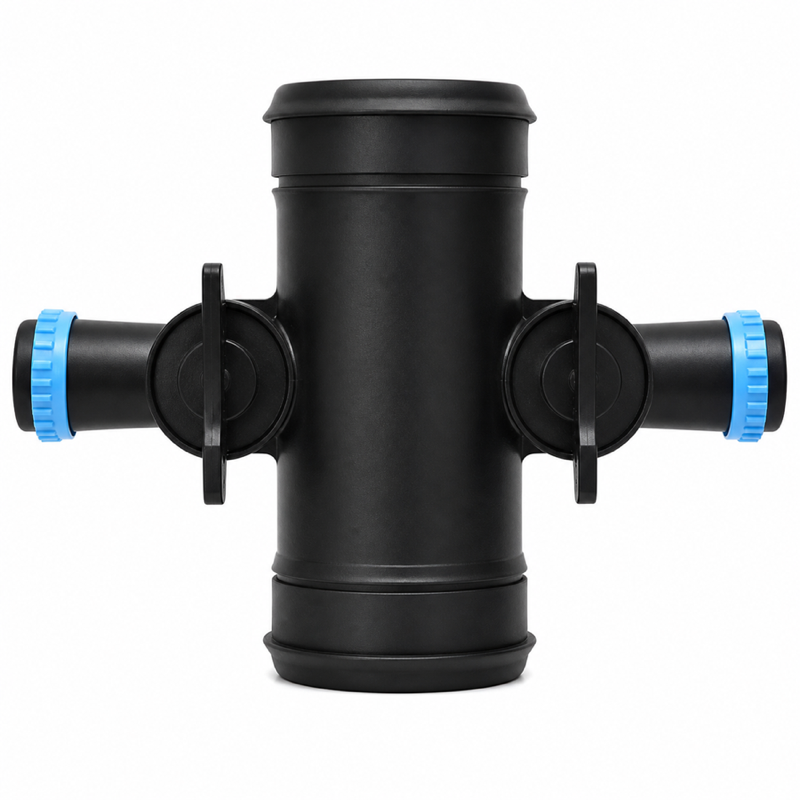

Black four-way distribution fitting with two shutoff valves

Four-way Distribution Valve

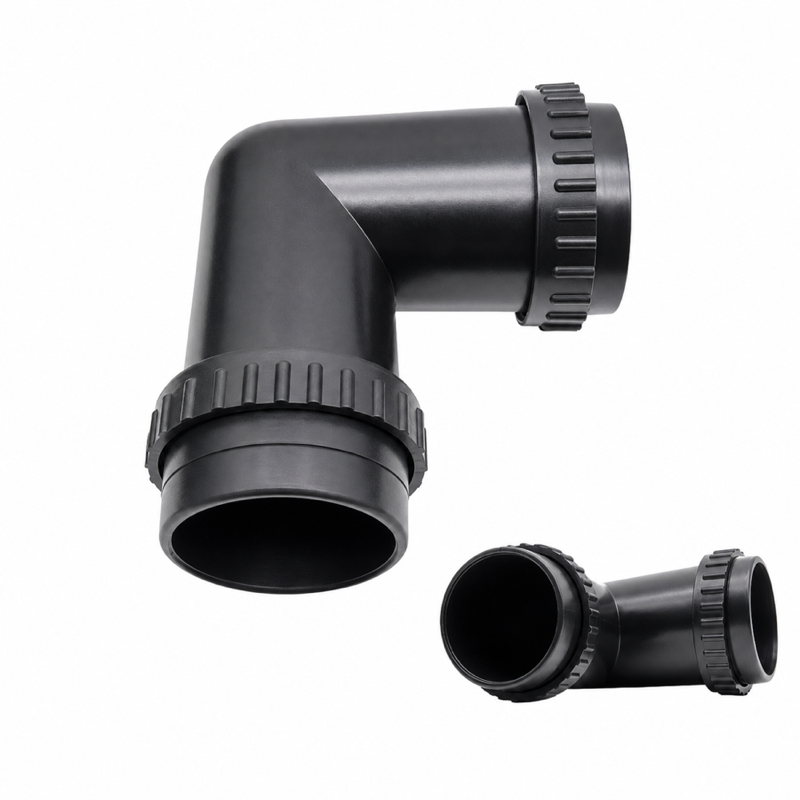

Pull-ring Elbow

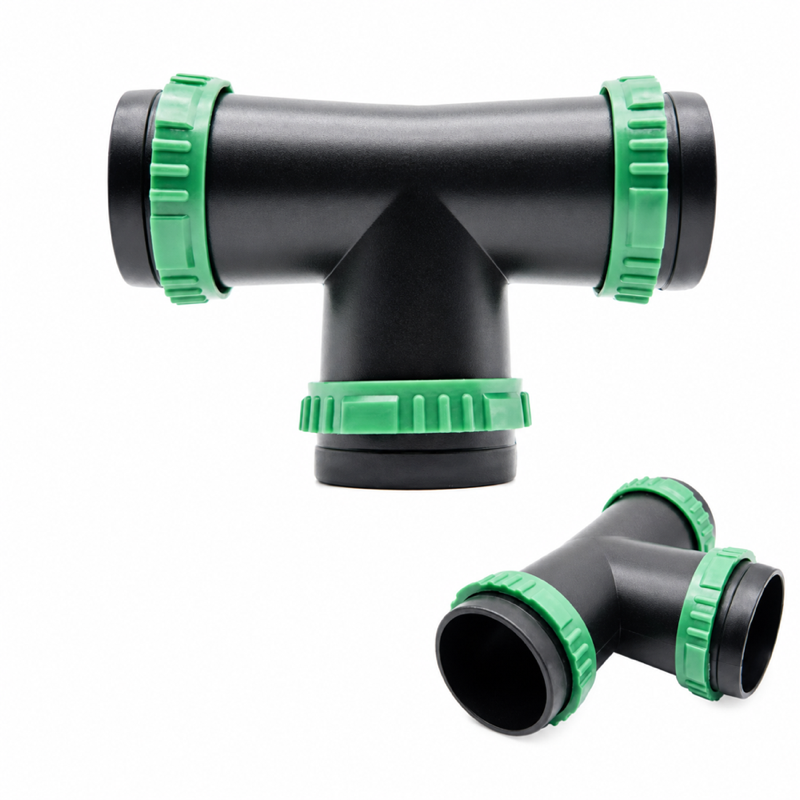

Pull-ring Tee

Black pull-ring layflat-tape bypass valve in two views

Pull-ring Bypass Valve
