PRODUCT CATEGORY

Fertigation Series

Four practical ways to introduce nutrients into an irrigation network—from intelligent multi-channel control to simple field-ready injectors.

01 / SMART FERTIGATION SYSTEM

Automatic dosing.
One connected system.

A complete water-and-fertilizer control platform for accurate mixing, scheduled irrigation and remote operation across multiple field zones.

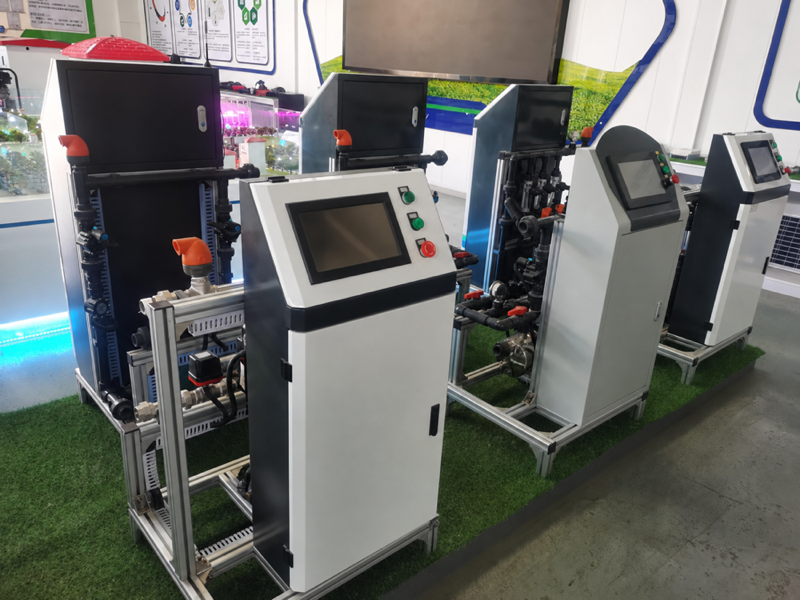

Unbranded smart integrated fertigation machines in a showroom
01 SMART FERTIGATION MACHINE

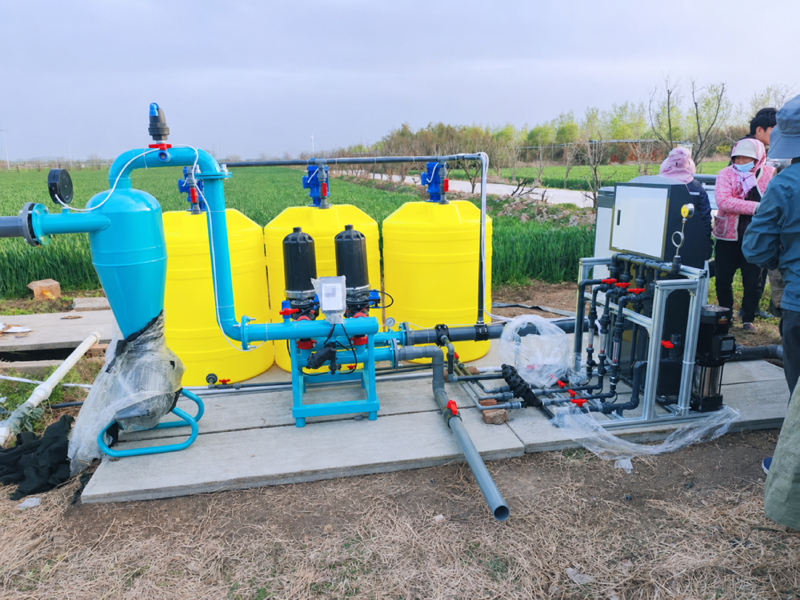

Smart fertigation system operating beside a crop field
02 FIELD OPERATION

TECHNICAL SPECIFICATIONS

Power supply
380 V
Channel options
Single, dual or multi-channel
Fertilizer pump
0.75 kW stainless-steel pump
Maximum suction
4 m³/h
Maximum head
46 m
Control
Touchscreen · Voice · App · Computer

CORE FUNCTIONS

  1. 01

    Timed and quantitative fertilizer injection with configurable mixing time

  2. 02

    Real-time monitoring of total and instantaneous fertilizer delivery

  3. 03

    Automatic control of headworks, valves, fertigation and rotation groups

  4. 04

    Fault monitoring, operating alarms and cloud-platform data upload

  5. 05

    RS485 / RS232 interfaces with optional 4G, 5G, LoRa, EC and pH expansion

  6. 06

    One-touch automatic mixing, fertilization and irrigation programs

FIELD INJECTION OPTIONS

Choose the driving method that fits the site.

Each product is paired with a real working image and a concise explanation of how fertilizer enters the irrigation flow.

02 / PASSIVE INJECTION

Venturi Fertilizer Injector

WORKING PRINCIPLE

Pressurized irrigation water accelerates through the narrowed Venturi throat. The increase in velocity creates a local pressure drop that draws fertilizer solution through the suction hose. The concentrate then mixes into the main flow and travels downstream without an electric motor.

NO EXTERNAL POWERBYPASS INSTALLATIONADJUSTABLE SUCTION

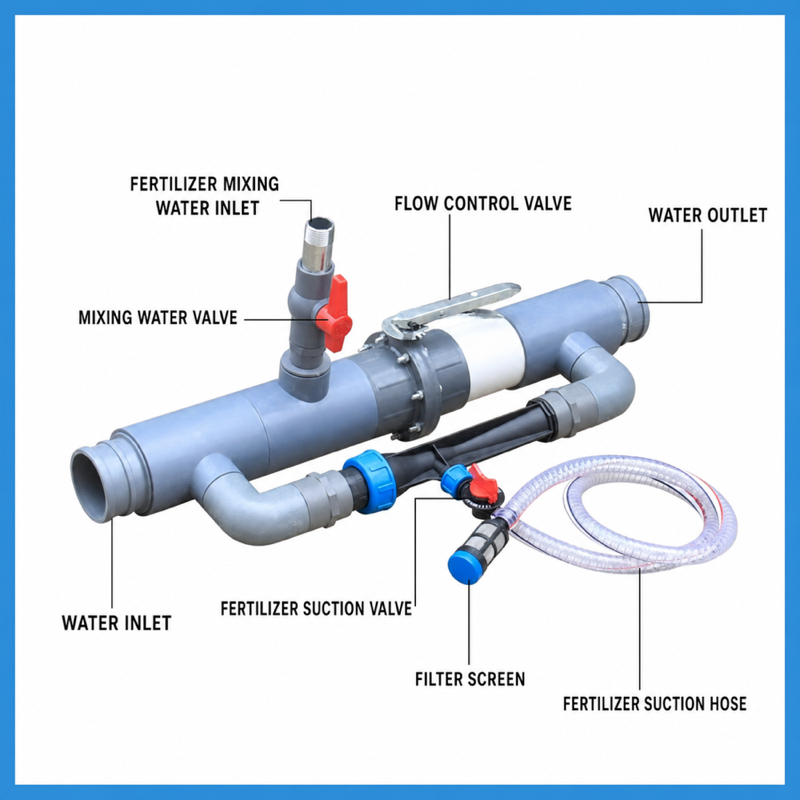

Venturi fertilizer injector with inlet, outlet and suction line
PRODUCT DETAIL

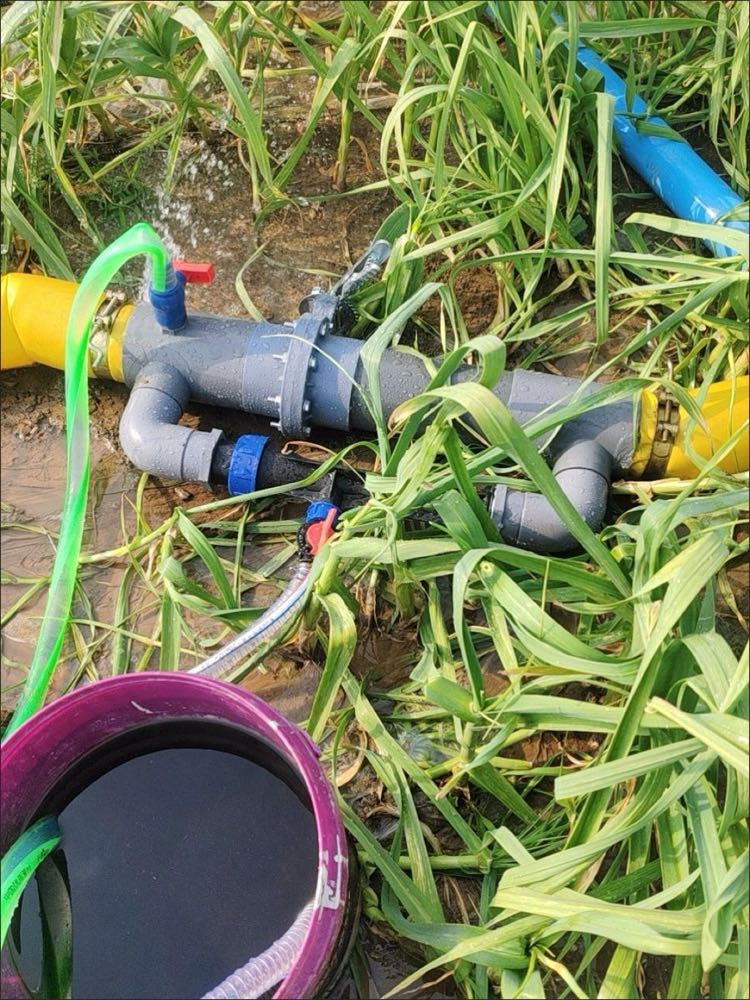

Venturi fertilizer injector operating in an agricultural field
FIELD OPERATION

03 / WATER-DRIVEN DOSING

Water-Powered Fertilizer Injector

WORKING PRINCIPLE

Installed directly in the water line, the injector uses water pressure and flow to drive a reciprocating hydraulic mechanism. The dosing action draws concentrate during the suction stroke and injects it during the return stroke, keeping fertilizer delivery proportional to the volume of water passing through the unit.

NO ELECTRICITYPROPORTIONAL DOSINGWATER-DRIVEN MECHANISM

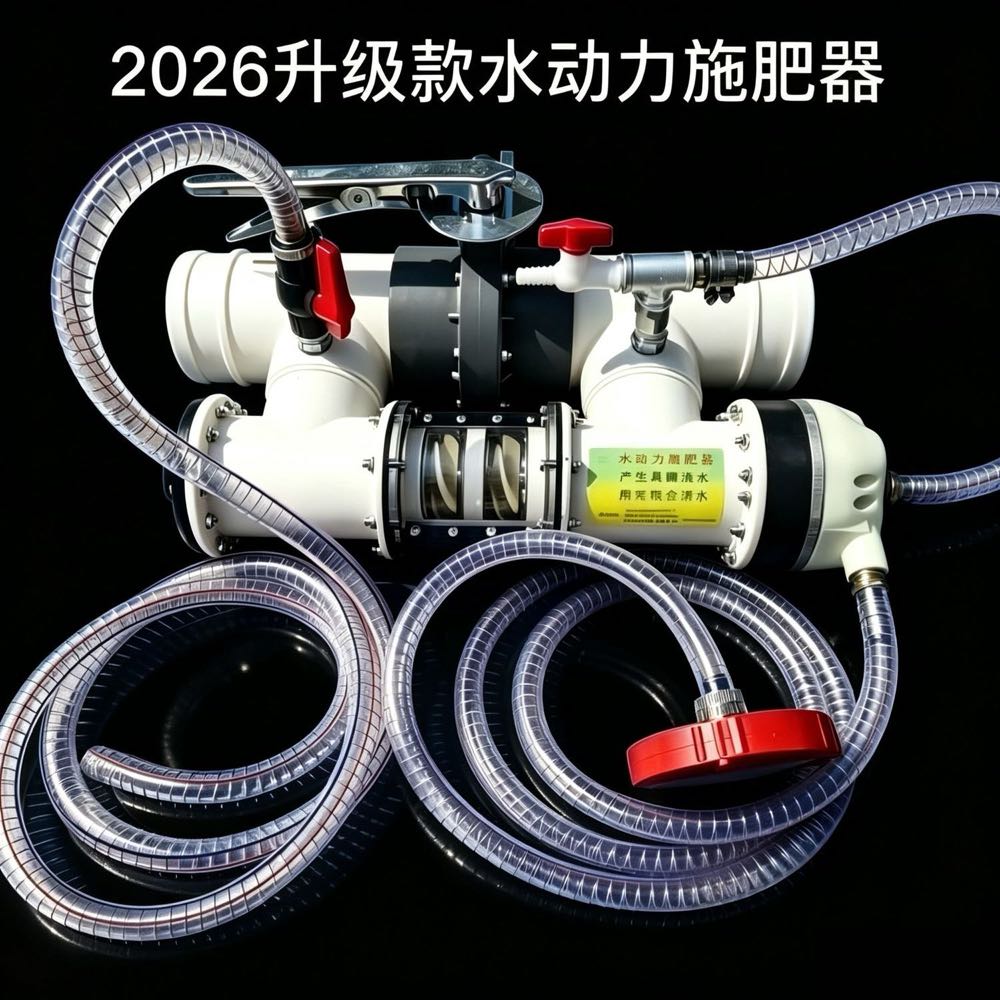

Water-powered proportional fertilizer injector
PRODUCT DETAIL

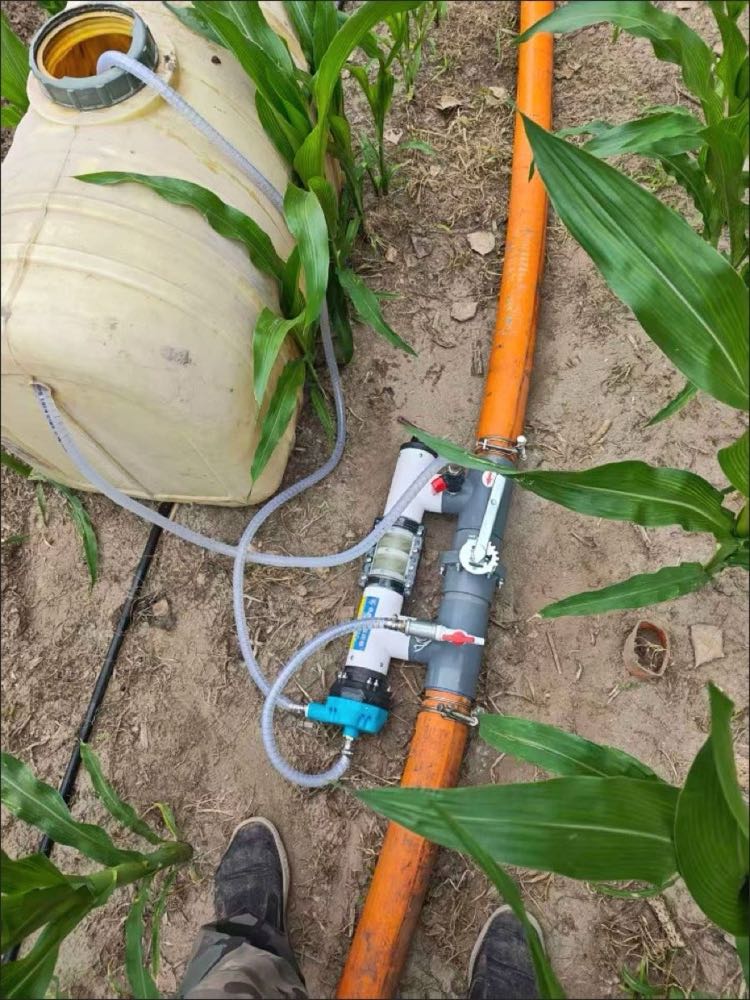

Water-powered fertilizer injector connected to a field irrigation line
FIELD OPERATION

04 / ACTIVE ELECTRIC DOSING

Electric Fertilizer Applicator

WORKING PRINCIPLE

An electric motor actively drives the pump mechanism. The suction cycle draws fertilizer solution through the inlet hose, while the discharge cycle pushes it through the outlet hose into the irrigation system or mixing tank. Delivery can be managed through operating time and the pump setting.

INDEPENDENT DRIVEACTIVE SUCTIONPORTABLE FIELD SETUP

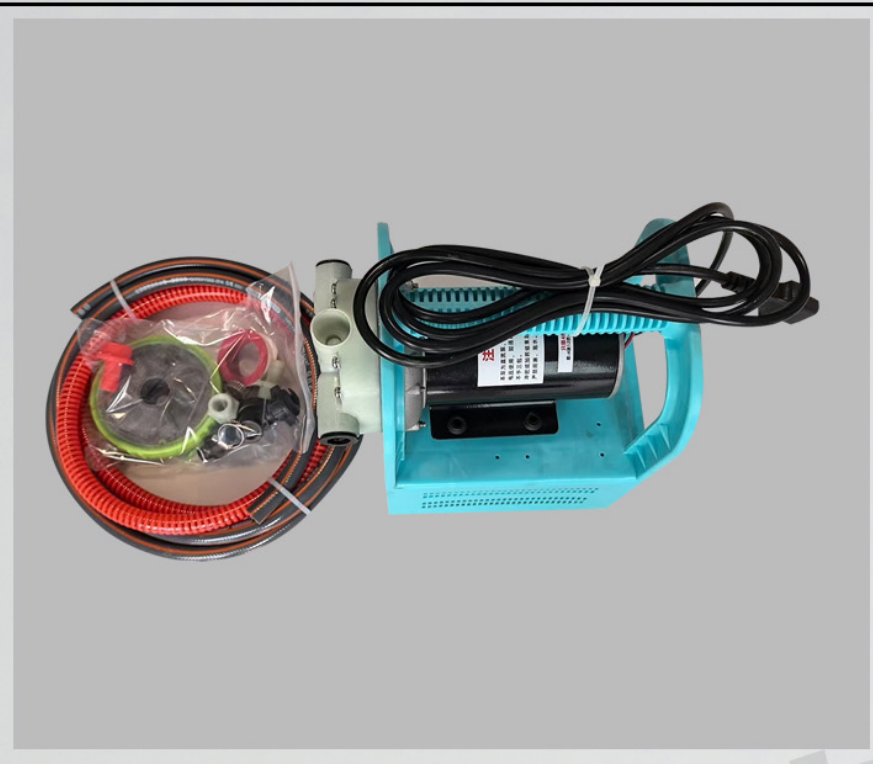

Portable electric fertilizer applicator kit with hoses
PRODUCT DETAIL

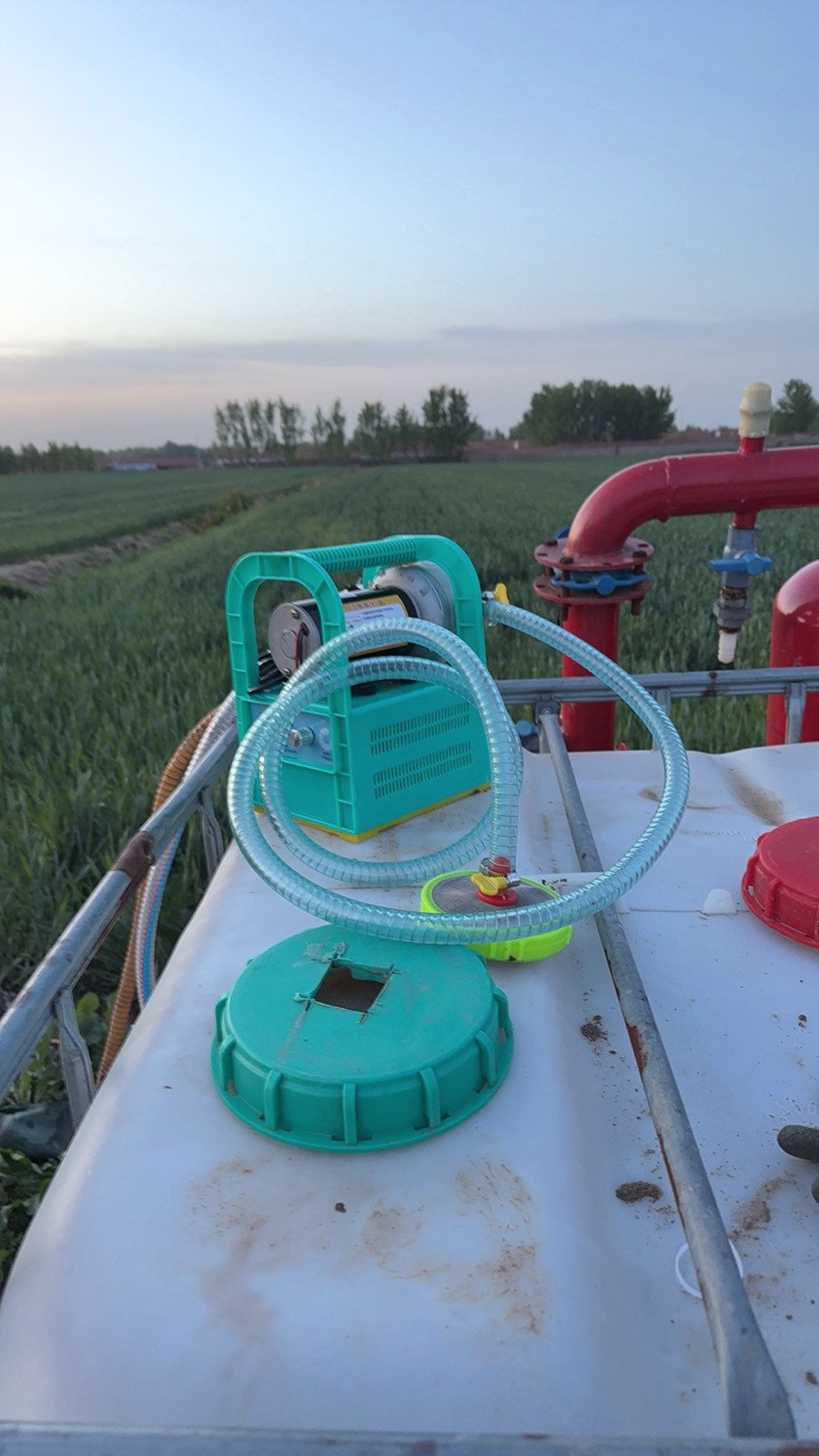

Electric fertilizer applicator working beside an irrigation tank
FIELD OPERATION

PROJECT MATCHING

Tell us your flow rate, pressure and irrigation layout.

We can recommend the appropriate injection method and configure channels, controls and accessories for your project.
