PRODUCT CATEGORY

Dripline Series

MICRO IRRIGATION SYSTEM

One line. Multiple ways to deliver water.

A flexible irrigation family for hanging micro-spray, ground-stake irrigation, pressure-compensating delivery and mountain orchard dripline. Select the head, tube size, outlet spacing and flow to match the field.

7 sprinkler headsHanging or ground-stakeCustom PE tubing

DRIPLINE DETAILIntegrated emitter construction

01 / HANGING SPRINKLER RANGE

Seven spray patterns for precise coverage

All seven heads can be installed as hanging sprinklers or combined with a ground stake. Product parameters below are reorganized from the supplied specification sheets for quick comparison.

MICRO SPRINKLER

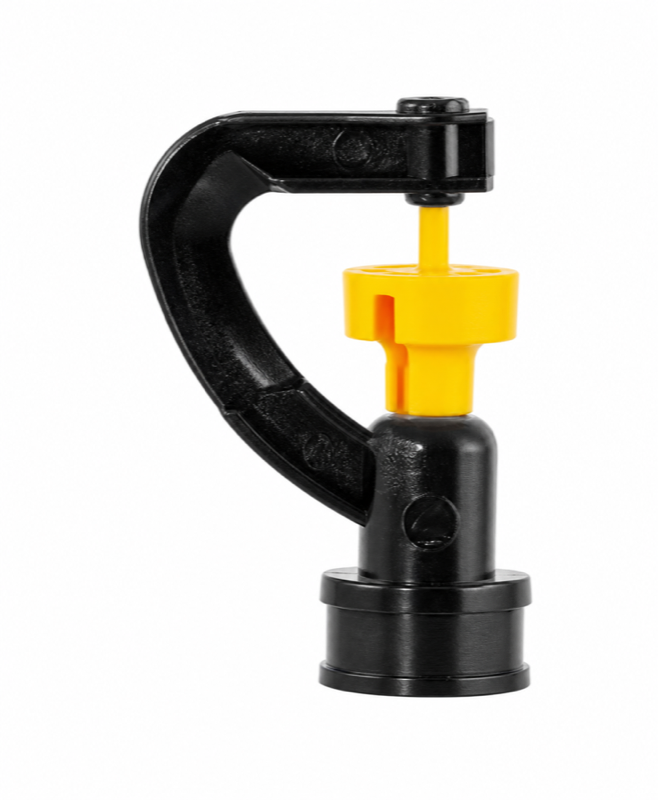

G-Type Rotary Sprinkler

SPRAY RADIUS2.8–3 m

FLOW100–120 L/h

PRESSURE2 bar

INLET7.58 mm

Pattern: 360° rotary spray
Best for: Vegetables · nursery · landscaping

MICRO SPRINKLER

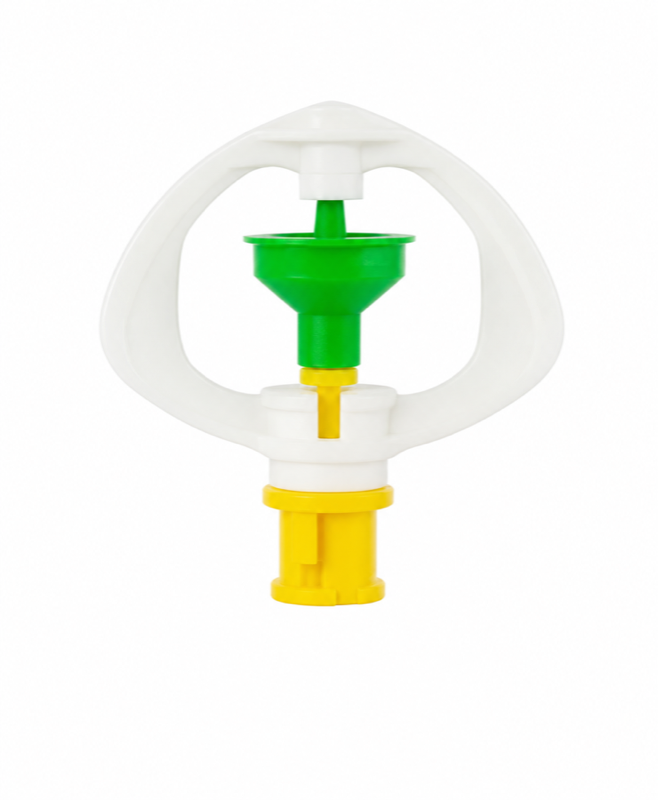

Lantern Rotary Sprinkler

SPRAY RADIUS3.5–4 m

FLOW160–170 L/h

PRESSURE2 bar

INLET6 mm

Pattern: 360° unobstructed rotary spray
Best for: Greenhouses · orchards

MICRO SPRINKLER

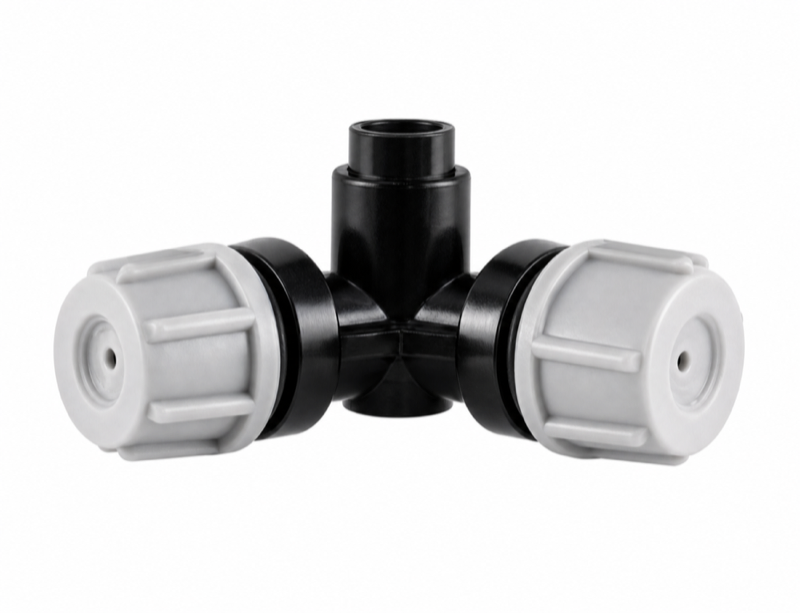

Cross Mist Sprinkler

SPRAY RADIUS0.8–1 m

FLOW60–70 L/h

PRESSURE2 bar

INLET6 mm

Pattern: Four-outlet atomizing spray
Best for: Greenhouses · seedling cultivation

$G-Type Refraction Sprinkler$ 04

MICRO SPRINKLER

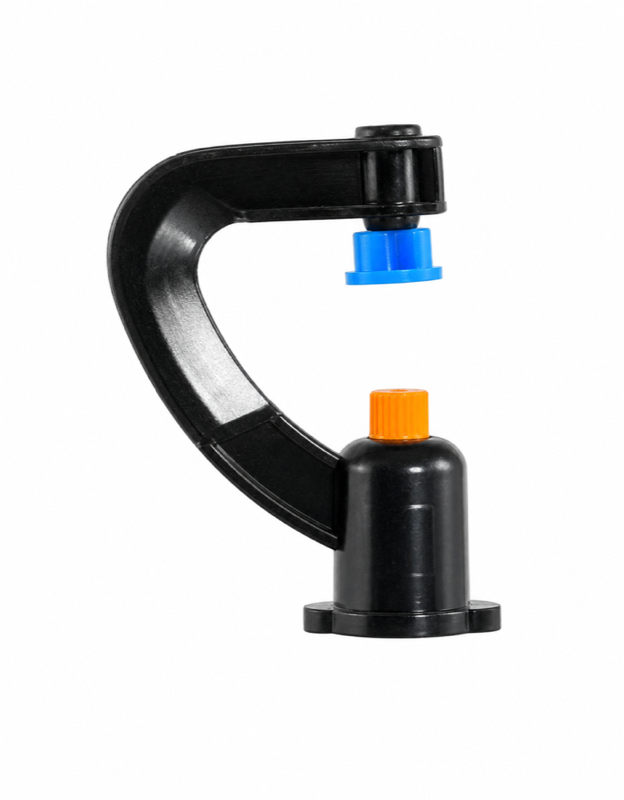

G-Type Refraction Sprinkler

SPRAY RADIUS1–1.3 m

FLOW100–120 L/h

PRESSURE2 bar

INLET7.58 mm

Pattern: 360° refractive micro-spray
Best for: Greenhouses · seedling cultivation

MICRO SPRINKLER

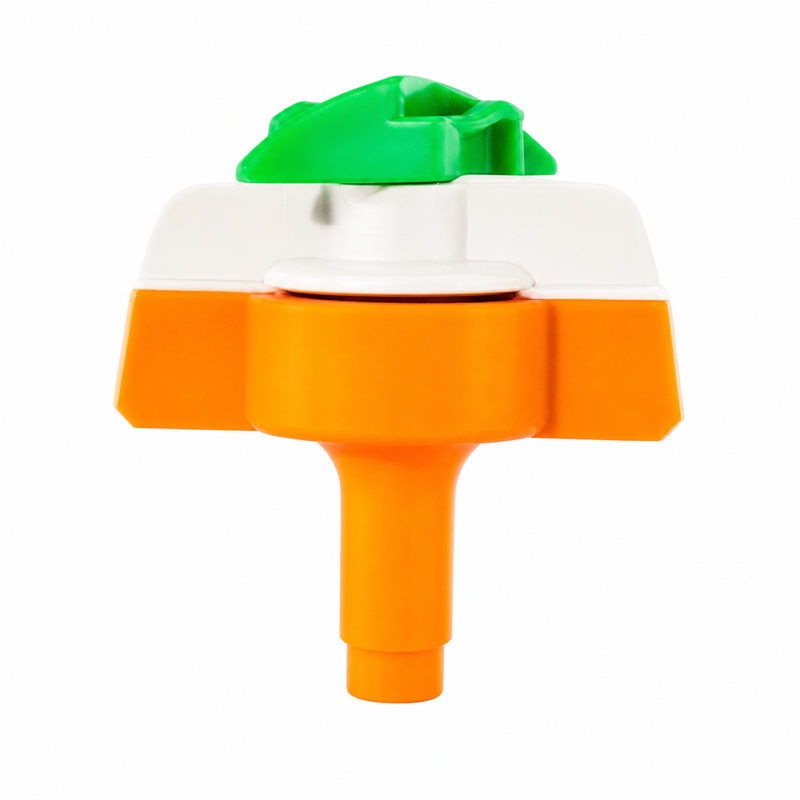

Full-Circle Rotary Sprinkler

SPRAY RADIUS3–3.5 m

FLOW100–120 L/h

PRESSURE2 bar

INLET6 mm

Pattern: 360° unobstructed rotary spray
Best for: Greenhouses · orchards

$Frame Refraction Sprinkler$ 06

MICRO SPRINKLER

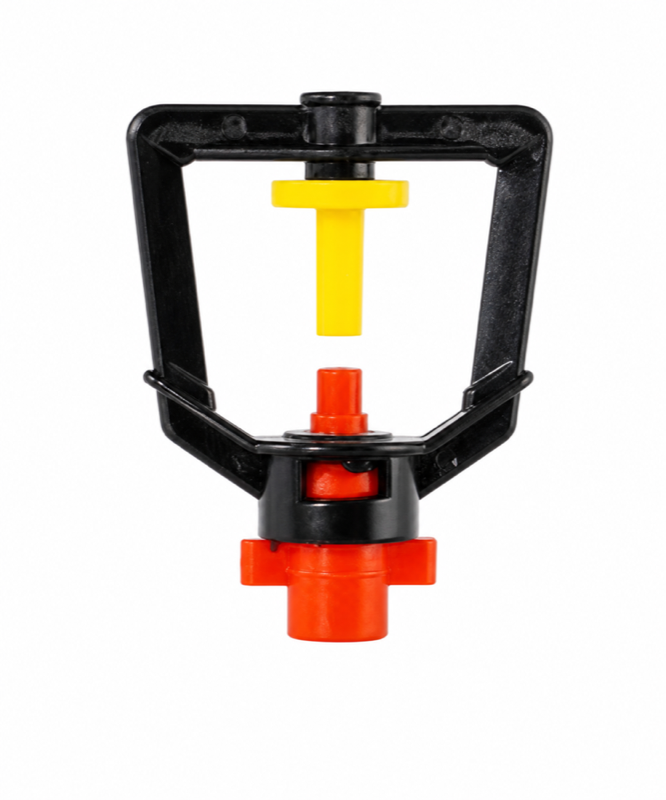

Frame Refraction Sprinkler

SPRAY RADIUS0.8–1 m

FLOW80–90 L/h

PRESSURE2 bar

INLET6 mm

Pattern: 360° refractive micro-spray
Best for: Greenhouses · seedling cultivation

MICRO SPRINKLER

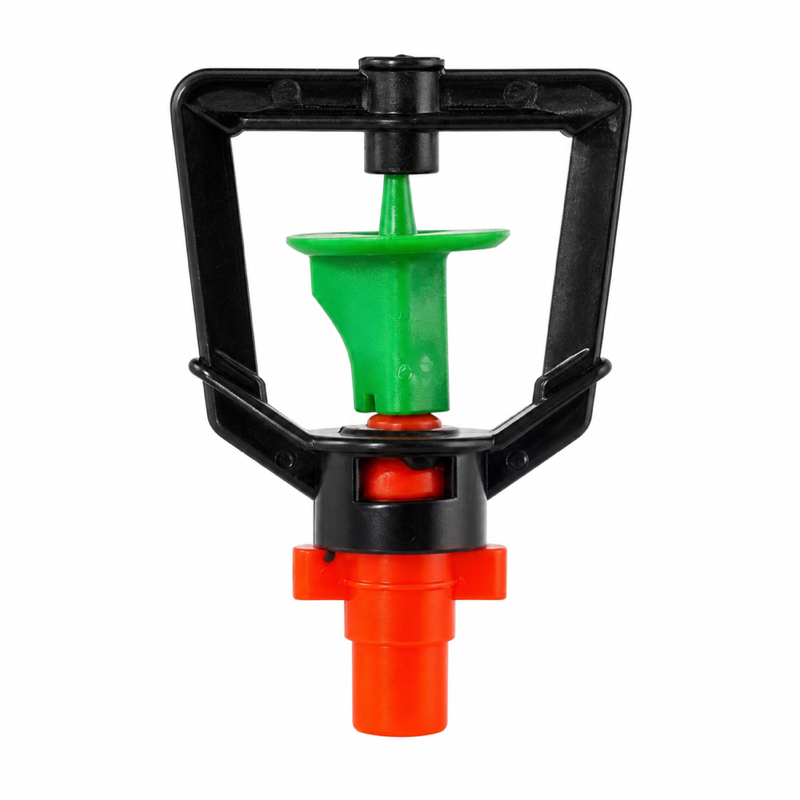

Frame Rotary Sprinkler

SPRAY RADIUS2.8–3 m

FLOW80–90 L/h

PRESSURE2 bar

INLET6 mm

Pattern: 360° rotary micro-spray
Best for: Greenhouses · seedling cultivation

02 / INSTALLATION

Two installation modes, one product range

Use suspended drops for greenhouse benches and protected growing, or mount the same heads on ground stakes for orchards, vegetables and landscape irrigation.

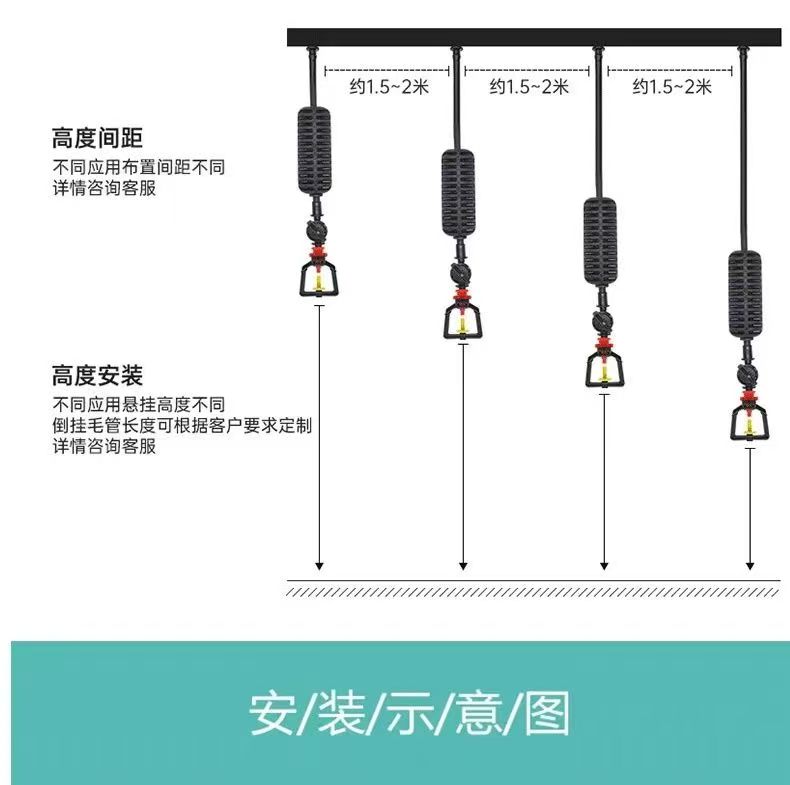

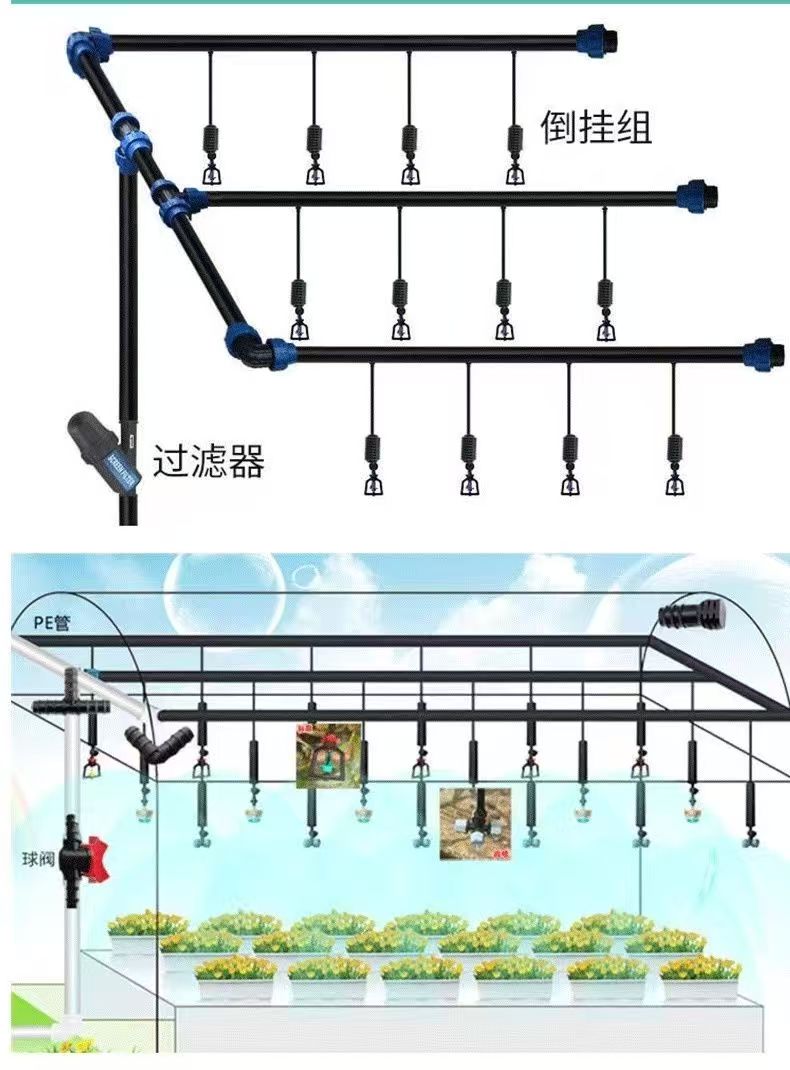

Hanging micro-sprinkler height and spacing installation diagram — HANGING INSTALLATION

Suspended line layout

Arrange heads approximately 1.5–2 m apart. Drop-tube length and hanging height can be adjusted for the crop canopy and required wetting pattern.

PE pipe hanging micro-sprinkler system with filter and valve — SYSTEM CONNECTION

Filtered PE supply line

Connect the PE main line through a filter and control valve, then position each drop above the planting row for clean, serviceable distribution.

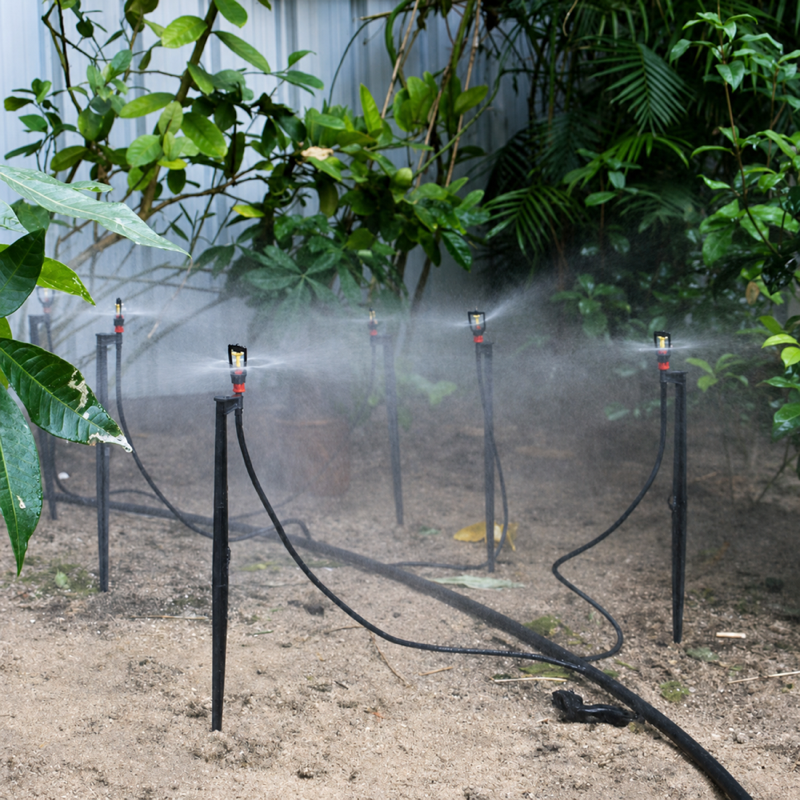

Ground-stake micro-sprinklers operating among orchard plants — GROUND-STAKE INSTALLATION

Ground-stake micro-spray

The same seven sprinkler heads can be mounted on ground stakes for low-level orchard, vegetable and landscape irrigation. Stake height and branch-tube length can be matched to the crop.

03 / GROUND-STAKE OPTIONS

Fountain coverage close to the root zone

These two fountain heads are presented as application options; final operating parameters can be confirmed according to the selected PE line and field pressure.

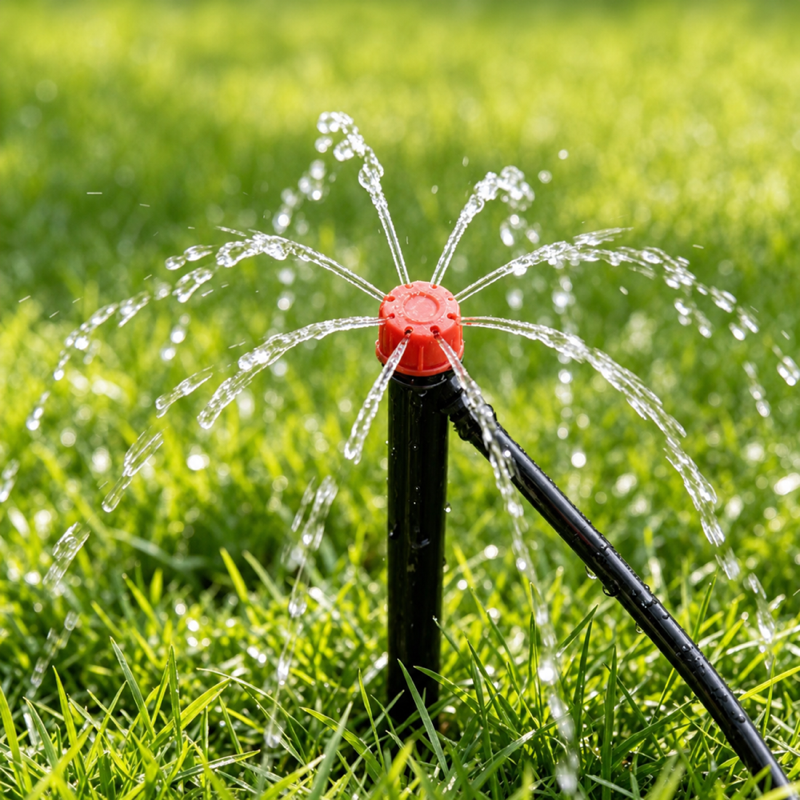

Red-cap ground-stake fountain sprinkler operating on grass

GROUND-STAKE / 01

Red-cap Fountain Emitter

Multi-stream low-level coverage for planting beds and landscape areas.

GROUND-STAKE / 02

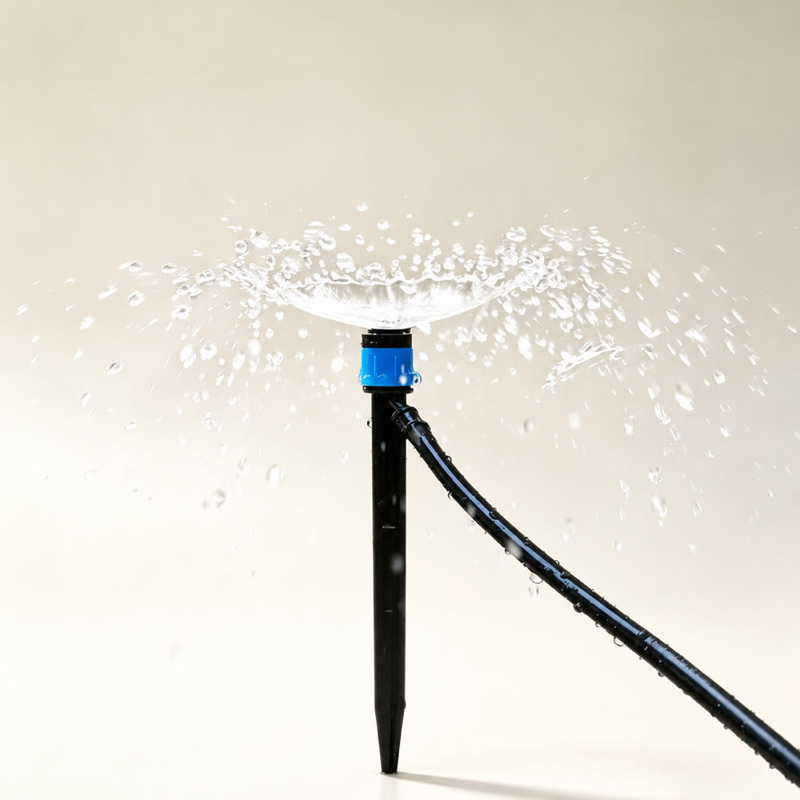

Blue Fountain Sprinkler

Broad fountain-style distribution for localized, even wetting.

04 / PRESSURE COMPENSATING

Consistent output across changing elevations

Pressure-compensating emitters help maintain a stable discharge at different heights along the same irrigation line—especially useful for sloped land and mountain orchards.

More uniform flow from upper to lower planting zones
Color options support different system selections
Suitable for precise root-zone irrigation

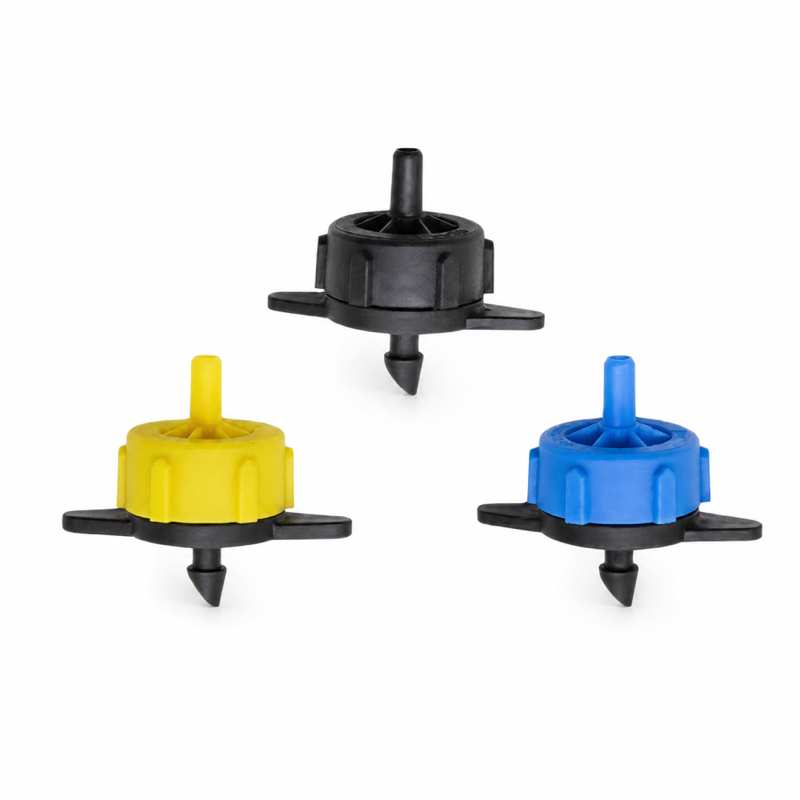

Black, yellow and blue pressure-compensating drip emitters

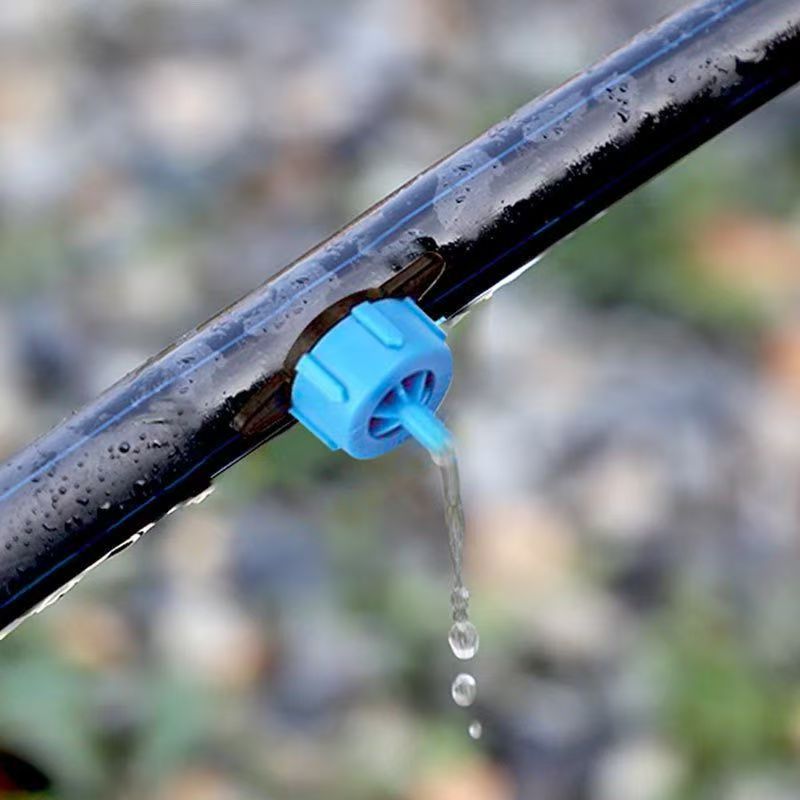

Blue pressure-compensating emitter installed on a black PE line

05 / PE SUPPLY PIPE

The flexible backbone for every sprinkler setup

PE pipe is available in different diameters and wall thicknesses to suit branch lines, hanging sprinklers, ground stakes and localized drip delivery.

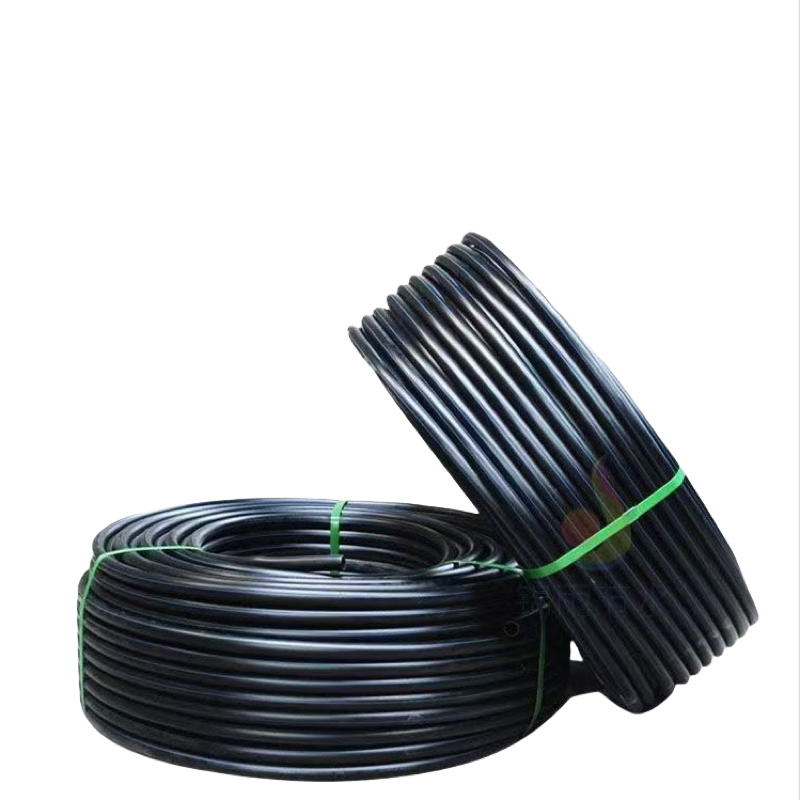

Two coils of black PE irrigation pipe — COILED PE PIPE · MULTIPLE SIZES

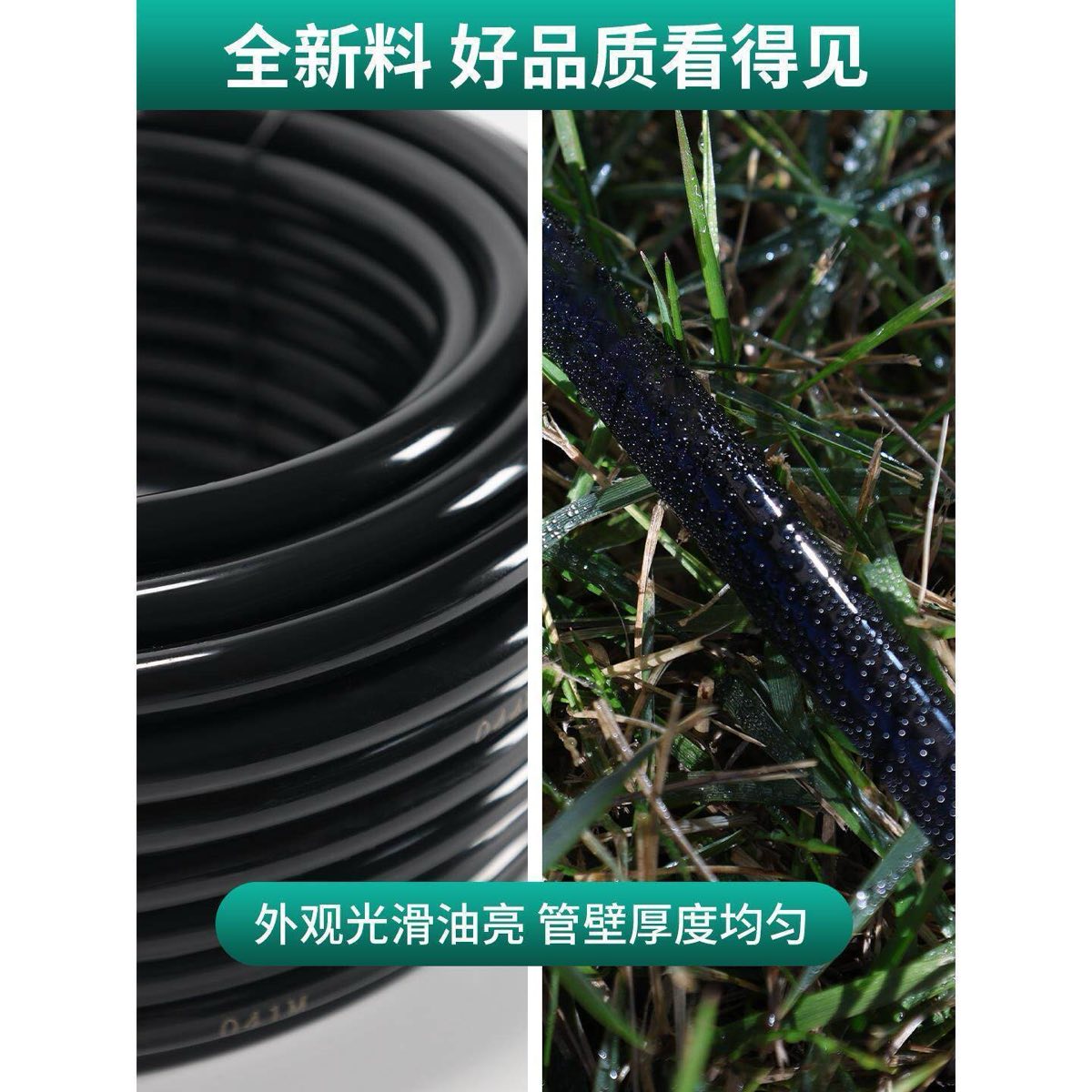

Close-up views of smooth black PE irrigation pipe

SIZE SELECTION

Different sizes are available to match the required flow, connection method and field distance. Tell us your layout and we can recommend a suitable combination.

06 / DRIPLINE

Built for mountain orchards and long planting rows

Integrated dripline delivers water directly to the root zone while reducing runoff on sloped terrain. Outlet spacing and discharge can be customized to suit tree spacing, crop demand and project design.

01Custom emitter spacing

Match outlet intervals to crop and tree spacing.

02Custom flow rate

Select discharge for soil, slope and irrigation time.

03Orchard-ready layout

Designed for precise irrigation across uneven terrain.

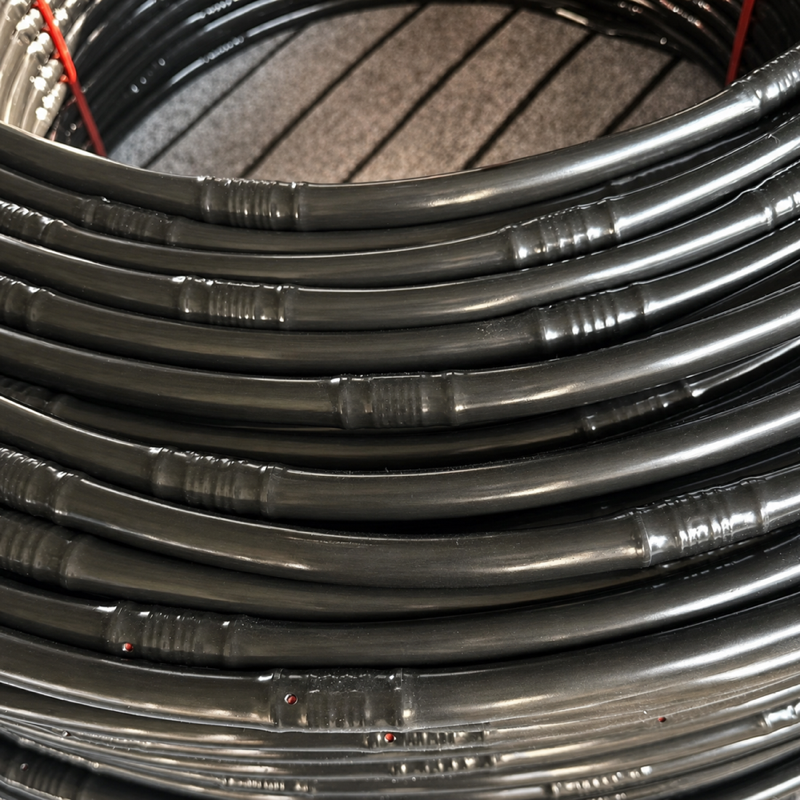

High clarity close-up of integrated black dripline — INTEGRATED EMITTER DETAIL

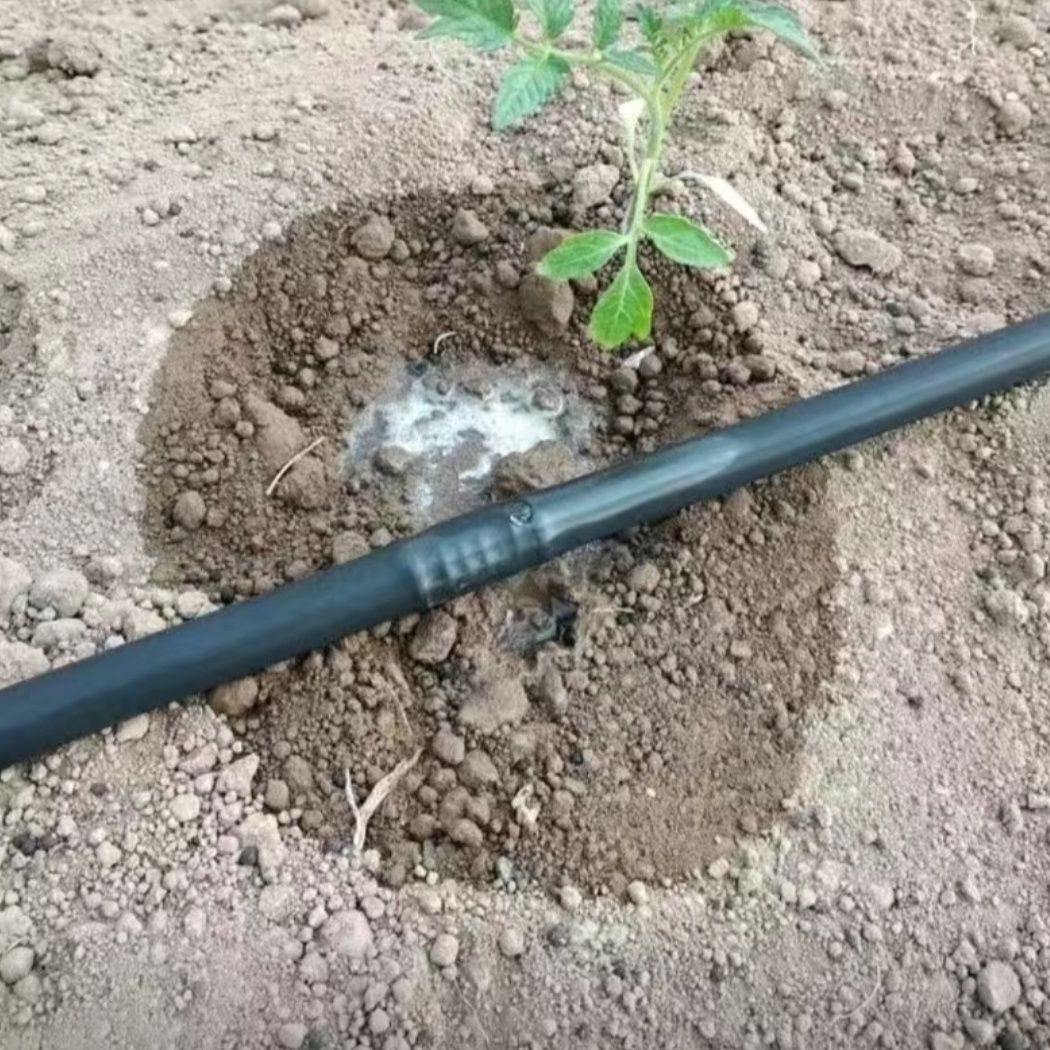

Dripline watering a plant in orchard soil — ROOT-ZONE APPLICATION

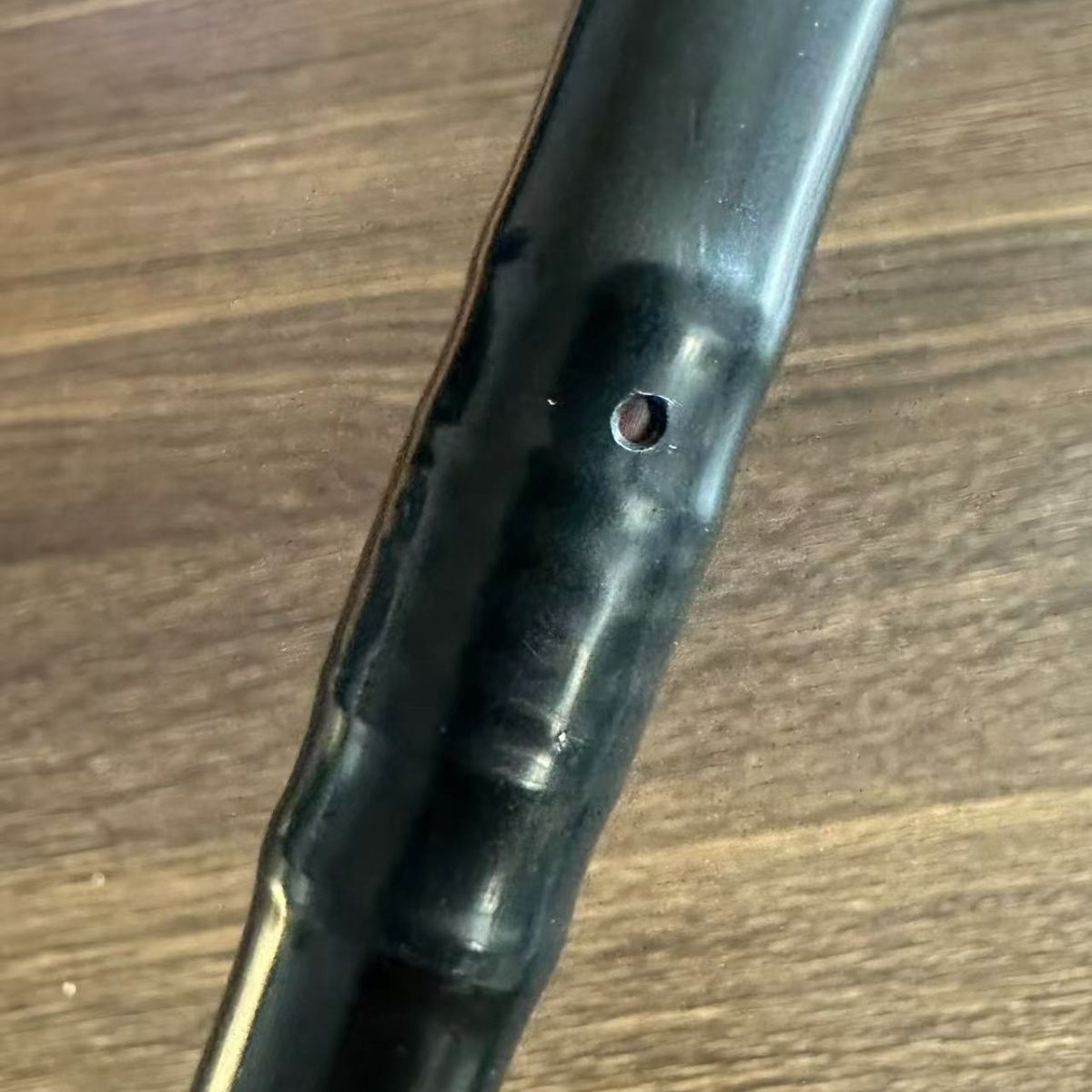

Close-up of a custom outlet hole on black dripline — CUSTOM OUTLET SPACING
