Drip Tape Series

DRIP TAPE PRODUCTION
01
01 / 01
FLAT EMITTER DRIP TAPE PRODUCTION

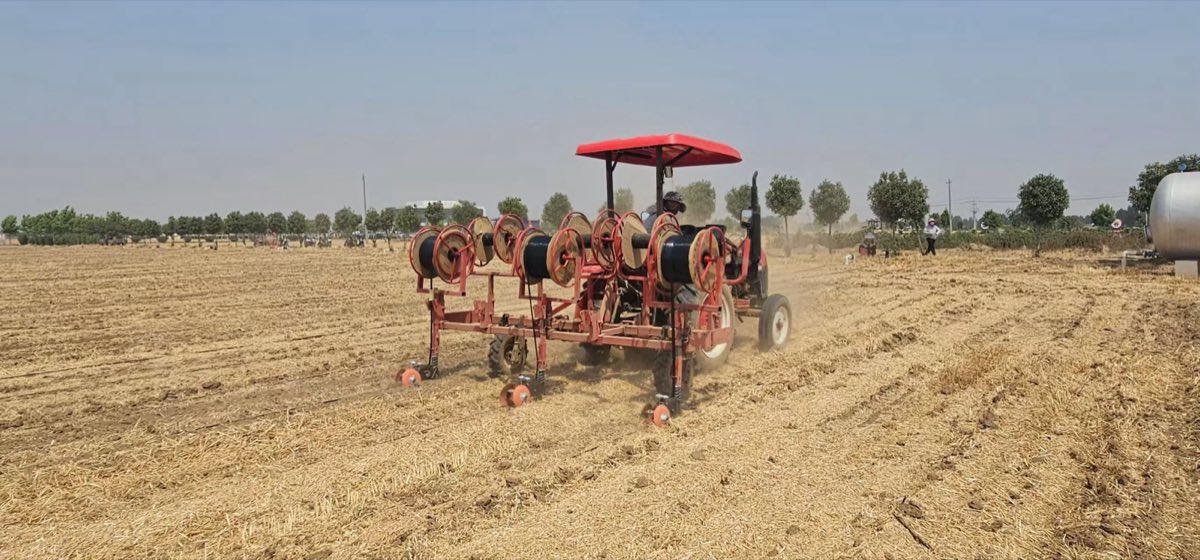

Drip tape installation equipment operating in a field
02
01 / 02

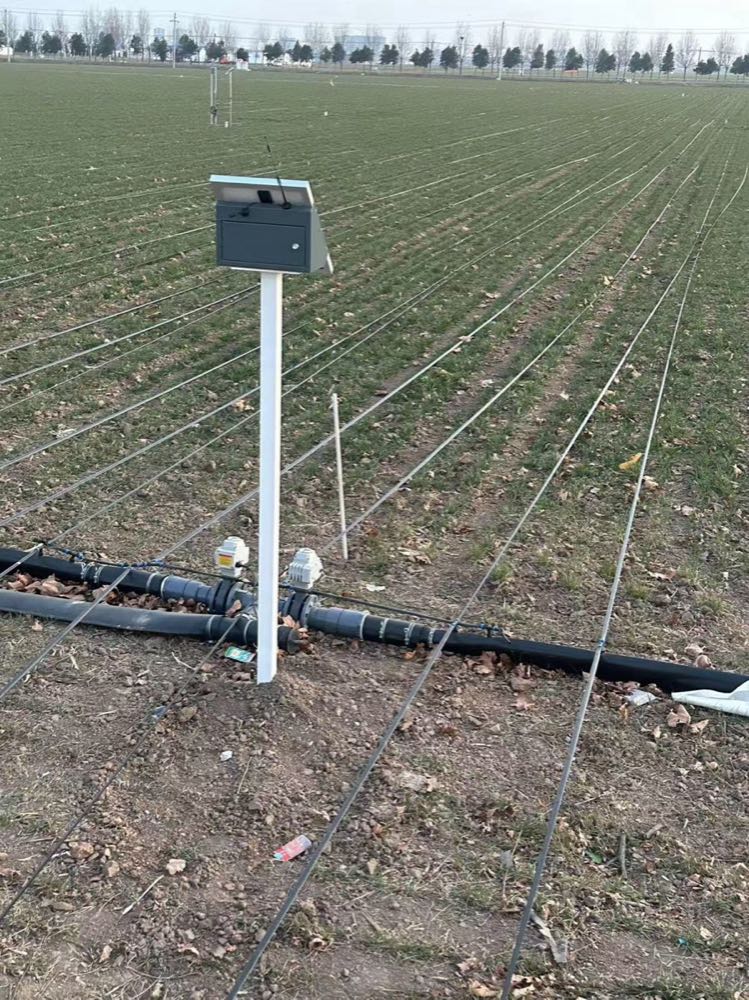

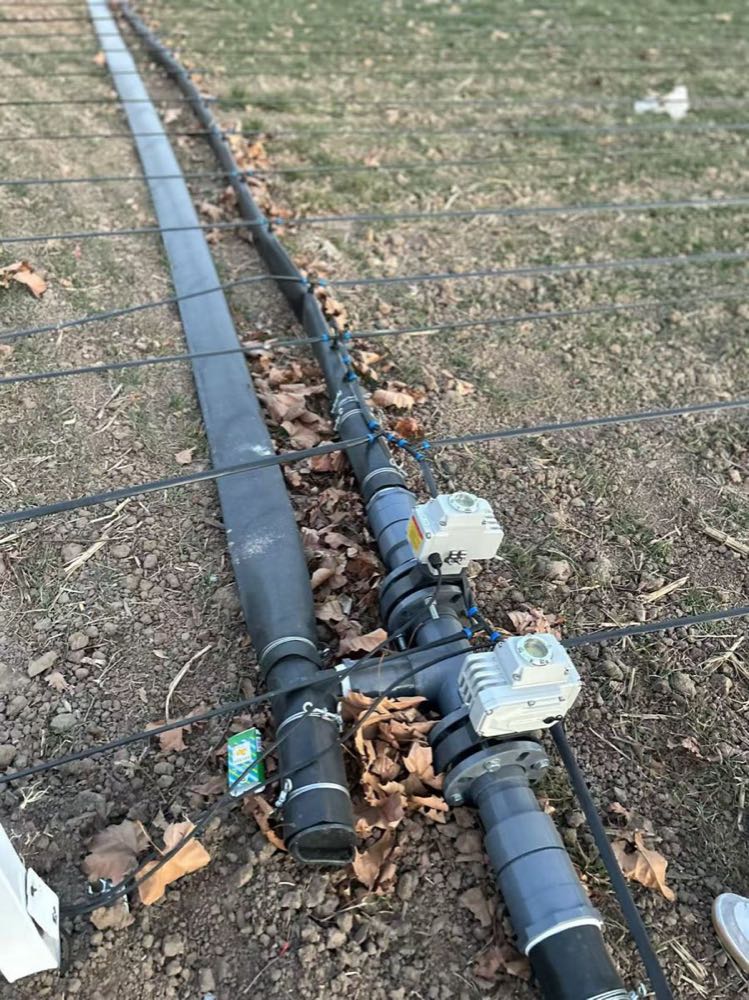

Drip irrigation lines and smart control equipment in a field
03
01 / 01

PRODUCT SPECIFICATIONS

Flat Emitter Drip Tape Specifications

SpecificationWeightWater Delivery DistanceLength
10 cm / 4 L19 kg60 m2,000 m
15 cm / Single-hole 3 L / Double-hole 4 L18 kg60 m2,000 m
20 cm / Double-hole 4 L18 kg80 m2,000 m
20 cm / Single-hole 1 L19 kg160 m2,000 m
20 cm / Single-hole 2 L18.5 kg100 m2,000 m
20 cm / Single-hole 3 L18 kg80 m2,000 m
30 cm / Double-hole 4 L18 kg100 m2,000 m
30 cm / Single-hole 1.38 L19 kg230 m / 260 m2,000 m
30 cm / Single-hole 2 L18.5 kg130 m2,000 m
30 cm / Single-hole 3 L18 kg100 m2,000 m

Labyrinth Drip Tape Specifications

SpecificationEmitter SpacingWeightLength
Black 8-hole / Black 5-hole15 cm / 20 cm16 kg2,000 m
Blue 8-hole / Blue 5-hole15 cm / 20 cm16 kg2,000 m
Silver 8-hole / Silver 5-hole15 cm / 20 cm16 kg2,000 m
Red 8-hole / Red 5-hole15 cm / 20 cm16 kg2,000 m
Black 8-hole / Blue 8-hole20 cm8 kg1,000 m

COMPATIBLE ACCESSORY

PE Branch Pipe for Drip Tape

01
PE branch pipe connected to drip irrigation lines02

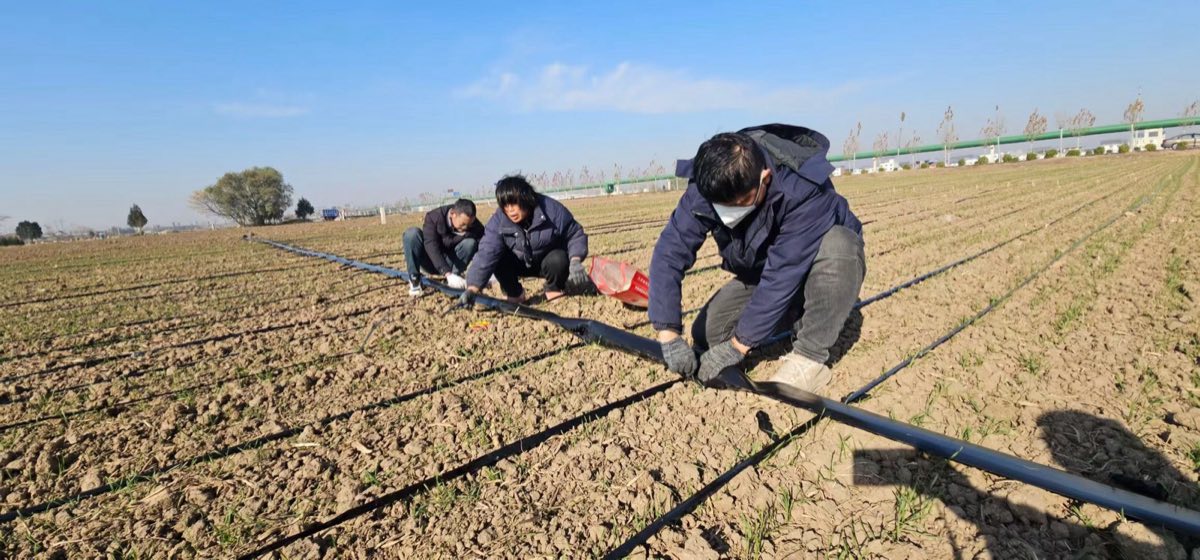

Team installing PE branch pipe in a field03

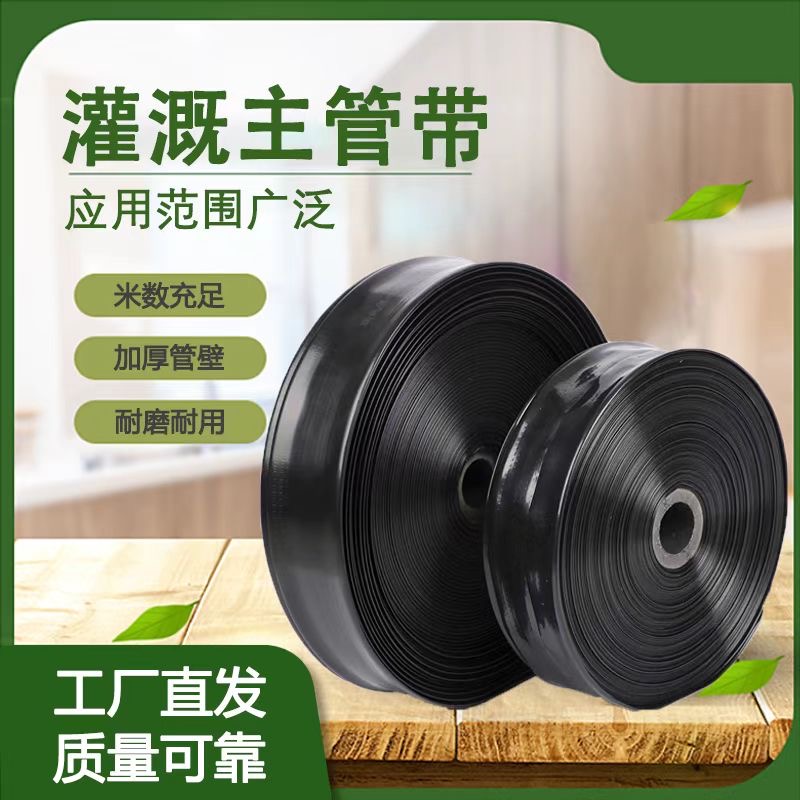

PE irrigation main pipe rolls04

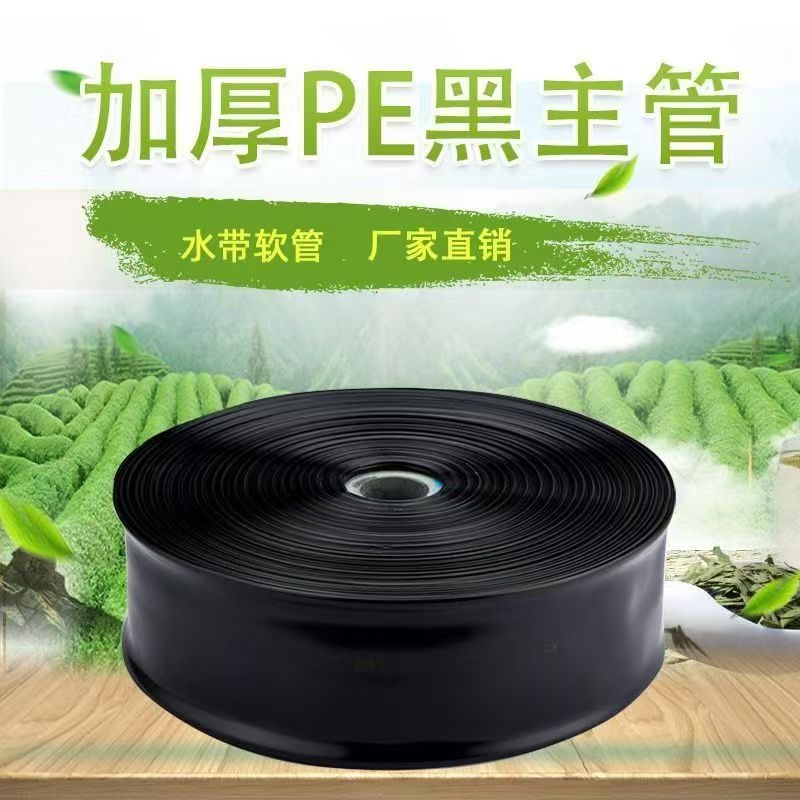

Thickened PE black main pipe roll05

The PE hose is mainly used as branch pipe for drip tapes and can be connected to drip tapes via small fittings. Multiple wall thicknesses and working pressure options are available. Thickness and dimensions can be customized. It is manufactured from polyethylene (PE).

FITTINGS & INSTALLATION TOOLS

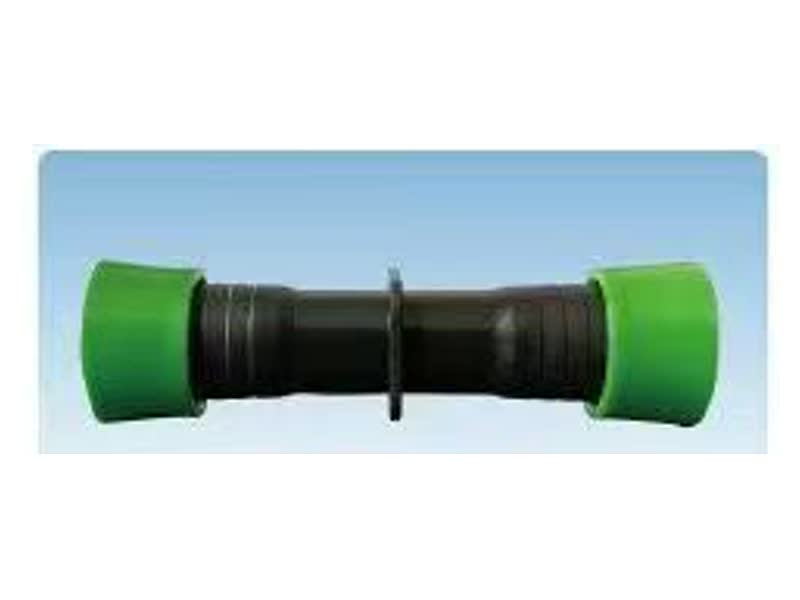

Pull-ring Straight Connector
01Pull-ring Straight Connector

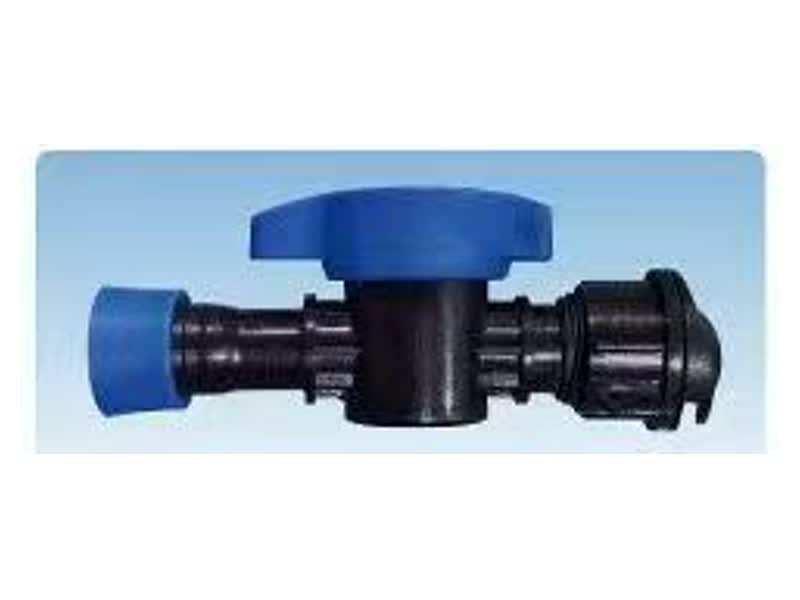

Layflat Hose Pull-ring Take-off Valve
02Layflat Hose Pull-ring Take-off Valve

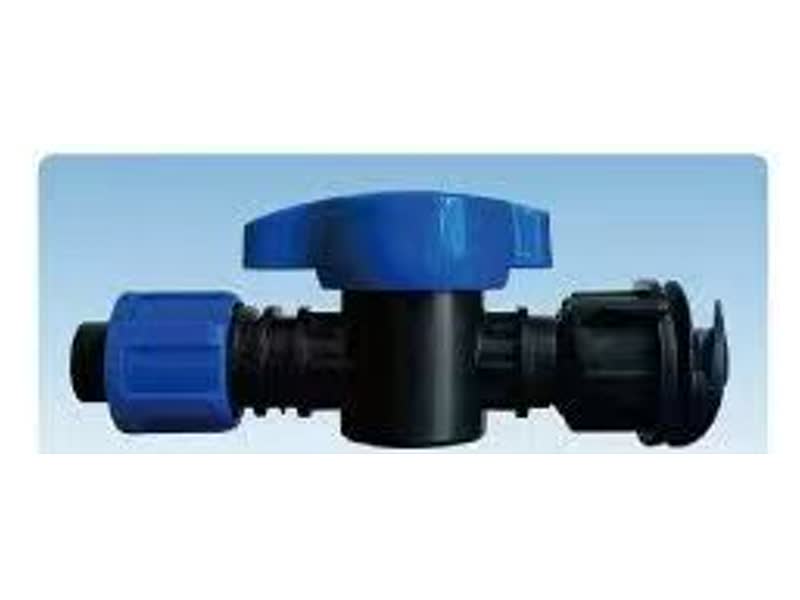

Layflat Hose Locknut Take-off Valve — Blue
03Layflat Hose Locknut Take-off Valve — Blue

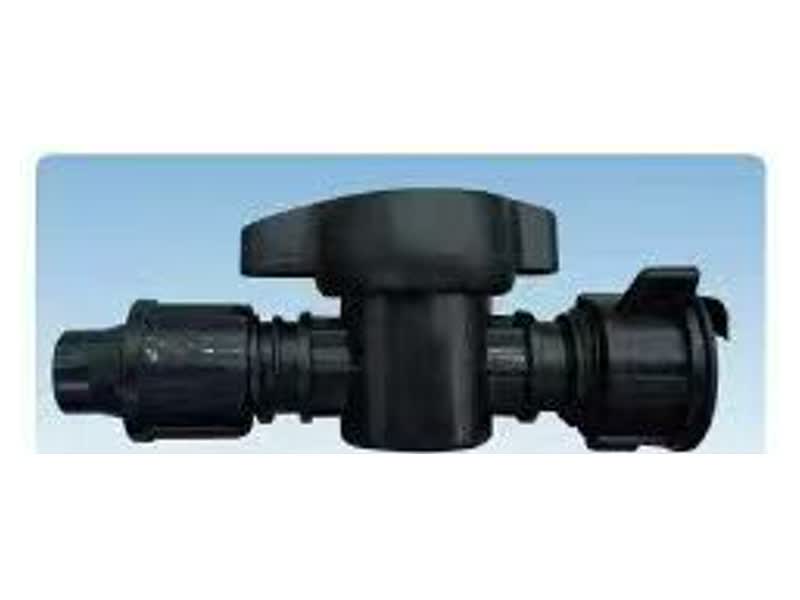

Layflat Hose Locknut Take-off Valve — Black
04Layflat Hose Locknut Take-off Valve — Black

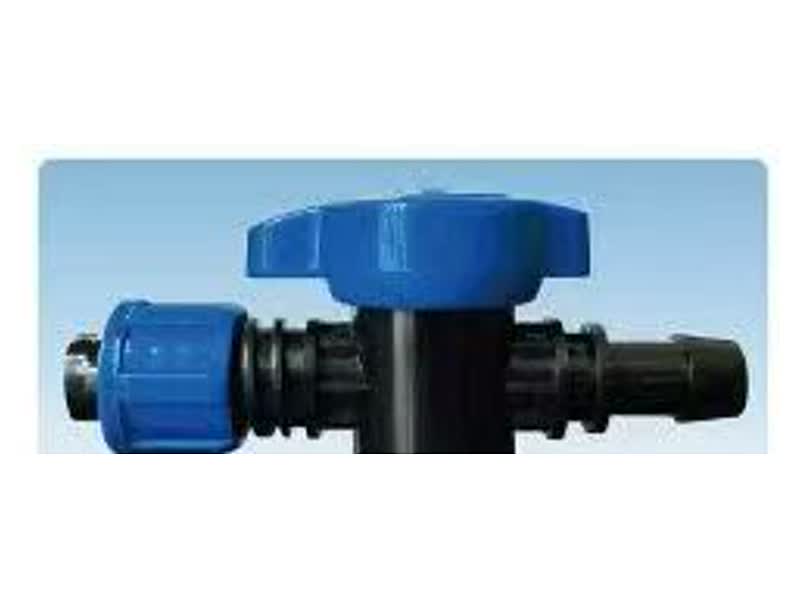

Rigid Pipe Locknut Take-off Valve
05Rigid Pipe Locknut Take-off Valve

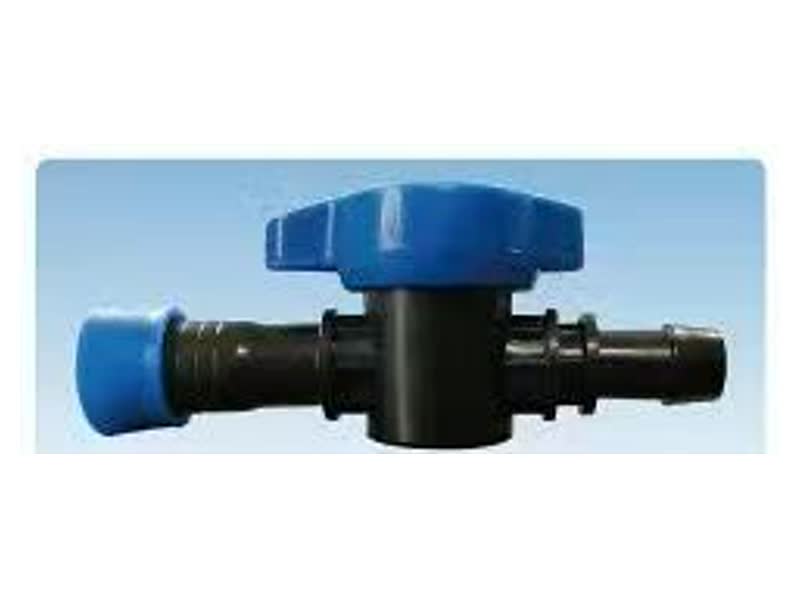

Rigid Pipe Pull-ring Take-off Valve
06Rigid Pipe Pull-ring Take-off Valve

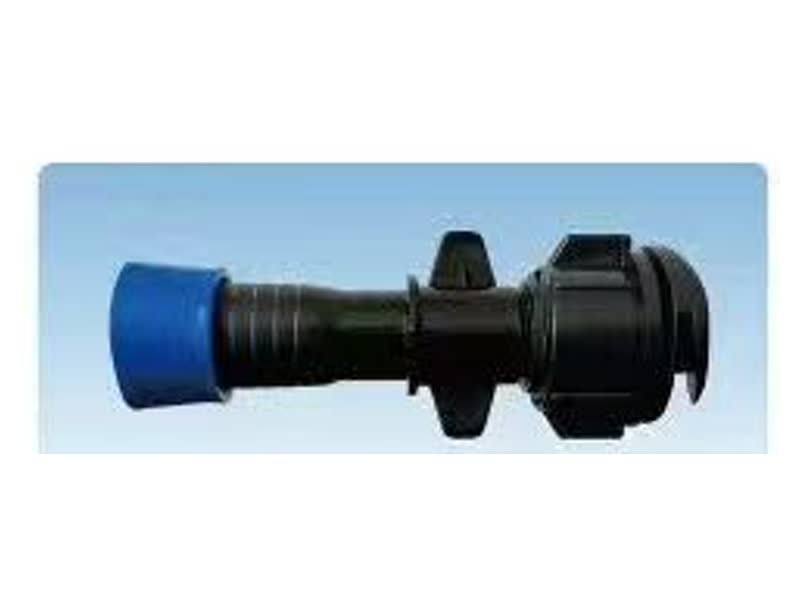

Layflat Hose Pull-ring Take-off
07Layflat Hose Pull-ring Take-off

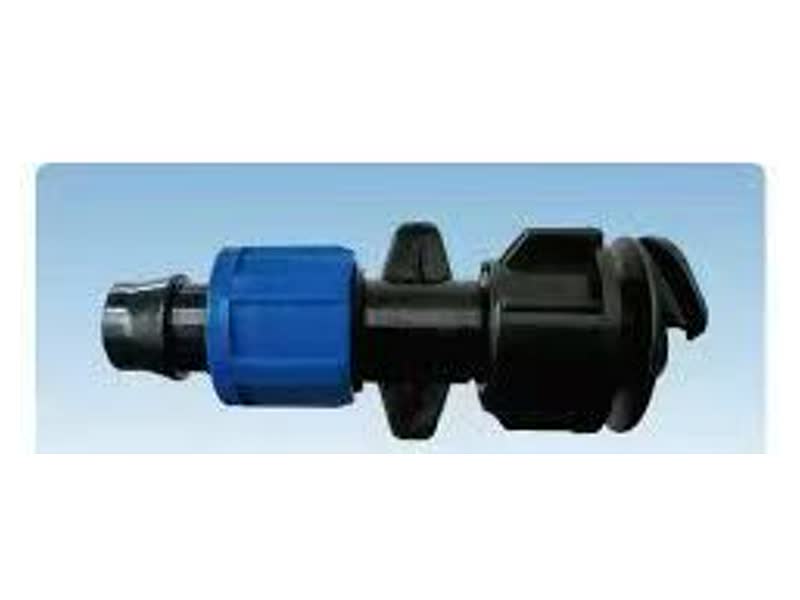

Layflat Hose Locknut Take-off — Blue
08Layflat Hose Locknut Take-off — Blue

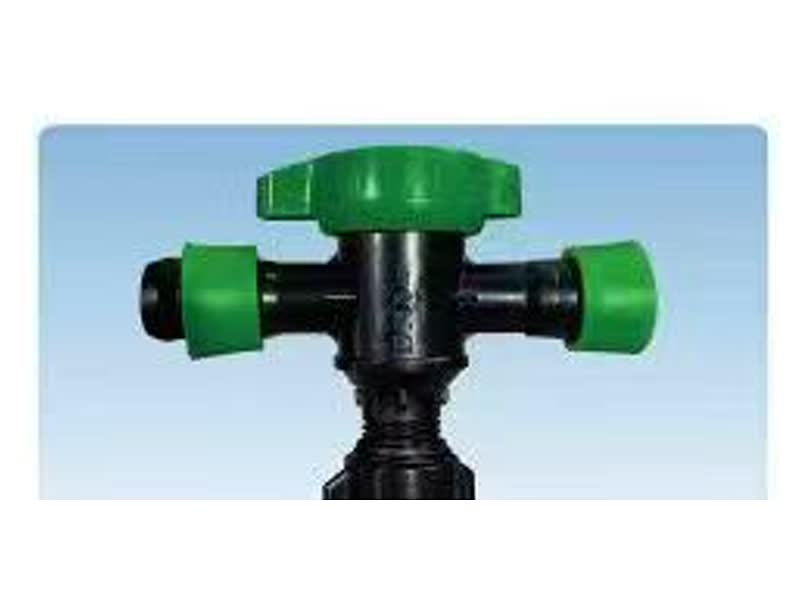

Layflat Hose Pull-ring Three-way Valve
09Layflat Hose Pull-ring Three-way Valve

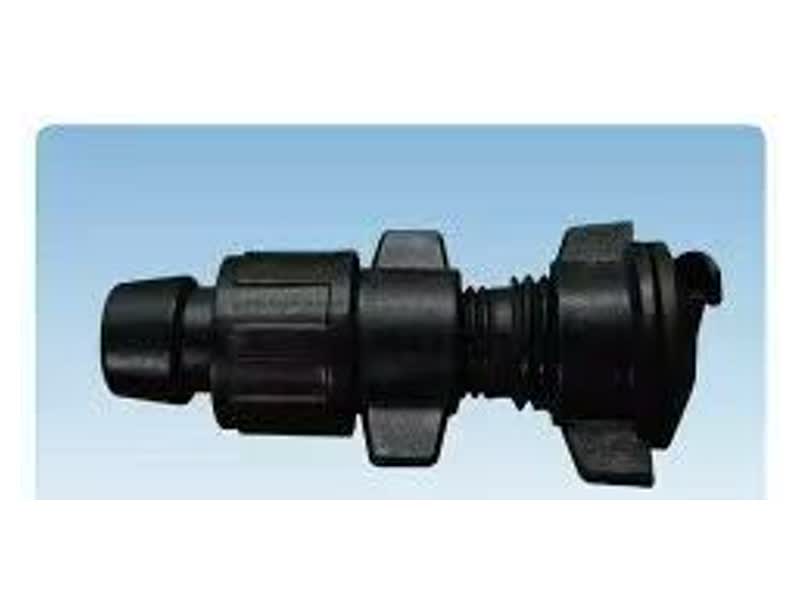

Layflat Hose Locknut Take-off — Black
10Layflat Hose Locknut Take-off — Black
Installation Tool 01
11Installation Tool 01

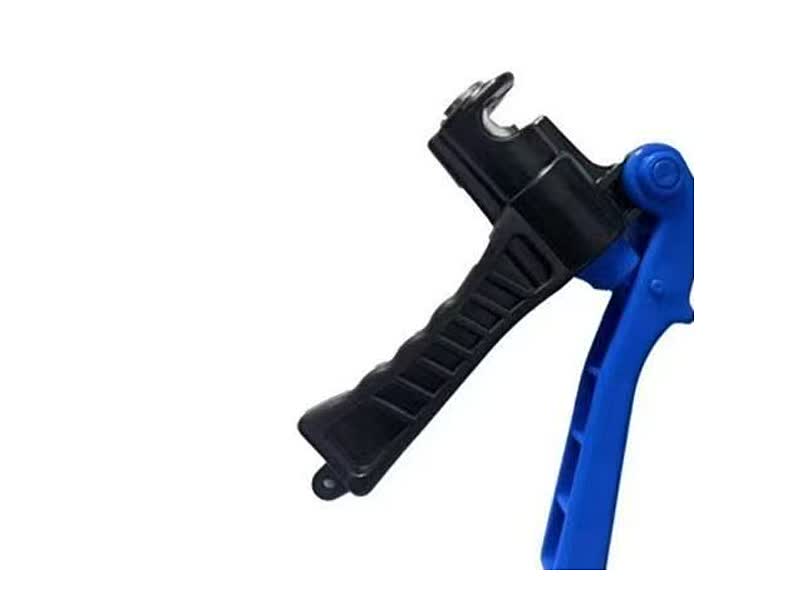

Installation Tool 02
12Installation Tool 02

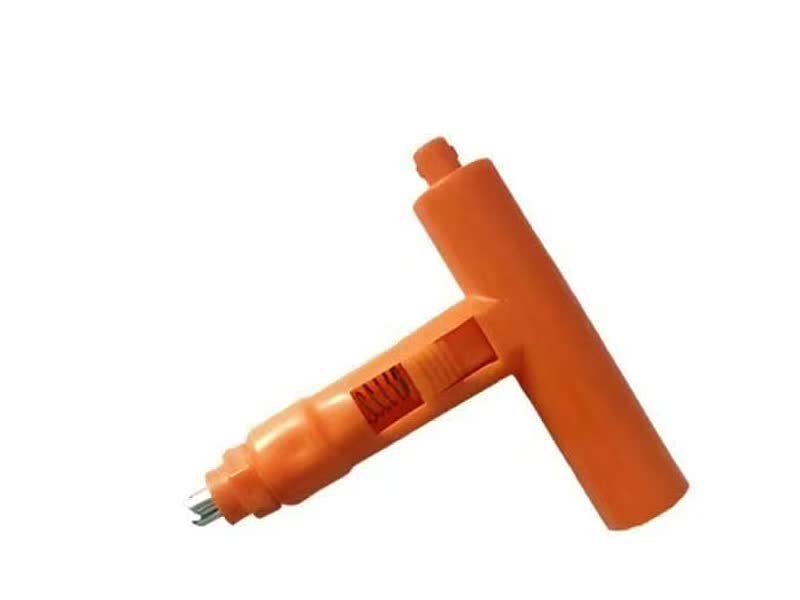

Installation Tool 03
13Installation Tool 03

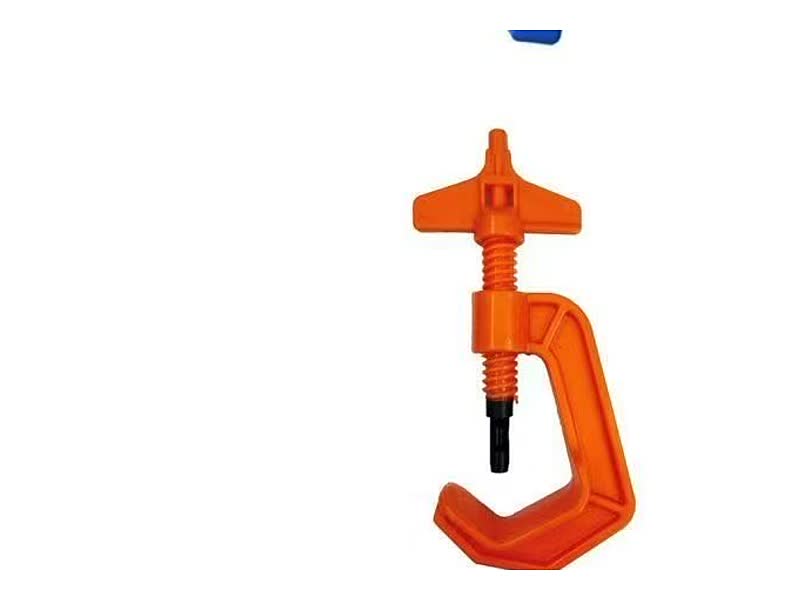

Installation Tool 04
14Installation Tool 04

INSTALLATION VIDEOS

Installation Video 01
Installation Video 02

FLEXIBLE BRANCH LINE

Pre-perforated Flexible Layflat Hose

PRODUCTION DISPLAY

01Flexible Layflat Hose Production
02Flexible Layflat Hose Production
03Flexible Layflat Hose Production

FITTINGS PRODUCTION

01Flexible Hose Fittings Production
02Flexible Hose Fittings Production
03Flexible Hose Fittings Production

COMPATIBLE FITTINGS

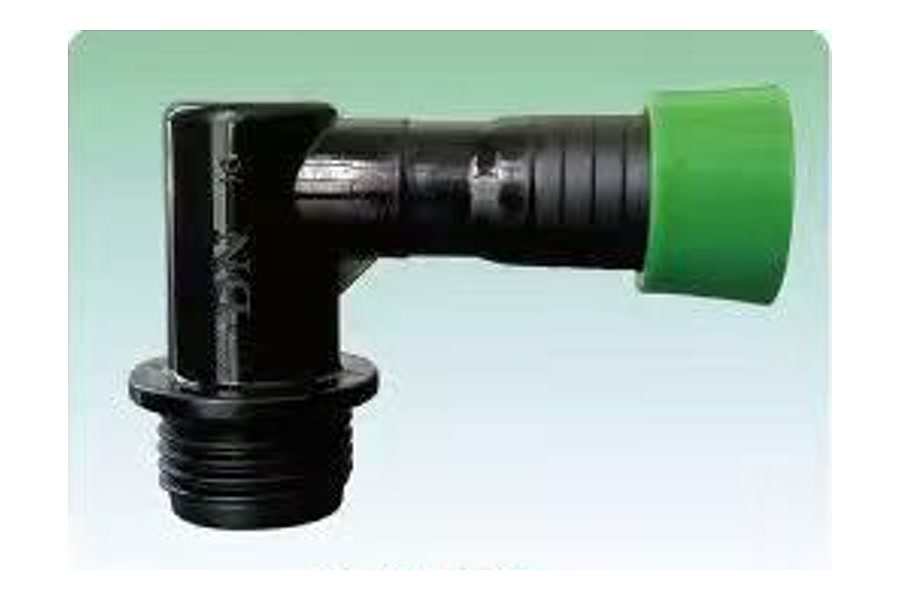

Male-thread Elbow
01Male-thread Elbow

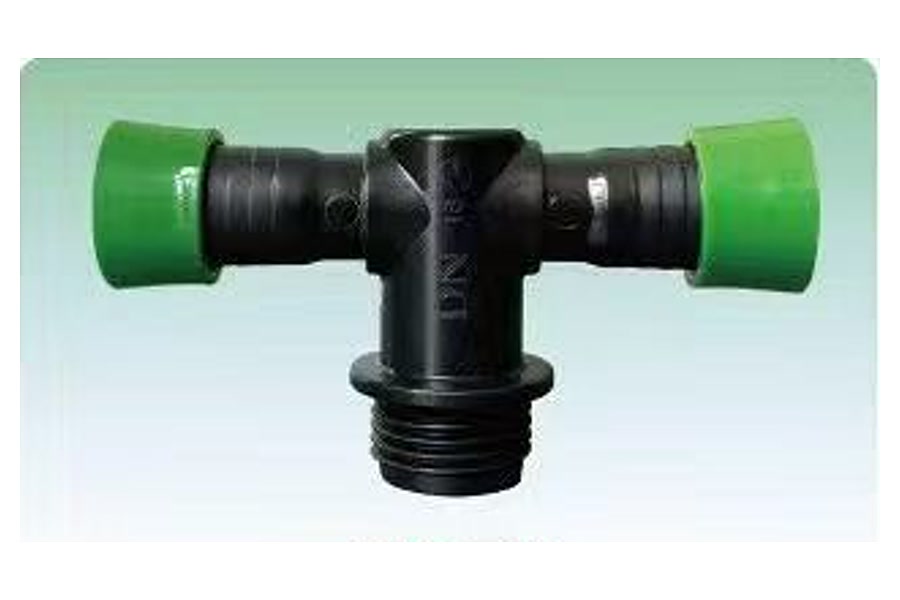

Male-thread Tee
02Male-thread Tee

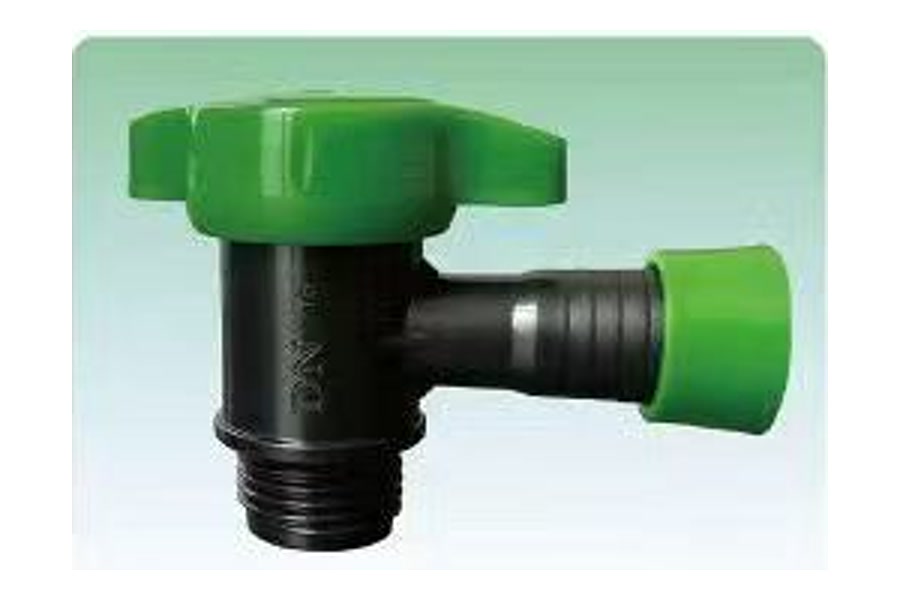

Male-thread Elbow Valve
03Male-thread Elbow Valve

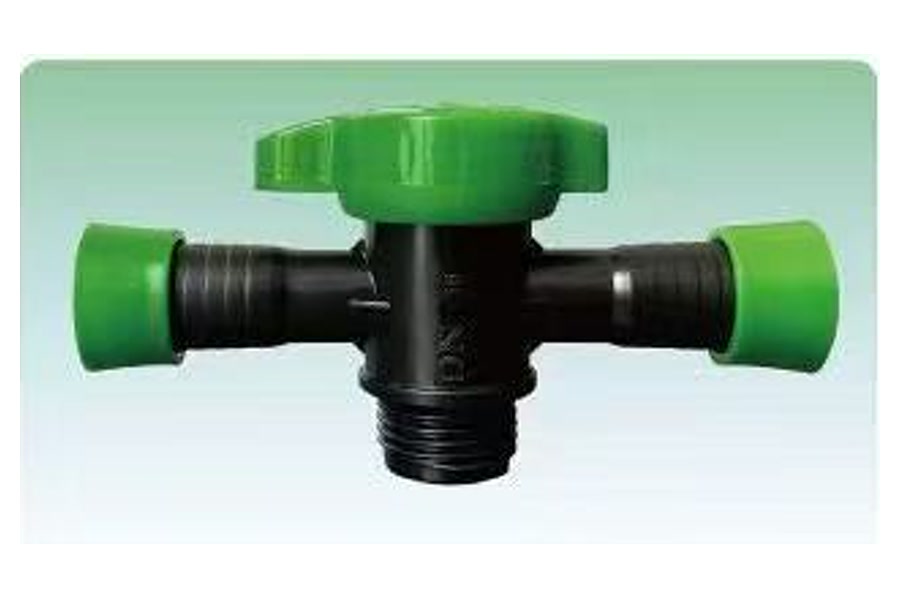

Male-thread Three-way Valve
04Male-thread Three-way Valve

INSTALLATION DISPLAY

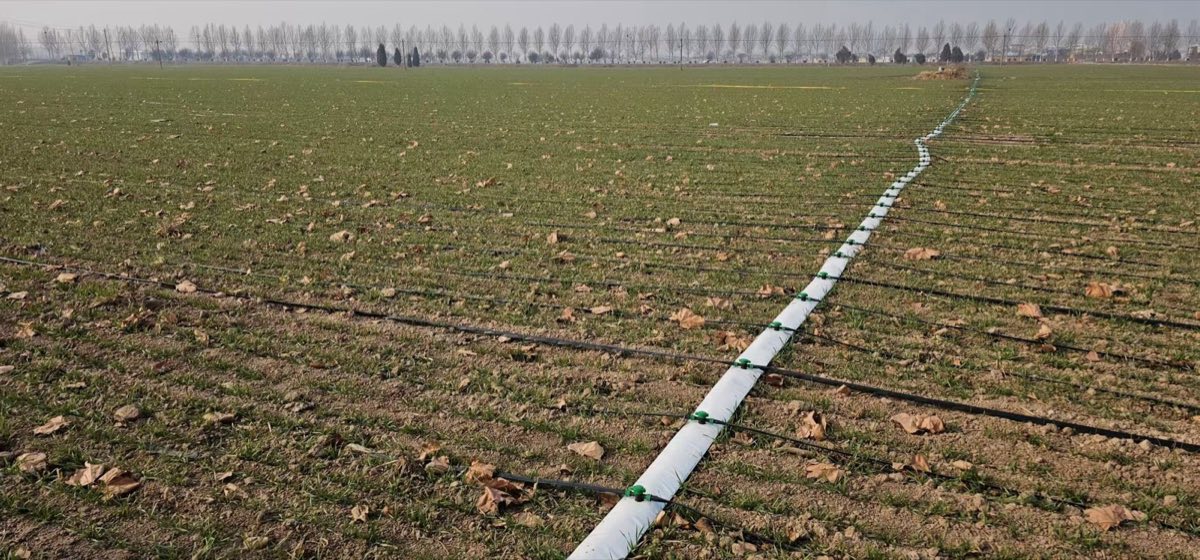

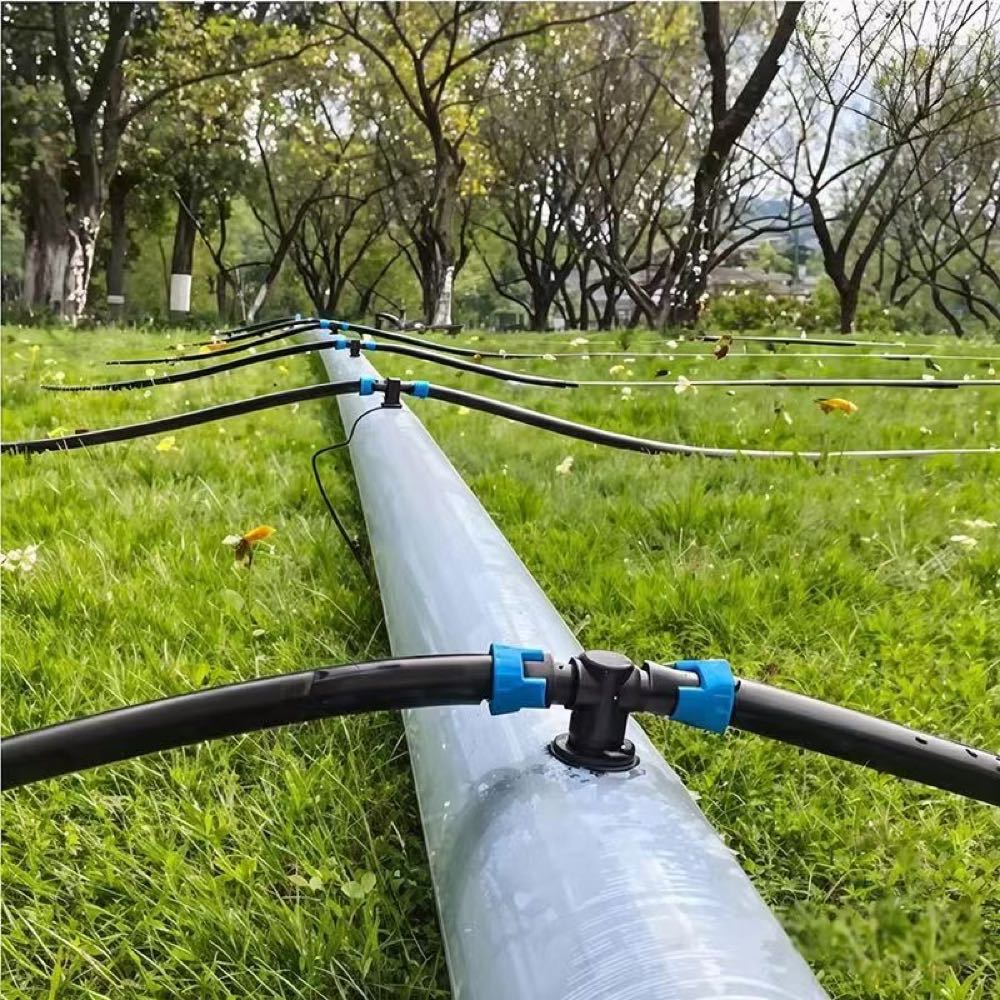

Pre-perforated flexible layflat hose connected to drip irrigation lines
01Field Installation

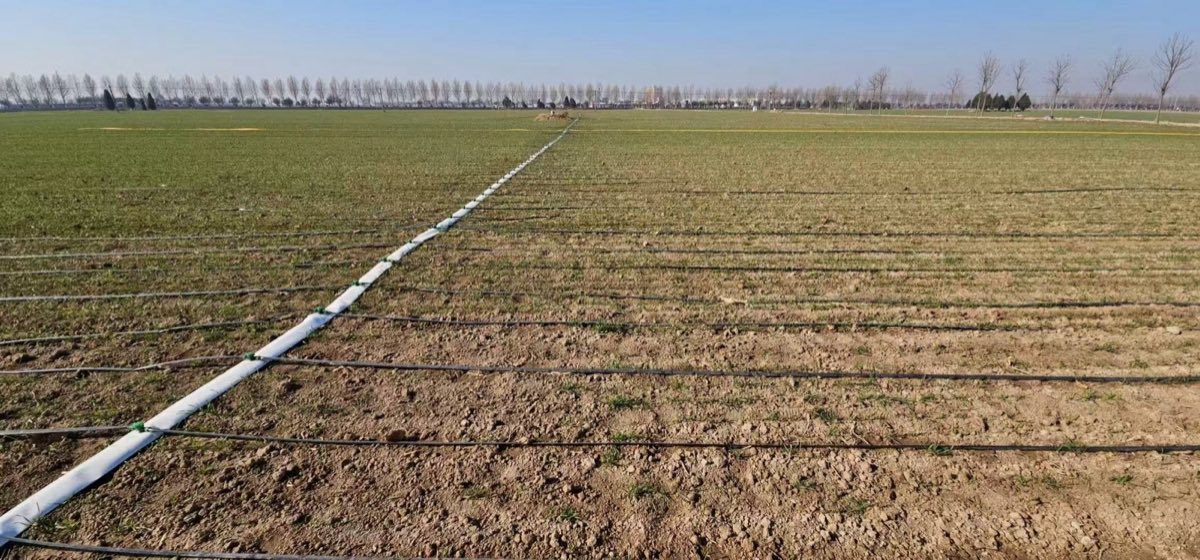

Pre-perforated flexible layflat hose installed across a field
02Field Installation

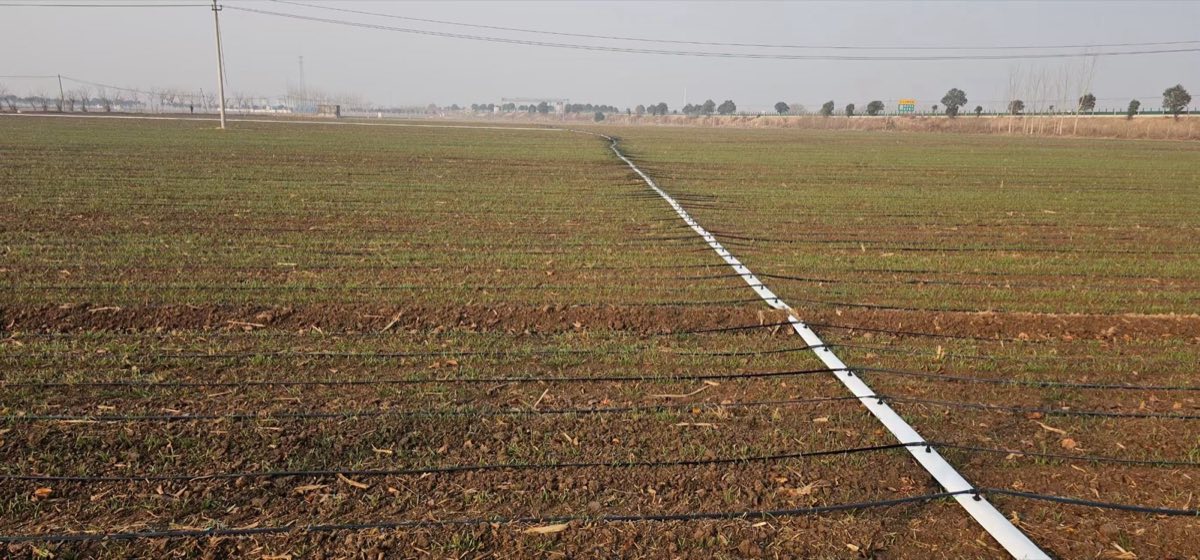

Flexible layflat hose branch line installation in farmland
03Field Installation
Field installation of pre-perforated flexible layflat hose
04Field Installation
05Installation Video

Sizes and hole spacing of pre-perforated flexible layflat hose can be customized. Multiple wall thicknesses and working pressures are available. It acts as branch lines for drip and sprinkler irrigation. Made of woven PE with white outside and black inside, the built-in PU lining prevents moss formation. It features great UV resistance and anti-aging properties.
